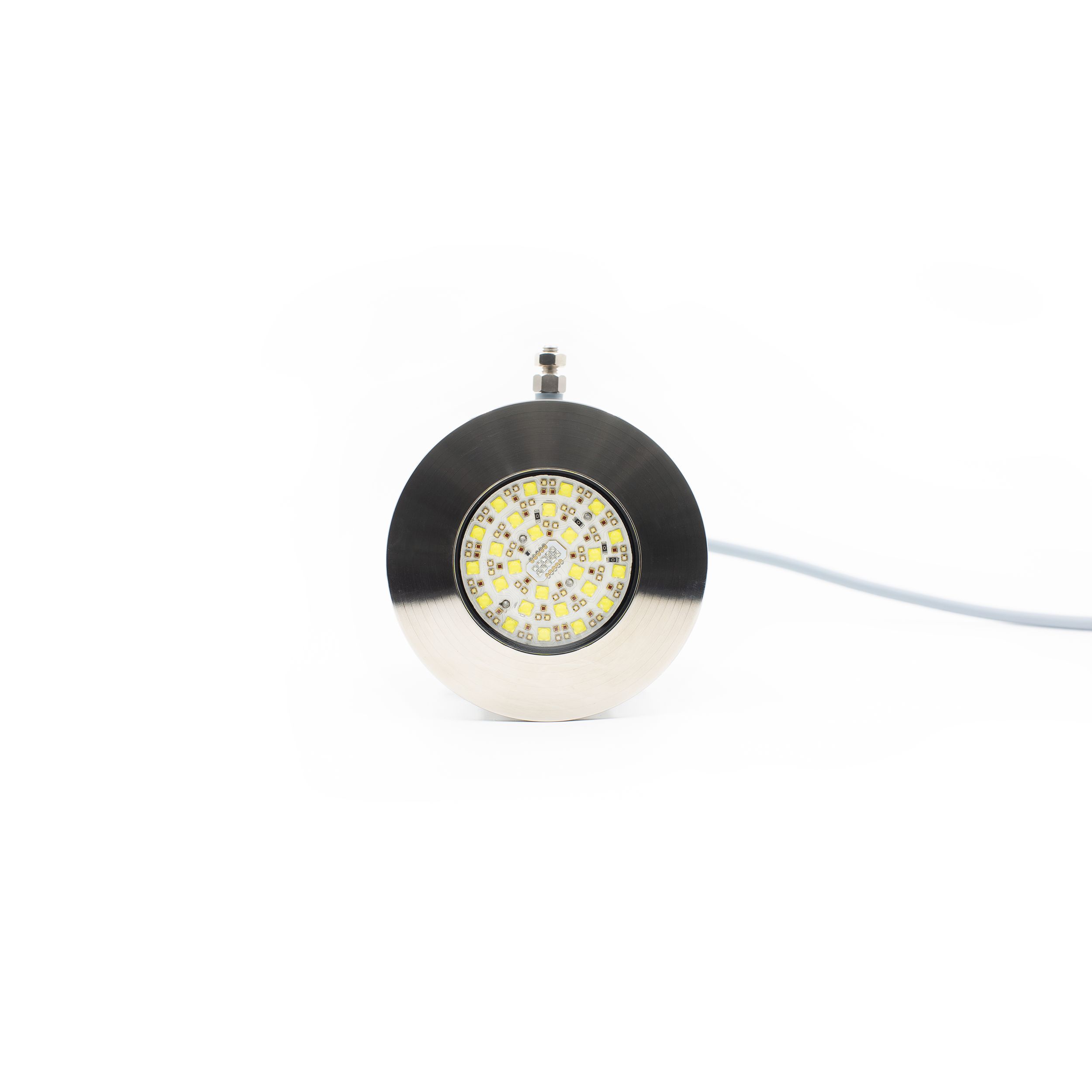

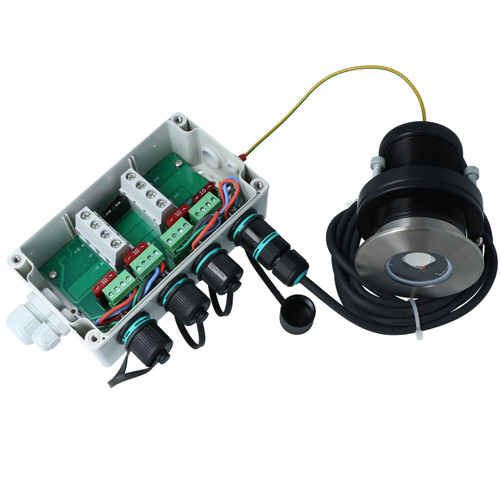

Overview Specifications Product Videos Reviews PDF Product Description Introducing the UWL QTS-100 Low Voltage Underwater Light The UWL QTS-100 - Underwater Light is the perfect marine lighting solution for boats up to 90' feet in length. With its impressive 10,000 at 12/24V or 14,000 lumens at 24V of light output and 140° beam angle, this underwater light provides excellent illumination for nighttime boating. Upon request, a Junction Box can be provided for enhanced connectivity. Exchangeable Inserts for Easy Servicing The QTS-100 LED Underwater Light features exchangeable inserts, allowing for easy servicing and upgrades without the need to haul your boat out of the water. With a 3"/76mm hole cutout, upgrading your existing lighting fixtures has never been easier. The housing design, with zero failures in 25 years of production, ensures a high-quality and durable product. Max Hull Thickness: 3 9/64” (80mm) Length of Fixture: 5.5” (140mm) Diameter of Fixture: 4“ (100mm) Profile (height) of Fixture: 3/16” (5mm) Removal Space Required: 6 11/16” (170mm) Total Weight: 3.7 lbs (1.7 kgs) Cable Length: 9’ (3M) Hole Cut-out: 3” (76mm) Perfect Choice for Larger Boats Designed for boats up to 90' feet in length, this underwater light is the ideal choice. It comes in Cool White and is easy to control with an On/Off switch. The integrated driver requires the QTD-JUNCTION HUB (the Junction Box is a Required Part) for convenient installation. With reverse polarity protection and over-temperature thermal roll-back protection, your safety is ensured while enjoying your time on the water. Durable Construction with Long Life Expectancy The QTS-100 LED Underwater Light has a life expectancy of 40,000 hours, providing years of reliable performance. The growth-resistant lens prevents blockage from debris, ensuring consistent light output. With a 9’ (3M) cable length, you have flexibility in installation to place the light where it's needed most. Quick and Easy Installation The QTS-100 LED Underwater Light comes with all the necessary mounting and connection hardware, making installation quick and easy. Whether you're upgrading existing lighting fixtures or installing a new underwater light, the QTS-100 is the perfect choice to elevate your boating experience. Highlights: Impressive 10,000/14,000 lumens of light output 140° beam angle for excellent illumination Exchangeable inserts for easy servicing and upgrades Designed for boats up to 90 feet in length Cool White or Blue color available Integrated driver with On/Off switch Reverse polarity and over-temperature protection 40,000 hours of life expectancy Growth-resistant lens and 9’ (3M)' cable length Quick and easy installation with included hardware Junction Box available upon request for enhanced connectivity Specifications Operating Voltage 24V Light Type LED Operating Voltage 12-24V Lumens 14000Lm Installation Flush Mount Light Color Cool White Color Temperature 6500K Product Type Underwater Light Lens Type Glass Lens Product Material Aluminum Product Material Titanium Power Consumption 96W Product Color N/A Finish N/A Amperage 4A Installation Throught Hull Flush Mount PDF Data Product Videos Videos Hide Videos Show Videos UWL Product Overview We have been serving the local boating community in south Flor... How far can you expect the light beam to reach from an UWL underwater LED light? Best Positioning on Hull Colors of the cables - Red is positive/black is negative correct? Can I mount underwater lights on the bottom of the hull facing down? Custom Field Operating Voltage 24V Light Type LED Operating Voltage 12-24V Lumens 14000Lm Installation Flush Mount Light Color Cool White Color Temperature 6500K Product Type Underwater Light Lens Type Glass Lens Product Material Aluminum Product Material Titanium Power Consumption 96W Product Color N/A Finish N/A Amperage 4A Installation Throught Hull Flush Mount Product Reviews Write a Review Write a Review × UWL UWL - QTS 100 Low Voltage Underwater Light - GRP, Titanium, Flush Mount Rating * Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best) Name Email * Review Subject * Comments * Product PDF
