Overview

The Hella Marine Slimline Round Courtesy Lamp is a low-profile LED courtesy light for interior and exterior areas where you want usable light at foot level without harsh glare. It is completely sealed to IP67 and is offered in dedicated 12V DC and 24V DC versions. Mounting depth is 13 mm, with an outside diameter of 72 mm when fitted with the stainless rim or 75 mm with the plastic rims.

Light colours include white, warm white, red, and blue, with rim options in 316 stainless steel, black plastic, or white plastic. The lens is made from UV resistant enhanced impact acrylic, and the lamp is pre-wired with 120 mm of tinned marine cable.

Power consumption is under 0.5 W (under 0.042 A at 12V or under 0.02 A at 24V), so it suits boats that leave courtesy lighting on for long evenings at the dock or during night passages.

Key features

• IP67 completely sealed construction for washdowns and wet lockers
• Dedicated 12V DC or 24V DC versions to match common onboard DC systems
• Very low power draw: under 0.5 W (under 0.042 A at 12V or under 0.02 A at 24V)
• Low-profile fit with 13 mm mounting depth
• Face diameter: 72 mm with stainless rim, 75 mm with plastic rims
• UV resistant enhanced impact acrylic lens with rim options in 316 stainless steel, black plastic, or white plastic
• Pre-wired with 120 mm of tinned marine cable for straightforward splicing into existing lighting circuits
• Polarity conscious wiring: reverse polarity will stop operation but will not damage the lamp
• Can be dimmed using Hella marine Dimmer 5XA 998 572-001

Variants

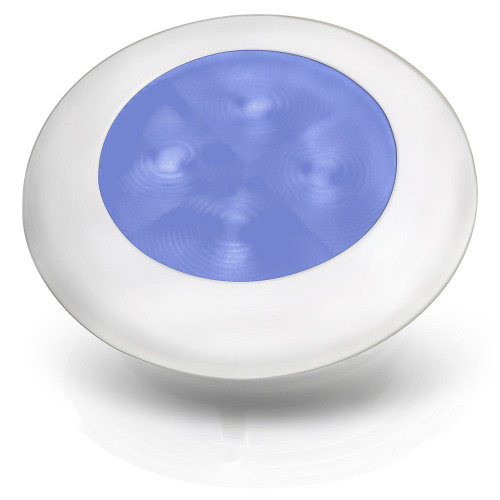

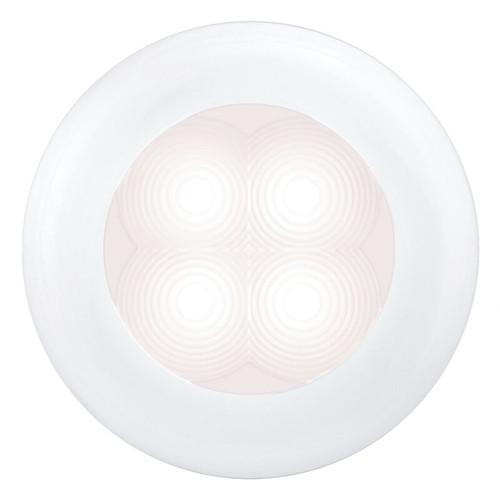

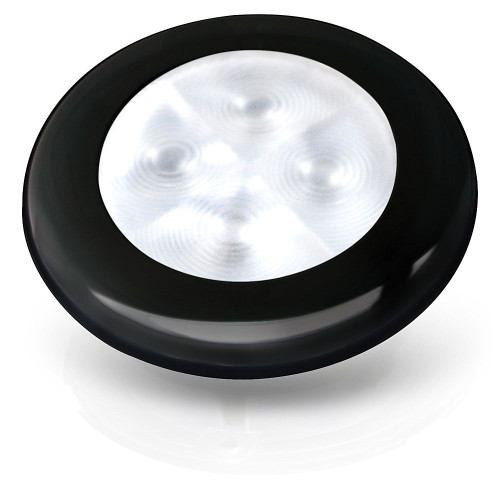

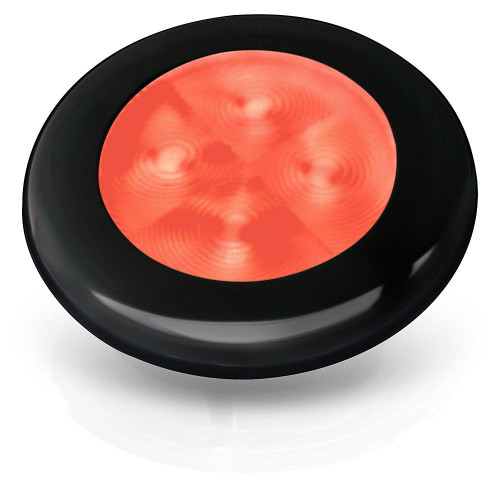

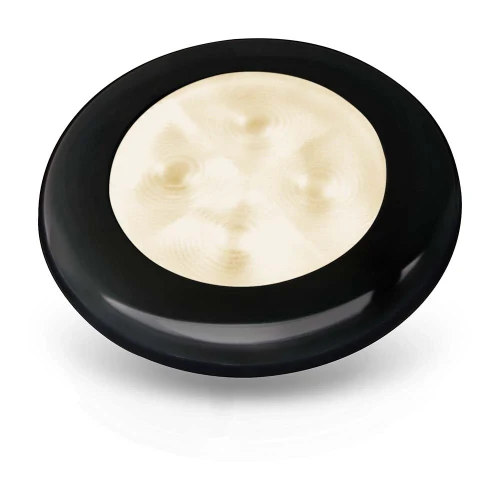

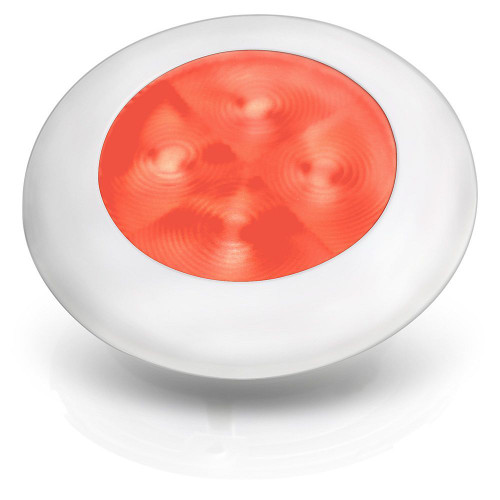

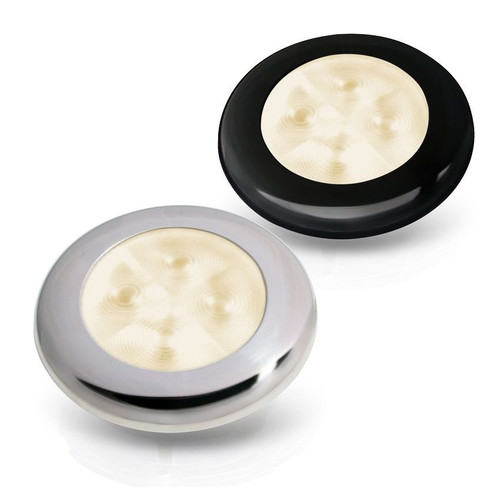

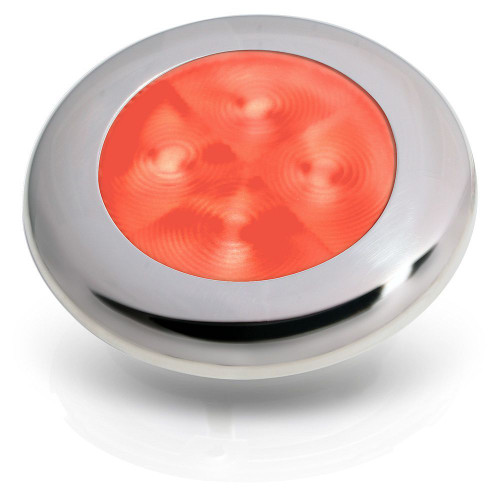

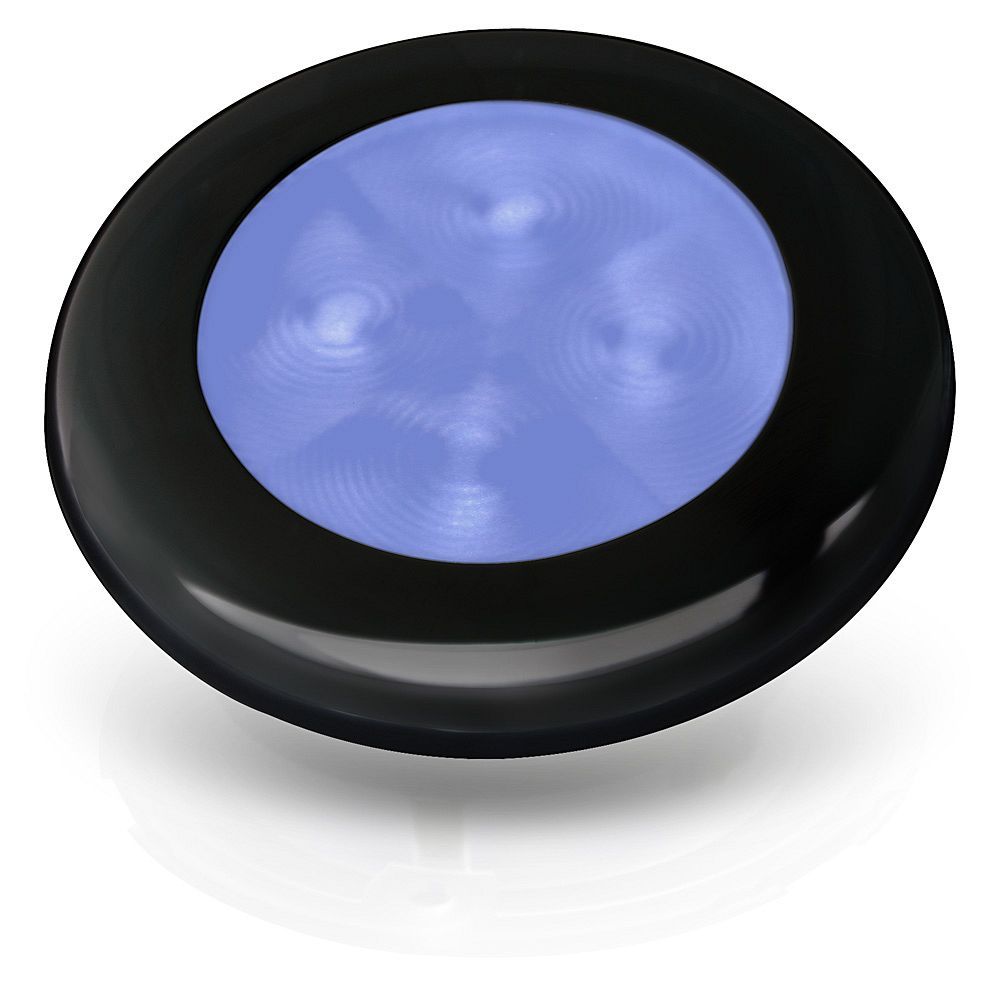

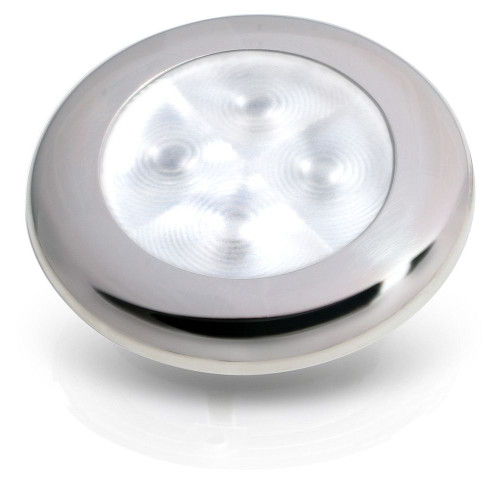

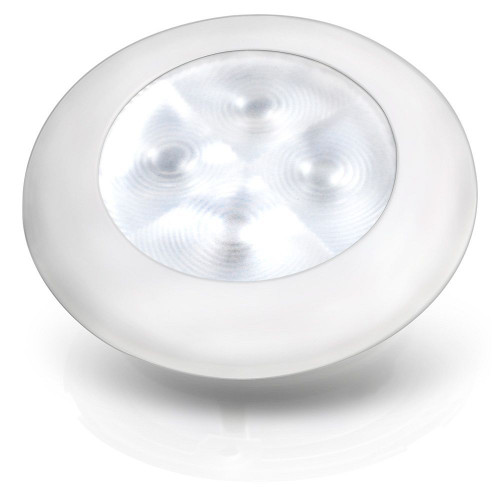

This lamp is offered with different LED light colours (blue, red, warm white, and white), rim finishes (black plastic, white plastic, or silver stainless steel), and supply voltage (12V or 24V DC).

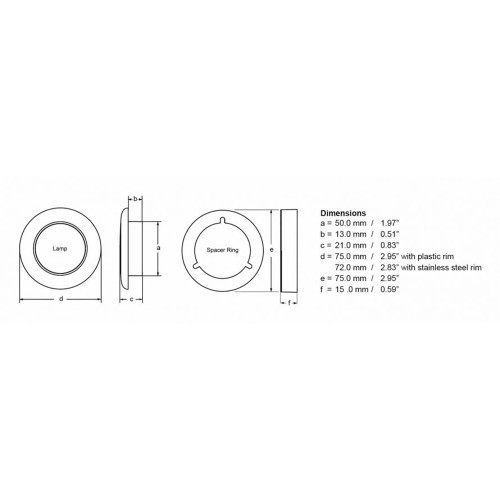

Across the range, the form factor stays the same slim round style with a 13 mm mounting depth and screw mounting. The outside diameter changes slightly with the trim: 72 mm with the stainless rim and 75 mm with the plastic rims.

Compatibility and fit

These are compact round courtesy lamps intended for surface screw mounting on a flat panel. Allow space behind the mounting surface for the 13 mm depth and for cable routing. If you are replacing an existing Slim Line round lamp, matching the trim type helps keep the footprint consistent.

Use the trim material as a practical fit check: stainless gives the slightly smaller 72 mm outside diameter, while the plastic trims sit at 75 mm.

Installation and setup

Mount the lamp on a flat surface using the gasket provided, then fasten it with the supplied screws. The lens can be used as a template for drilling the mounting holes, which is handy when lining up a row of step lights along a companionway or cockpit side.

Make connections with marine-grade practices: soldered joints and heat shrink sealing help keep corrosion out of the splice, especially in cockpit lockers and transoms.

Electrical and system integration

Match the lamp voltage to your DC system (12V or 24V). The unit is polarity conscious, so confirm positive and negative before final heat shrinking the connections.

Protect the circuit with a fuse rated at 2 A maximum. The lamp can be tied into an existing courtesy or cabin lighting circuit, and it supports dimming when used with a compatible Hella marine dimmer.

Use on board

This style of light is a good match for companionway steps, cockpit footwells, toe-kicks, berth surrounds, and locker openings where you want orientation lighting at night. Red and blue versions are often used where you want light that stays gentle on night vision, while white and warm white are common for general onboard walk-around lighting.

What’s included

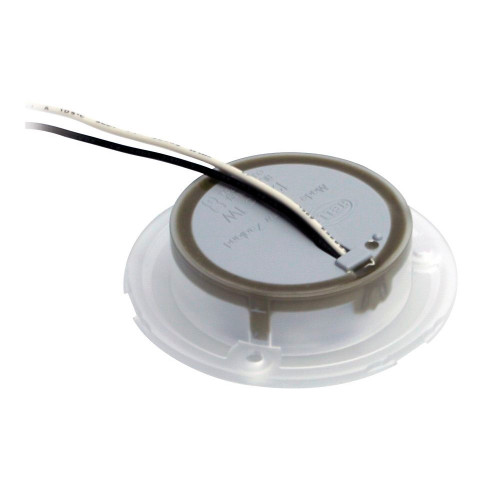

• Slimline round LED courtesy lamp with pre-wired 120 mm tinned marine cable
• Rim/bezel to match the selected trim option
• Gasket
• Surface mounting ring
• 3 stainless steel mounting screws

Maintenance and care

The lamp is sealed and has no serviceable parts inside. Clean the lens with fresh water and a mild soap, and avoid abrasive pads that can haze the acrylic over time.
