Overview

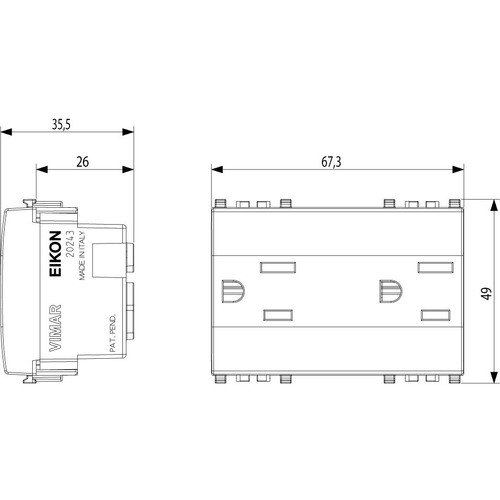

The Vimar Eikon 20243 is a flush-mounted double 2P+E 15 A 127 V socket outlet for American and Saudi Arabian plug standards. It uses a 3-module format, connects by screw terminals, and includes enhanced contact protection. Overall size is 67.50 x 49.00 x 35.50 mm, with an IP20 rating for interior use.

This is a practical choice for boats with a 127 V AC system that need two receptacles in one compact wall module. It fits best in protected interior spaces such as cabins, saloons, helm furniture, or other dry joinery areas where the Vimar Eikon system is already being used or planned.

The outlet body is thermoplastic and halogen-free with a matt finish and a label space on the face. It does not include a built-in switch, USB charging, or fault current protection, so it suits installations where those functions are handled elsewhere in the onboard AC setup.

Key features

• Double 2P+E outlet layout in one 3-module device
• Rated 15 A at 127 V with 50 to 60 Hz operation
• American and Saudi Arabian outlet standard
• Flush-mounted body with screw terminal connection
• Enhanced contact protection and label space on the front
• Thermoplastic construction that is halogen-free with a matt surface
• IP20 protection rating for dry interior locations

Variants

This outlet is offered in three color finishes within the same Eikon 20243 format.

Across the range, the electrical layout stays the same: two 2P+E 15 A 127 V outlets, 3-module size, screw terminals, flush mounting, and the same overall dimensions. The visible difference is the face color and finish treatment.

• VM20243.B: Color White. This version keeps a bright, low-contrast look that works well with light liners, painted panels, and clean interior joinery.
• VM20243.N: Color Silver. This version uses the silver Next finish for a more metallic look that sits naturally with modern trim and hardware.

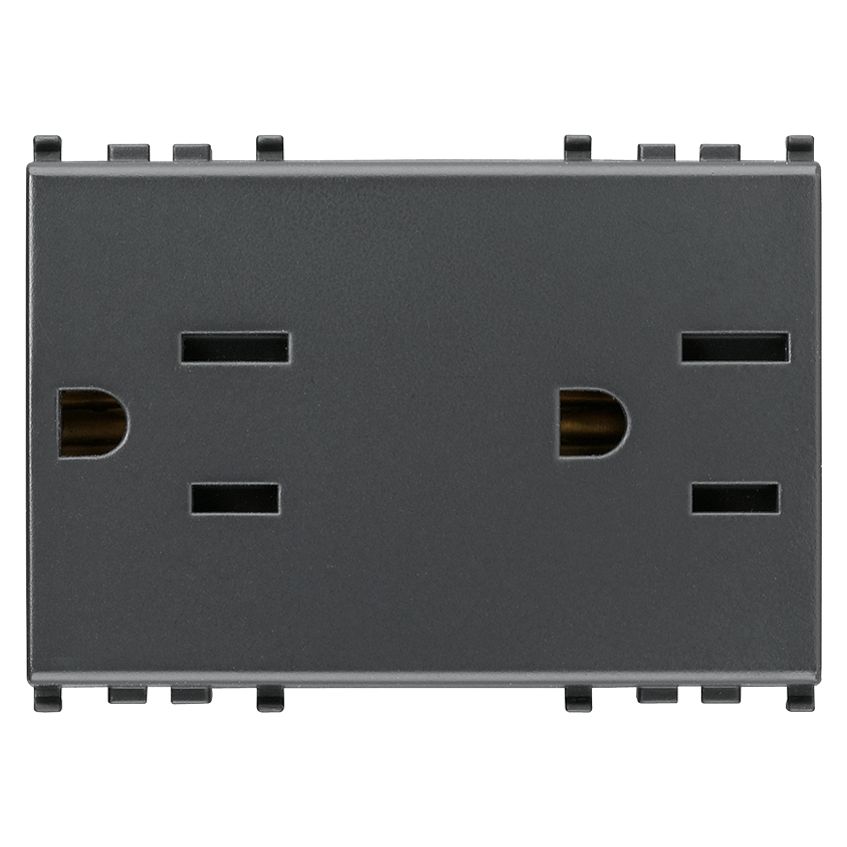

• VM20243: Color Grey. This version has a darker appearance that blends more easily into charcoal tones and darker panel work.

Compatibility and fit

This unit is sized for the Vimar Eikon modular platform and occupies 3 modules. It is meant for flush mounting in a compatible box and frame arrangement, not for exposed deck areas or places that see regular spray.

It is a good match for refits and new interior builds where the boat already uses American or Saudi Arabian plug geometry and a 127 V AC distribution scheme. On boats with mixed outlet standards or wet-location requirements, the surrounding system layout matters just as much as the faceplate style.

Installation and setup

Connection is by screw terminal, which suits fixed interior AC circuits where conductors are terminated behind the module and the finished face stays protected inside the cabin. Because the outlet is IP20 and has no built-in fault current protection, it belongs in dry spaces and in an AC system that already includes the right upstream protection for the vessel.
