Overview

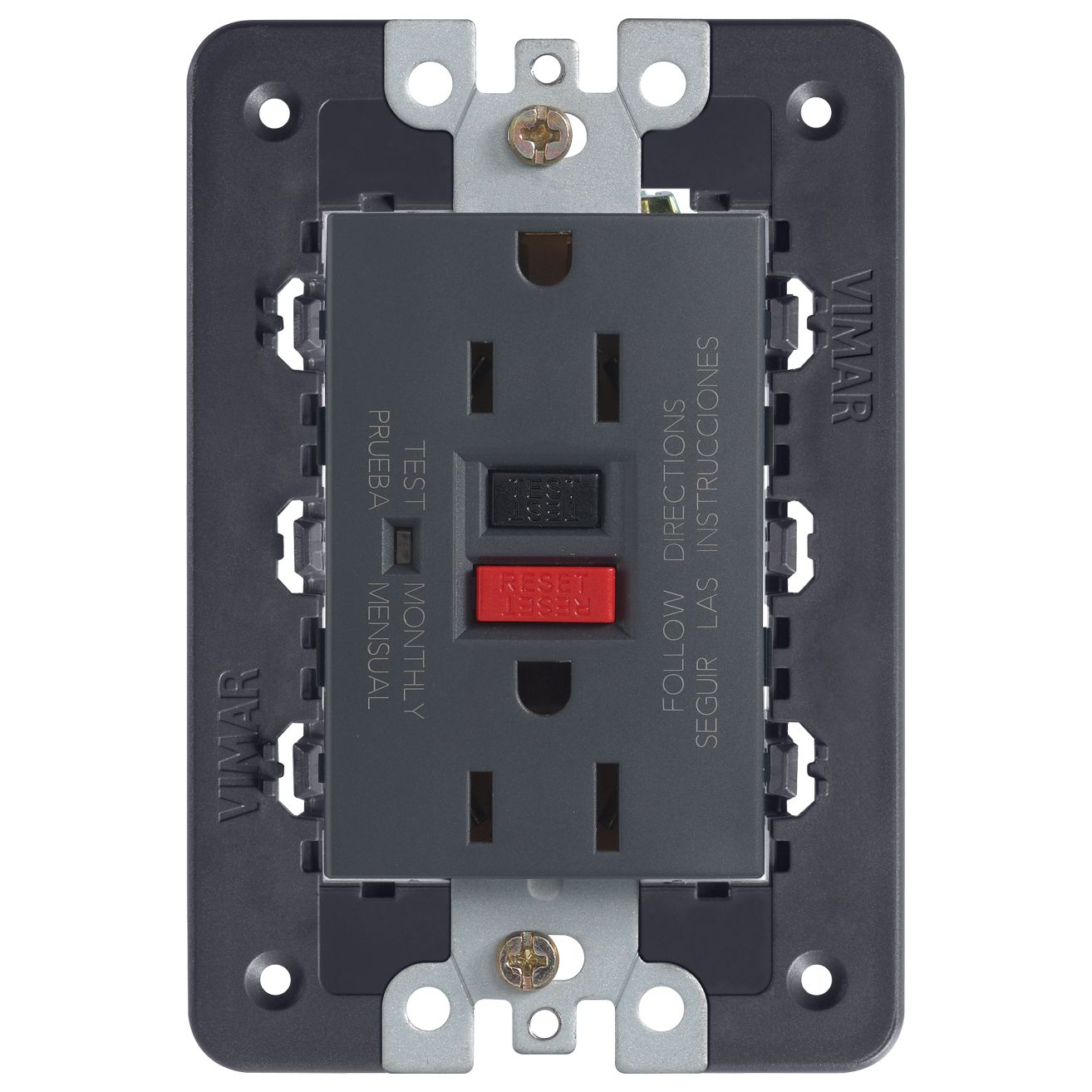

The Vimar Eikon 21296 is a double American-standard 2P+E socket outlet with GFCI, rated for 15 A, 125 V, and 60 Hz. It has a built-in mounting frame and is finished with a separate 3-module cover plate, so it works well where you want a clean flush installation on an interior bulkhead or cabin panel.

This range uses halogen-free thermoplastic with a matte finish, screw terminals, and screw fastening. The body measures 73 x 107 x 41.1 mm, and the front is rated IP20, so it belongs in dry interior spaces rather than exposed deck areas.

For boats set up around North American AC service, this outlet gives you a duplex receptacle with Class A GFCI protection and function lighting that helps locate it in low light. It is a practical fit for cabins, galleys, saloons, and other protected spaces where shore power or inverter-fed 125 V circuits are used.

Key features

• Duplex 2P+E receptacle in American standard format
• Rated 15 A, 125 V, 60 Hz for North American style AC systems
• Built-in GFCI Class A protection with 6 mA trip threshold
• Built-in mounting frame for flush installation
• Screw terminal connections and screw fastening
• Halogen-free thermoplastic body with matte surface
• IP20 front rating for dry interior locations
• Function lighting to make the outlet easier to find in low light

Variants

This outlet is offered in three color configurations. The electrical format and mounting arrangement stay the same across the range.

What changes between variants is the visible device color. Each version is the same duplex 15 A 125 V 60 Hz American-standard GFCI outlet with built-in mounting frame, sized for the same 3-module finishing layout.

• VM21296.B: White. This finish works well with light interior panels and clean white trim lines often used in cabins and heads.
• VM21296.N: Silver. This gives the outlet a cooler metallic look that sits naturally with stainless details and modern helm or accommodation finishes.
• VM21296: Grey. This is a neutral finish that blends easily into technical spaces, utility panels, and mid-tone interior surfaces.

Installation and fit

This is a flush-mounted device with screw fixing, so it suits interior wall or panel positions where the back side is accessible for wiring and the front needs to sit neatly within the switch plate layout. It is completed with a 3-module cover plate from the matching Eikon range.

Because it uses screw terminals and GFCI protection, it makes sense for refits and new installations where secure conductor termination and easy service access matter. On board, it is best used in protected accommodation spaces and other dry locations away from direct washdown or spray.
