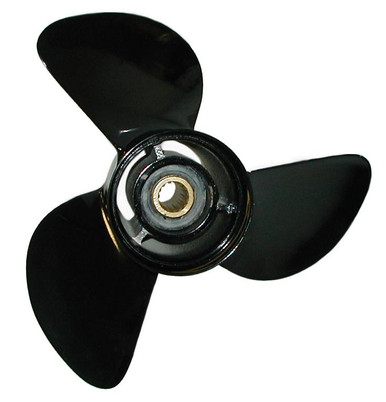

Michigan Wheel 13.25R17Al Black *Cupped* (101033)

The Michigan Match Propeller 13 1/4 X 17 rotates in the right direction with three-blade Aluminum. It has a long-lasting black powder coat finish and performs admirably. This Michigan Wheel has Rubber bushings on the propeller that were made to spin freely, reducing the possibility of lesser damage and providing a better primary propeller at a weekend-saving cost. It is a great replacement with YAMAHA 50 - 130 HP - 4 1/4" Gearcase and OEM Yamaha Semi-Cleaver Blade Geometry.

Key Features:

• It works well with outboards and sterndrives
• NAVAL brass spindle
• It fits with YAMAHA 50 - 130 HP - 4 1/4" GEARCASE
• Long-lasting black powder coat finish
• Rotates in a right-hand direction

Specifications:

• Brand: Michigan Match
• SKU: 101033
• Material: Aluminum
• Diameter: 13 1/4
• Weight: 8.00 lbs
• Length (inch): 14.50
• Width (inch): 7.50 inch
• Number of Splines: 15 Tooth Spline
• Number of Blades: 3
• Item color: Black
• Bushing: Rubber Hub

22'-25' All Load

OEM-equivalent blade geometry.

Engine Application

Yamaha® 50-130 Horsepower 41/4" Gearcase

T50 hp…1996 & newer;
T60 hp…2003 & newer;
60 hp (Includes C60/E60/P60)…1992-2005;
F70 (4-Stroke)…2010 & newer;
70 hp…1984 & newer;
F75 (4-Stroke)…2003 & newer;
5 hp (Includes C75/E75/P75)…1994-99;
80 hp…1997;
F80 (4-Stroke)…1999-2002;
85 hp…1991-97;
F90 (4-Stroke)…1999 & newer;
90 hp (Includes C90)…1984 & newer, F100 (4-Stoke)…1999-2002;
F115 hp (4-Stoke)…2000 & newer;
115 hp (Includes C115/P115)…1984 & newer;
130 hp…1984-2003

Attaching Hardware: H68/H69

Attaching Hardware

H68/H69

H68

Flat washer:
Quicksilver: 859907
Nut (castle):
Sierra: 18-3732
Quicksilver: NLA
Spacer washer (aft, splined):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3781
Michigan Wheel: 990766
Thrust washer (forward):
Michigan Wheel: 990769

H69

Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770

This product replaces:

6E5-45945-01-00, 14984006781
