Apollo Lighting - Luna Courtesy Light - 10-30V DC

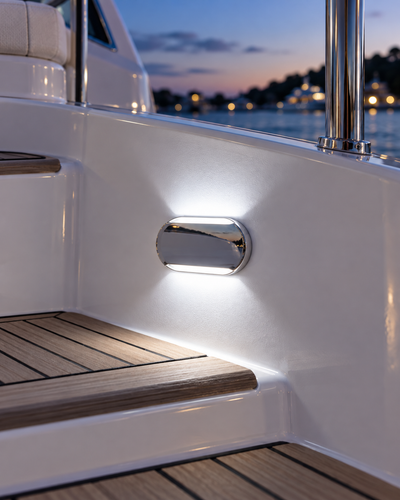

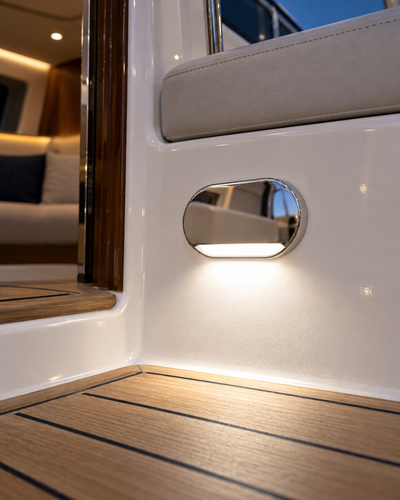

Luna Oval Marine Courtesy Light – Sleek Illumination Designed for Life on the Water

Bring refined, low-profile lighting to any marine interior or exterior with the Luna Oval Courtesy Light. Designed specifically for boats and marine applications, Luna combines a contemporary oval profile with premium stainless steel and soft, controlled illumination. Its compact design makes it ideal for steps, companionways, cockpits, walkways, cabins, side panels, and other areas where functional lighting should complement the vessel rather than overpower it.

Multiple Color Options for the Right Ambience

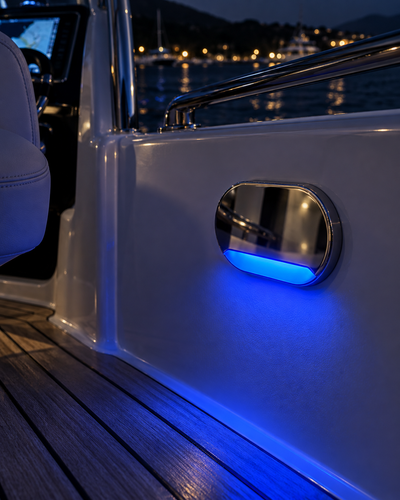

Luna is available in several lighting configurations to suit both functional and decorative applications. Single-color options include Warm White 3000K, Daylight 4000K, and Cool White 5000K. Tri-color versions are available in 3000K / Red / Blue and 5000K / Red / Blue, allowing one fixture to provide comfortable white illumination as well as red or blue accent lighting. The technical specification also lists a dedicated Blue configuration.

Downlight or Up-and-Down Illumination

Choose between a downlight configuration for focused illumination beneath the fixture or an up-and-down configuration for a more architectural lighting effect. The downlight version works especially well for stairs, deck transitions, and walkways, while the up-and-down design creates a sophisticated ambient glow on bulkheads, cabin walls, and entertainment areas.

Brushed or Polished Stainless Steel Finishes

The stainless steel bezel is available in both Brushed Stainless Steel and Polished Stainless Steel, making it easy to coordinate the fixture with the vessel's existing hardware and interior finishes. Brushed stainless delivers a clean, contemporary appearance with softer reflections, while polished stainless provides a bright, mirror-like finish suited to high-end yacht interiors and exterior detailing.

Fully Sealed for Marine Environments

Designed for both indoor and outdoor installations, the Luna Courtesy Light features an IP67-rated sealed construction, helping protect the fixture in demanding marine environments where moisture and water exposure are common. The installation guide specifies mounting the fixture on a flat, level surface rather than a curved surface.

Smooth Dimming and Simple Control

Luna supports PWM dimming, allowing the light level to be adjusted for anything from practical pathway illumination to subtle nighttime ambience. It can operate with a basic On/Off switch or be dimmed using the Apollo Universal Dimming Module. Tri-color models allow you to cycle through the available colors by quickly switching the light off and back on, and all three colors can be dimmed with the Apollo Universal Dimmer.

Compact Profile with Powerful Accent Lighting

Despite its discreet dimensions, Luna provides effective illumination without introducing a bulky fixture into the space. The overall fixture measures approximately 91 mm x 64.13 mm x 9.4 mm (3.58 in x 2.53 in x 0.37 in), allowing it to sit close to the mounting surface while maintaining a premium, finished appearance. The dimensional drawing also shows a mounting body of approximately 90.4 mm x 53.4 mm (3.56 in x 2.10 in) with mounting points spaced approximately 79 mm (3.11 in) apart.

Electrical Specifications

The Luna Courtesy Light operates on 10-30V DC only, making it suitable for common 12V and 24V marine electrical systems. Rated power consumption is approximately 1.36 watts at 12V and 1.75 watts at 24V, with approximately 0.113A at 12V and 0.073A at 24V. The fixture is polarity sensitive and supports PWM dimming.

Light Output Specifications

The 3000K, 4000K, and 5000K white configurations produce approximately 25 lumens at either 12V or 24V. The Blue output is rated at approximately 5 lumens, while Red is rated at approximately 8 lumens. The fixture has a CRI rating of 80, providing clean and consistent illumination for marine accent and courtesy-lighting applications.

Installation Specifications

The installation guide specifies a nominal 17 mm cutout, and the dimensional drawing shows an approximately 15.85 mm (0.62 in) rear cable-entry area. The fixture should be installed on a flat, level mounting surface, and the vessel's electrical power should be disconnected or isolated before installation. The manufacturer recommends professional electrical and mechanical installation.

Highlights

• Premium oval marine courtesy light for interior and exterior boat applications

• Single-color options: 3000K Warm White, 4000K Daylight, and 5000K Cool White

• Tri-color options: 3000K / Red / Blue or 5000K / Red / Blue

• Available with Brushed Stainless Steel or Polished Stainless Steel bezel

• Choose Downlight or Up-and-Down illumination

• 10-30V DC operating range for 12V and 24V systems

• PWM dimmable

• IP67 fully sealed construction

• White light output up to 25 lumens

• CRI 80

• Low power consumption: 1.36W at 12V / 1.75W at 24V

• Overall dimensions: 91 x 64.13 x 9.4 mm (3.58 x 2.53 x 0.37 in)

• Mounting body: approximately 90.4 x 53.4 mm (3.56 x 2.10 in)

• Mounting-hole spacing: approximately 79 mm (3.11 in)

• Nominal cutout: 17 mm

• Ideal for steps, companionways, cockpits, cabins, walkways, bulkheads, and yacht interiors
