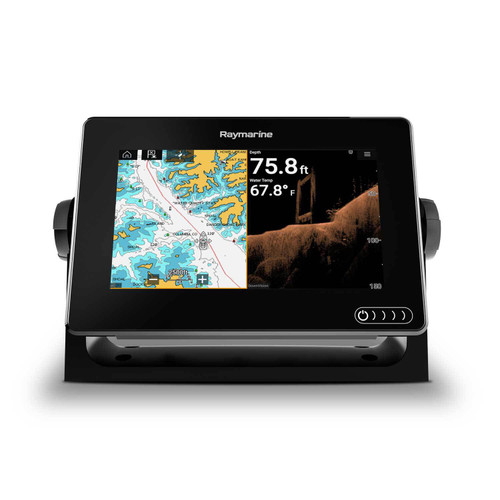

Raymarine Axiom 7 DV 7 in Multifunction Display, CHIRP DownVision, 600W Sonar, CPT-100DVS Transducer, Navionics+ US and Canada Charts

Overview

The Raymarine E70364-02-NAG is a 7-inch Axiom DV multifunction display bundle with CHIRP DownVision sonar, a CPT-100DVS transom mount transducer and Navionics Nav+ US and Canada charts. It pairs a 7.0 inch touchscreen with WVGA 800 x 480 resolution, a 1200 nit LCD, a built-in GNSS receiver and 600 W digital sonar in one helm display for navigation and fishfinding on smaller powerboats, center consoles and compact pilothouse layouts.

This unit runs LightHouse 3 and uses a buttonless all-glass front with swipe-to-power control. It is rated IPX6 and IPX7 for exposure at the helm, operates from 8 V DC to 16 V DC on a 12 V system and has an operating temperature range of -25 C to +55 C.

With RayNet Ethernet, NMEA 2000 and SeaTalkng integration, Wi-Fi and Bluetooth, the display can sit at the center of a growing Raymarine network. It can work with compatible radar, instruments, cameras, audio systems, Evolution autopilot and external sonar modules, so it suits a simple standalone install or a more connected helm.

Key features

• 7.0 inch touchscreen MFD with WVGA 800 x 480 resolution and a 1200 nit LCD for visibility at an open helm.
• Built-in CHIRP DownVision and conical sonar channels with 600 W digital sonar for bottom tracking, structure detail and fish targets.
• Includes the CPT-100DVS transom mount transducer and Navionics Nav+ US and Canada charts, covering the core chartplotter and sonar pieces in one bundle.
• IPX6 and IPX7 water ingress ratings help match exposed console, cockpit and flybridge mounting locations.
• RayNet Ethernet and NMEA 2000/SeaTalkng connectivity support integration with compatible radar, instruments, engines, audio, cameras and autopilot systems.
• Mounting support for trunnion, surface, flush and rear mounting gives flexibility for console upgrades and new dash layouts.
• Wi-Fi and Bluetooth are included for app connectivity and wireless features.

Installation and fit

The Axiom 7 DV can be trunnion mounted on top of a console or fitted into a dash using the supplied gasket and hardware. The all-glass buttonless front keeps the helm face clean, which is useful on compact consoles where space around the display is limited.

Plan cable routing before cutting the dash. The package includes a Power/NMEA 2000 cable with a 1.5 m power lead and a 0.5 m NMEA 2000 lead, and the transducer uses the 9 pin DownVision connection on the display.

Electrical and system integration

This display is for 12 V DC installations, with an 8 V DC to 16 V DC operating range and a 7 A fuse or breaker requirement. On boats with separate electronics and house battery circuits, it should be connected through a properly protected supply with good grounding and enough voltage stability for engine start cycles.

RayNet provides the Ethernet path for compatible Raymarine network devices, while the NMEA 2000 connection allows data sharing with SeaTalkng and other compatible marine electronics. The MFD can also control compatible NMEA 2000 audio systems and integrate with Evolution autopilot when the rest of the system is installed.

Use cases on board

This bundle is a good match for owners who want one compact display for chartplotting and sonar without building the system one part at a time. The 7 inch screen size fits many center consoles, small cruisers and fishing boats, while the included transom transducer suits common outboard and stern drive installations where DownVision imaging is wanted.

For boats that may add radar, cockpit cameras, thermal cameras or additional displays later, the networking gives room to expand without replacing the helm display.

Maintenance and care

After saltwater spray or washdown, rinse the display face with fresh water and wipe it with a soft cloth. Keep the microSD card door and cable connections seated before leaving the helm exposed, and check the transducer mount after trailering or heavy debris contact in shallow water.

What's included

• MFD with trunnion adaptor fitted
• Trunnion bracket
• Trunnion knobs x 2
• Suncover for trunnion mount
• Panel mount gasket for surface or flush mounting
• M5 x 58 threaded studs x 4
• M5 thumb nuts x 4
• Documentation pack
• Power/NMEA 2000 cable with 1.5 m power lead and 0.5 m NMEA 2000 lead
• Navionics Nav+ US and Canada Charts
• CPT-100DVS transom mount transducer
