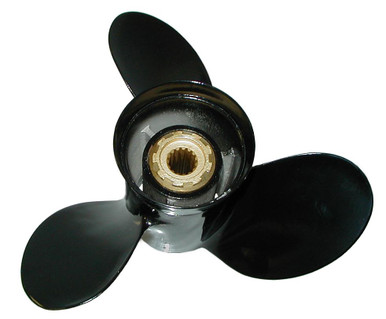

Michigan Wheel 14.000R13.000 Al 3Bl Mi Match *Cupped* (031055)

Aluminum Consoles, Inflatables, Family Cruisers, Offshore Singles, Pontoons, Ski boats, Walleye Boats, Workboats, and Houseboats are all recommended boat applications.

MERCURY, MARINER:

Bigfoot All Years, 40 & 50 HP 4-Stroke

2014 and Newer 40 HP Command Thrusts

2016 and newer 50 HP Sea Pro 4-Stroke

2014 and Newer 50 HP Command Thrusts

Bigfoot 1995 and after, 60 HP 4-Stroke

1995 and newer 60 HP (Sea Pro/Marathon)

2014 and Newer 60 HP Command Thrusts

4-Stroke 60 HP Sea Pro (2016 and Newer)

Until 1971, 65 horsepower (Model 650 - 2 Cyl)

The 65 HP was produced between 1961 and 1970. (Model 650 - 4 Cyl)

From 1987 through 1989, there were 70 horsepower models available.

Year after year, 75 HP (Sea Pro/Marathon)

1984 – 2005 75 HP 2-Stroke

2001 and Newer 75 HP 4-Stroke

From 1978 until 1989, there were 80 horsepower models available.

1978 - 1983, 80 HP (Mariner®)

From 1980 until 1997, 80 HP (Model 800; 2 and 4 Cyl)

1977 - 1983 Yamaha® 80 HP

From 1985 until 1997, 85 HP (Model 850; 2 and 4 Cyl)

1978 - 1983 (Yamaha® 90 HP)

2-Stroke with 90 HP, 1978

Until 1997, 80 HP (Model 800; 2 and 4 Cyl)

1977-1983 (Yamaha®) 80 HP

85 HP from 1997 till the present (Model 850; 2 and 4 Cyl)

Yamaha® 90 HP (Yamaha®) 1978-1983

1978 and Newer 2-Stroke 90 HP

2001 and Newer 90 HP 4-Stroke (Does not include Command Thrust variant)

1988 and Newer 100 HP

Yamaha® 115 HP 1978-1983

1978 and Newer 115 HP

2001 and Newer 115 HP 4-Stroke (Does not include Command Thrust variant)

1994 and Newer 125 HP

1978 - 1981 (Includes Sea Pro/Offshore) 140 HP

Yamaha® 140 HP) 1978 - 1979

Models 900, 1150, and 1500 from 1977 onwards

Engines such as EFI, OptiMax, and Pro XS are included.

15 Tooth Spline & Thru Hub Exhaust

HONDA:

2010 and Newer BFP 60

BF 75, 1995 and Newer

BF 90 models from 1995 and after

2016 and Newer BF 100

1998 - 2010 BF 115

BF 130 (1998-2004) BF 130 (1998-2004) BF 130 (1998

15 Tooth Spline & Thru Hub Exhaust

CHRYSLER, FORCE, MARINE

HP 75 (1999) (Requires thrust washer 13191A1)

L-Drive 90 HP 1990-1991

The 1995 and Newer 120 Horse Power (Requires thrust washer 13191A1)

L-Drive 120 HP 1990 - 1991

1989 - 1994 150 HP

L-Drive, 150 HP, 1991

15 Tooth Spline & Thru Hub Exhaust

Key features:

• 14 x 13 Cupped RH 3 Blade Aluminum

• Rubber Bushing MICHIGAN MATCH® Hub System

• Powder coating has been improved, and the bushing has been beefed up.

• A perfect propeller replacement

Specifications:

• Diameter: 14” x Pitch: 13”

• Material: Aluminum

• Number of Blades: 3

• Rotation: Right Hand

• Hub System: Rubber

• Surface Finish: Black, Painted
