Vimar Eikon EXÉ 2-Module Cover Plate, 90x90 mm, Clamp Mount, IP00

Overview

The Vimar Eikon EXÉ 22642 is a 2-module cover plate that gives an Eikon EXÉ switch or outlet position a front that sits flush and looks tidy.

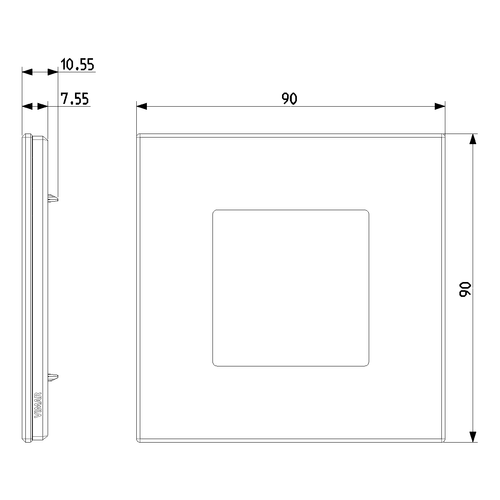

It can be installed in horizontal or vertical orientation and uses clamp mounting (snap fixing) so the plate clips onto the mounting frame after the devices are fitted. The visible face is 90 x 90 mm, and overall depth depends on the finish, with common versions at 10.15 mm and glass or stoneware versions at 10.55 mm.

Protection rating is IP00, so this plate is meant for dry interior locations such as cabins, wheelhouses, or protected consoles where it will not see spray or washdowns.

Key features

• 2-module (2M) cover plate format for Vimar Eikon EXÉ wiring devices
• Mounting direction supports both horizontal and vertical layouts
• Clamp mounting (snap fixing) for quick fit once inserts and frame are installed
• 90 x 90 mm face size for consistent alignment on panels and switch stations
• Depth varies by finish: 10.15 mm or 10.55 mm depending on the version
• Label space for circuit or room identification
• IP00 rating means it is decorative trim and does not add water ingress protection

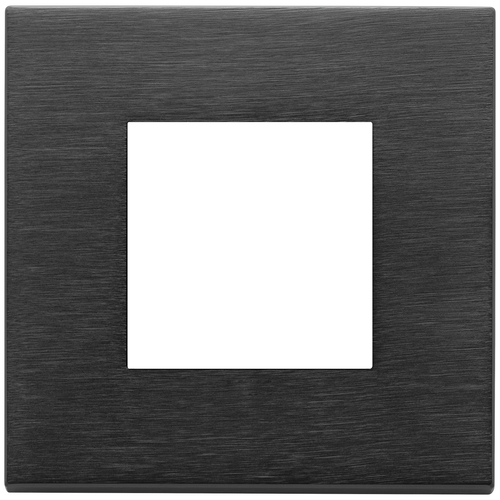

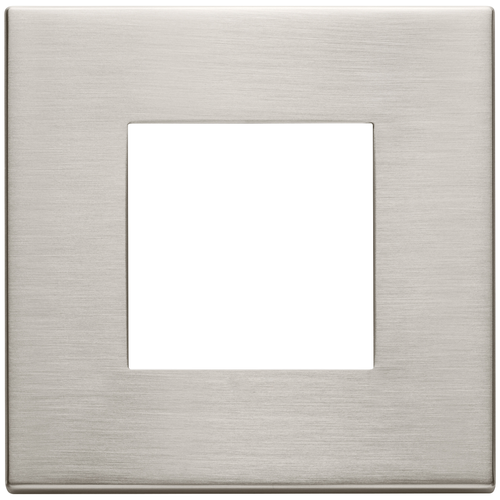

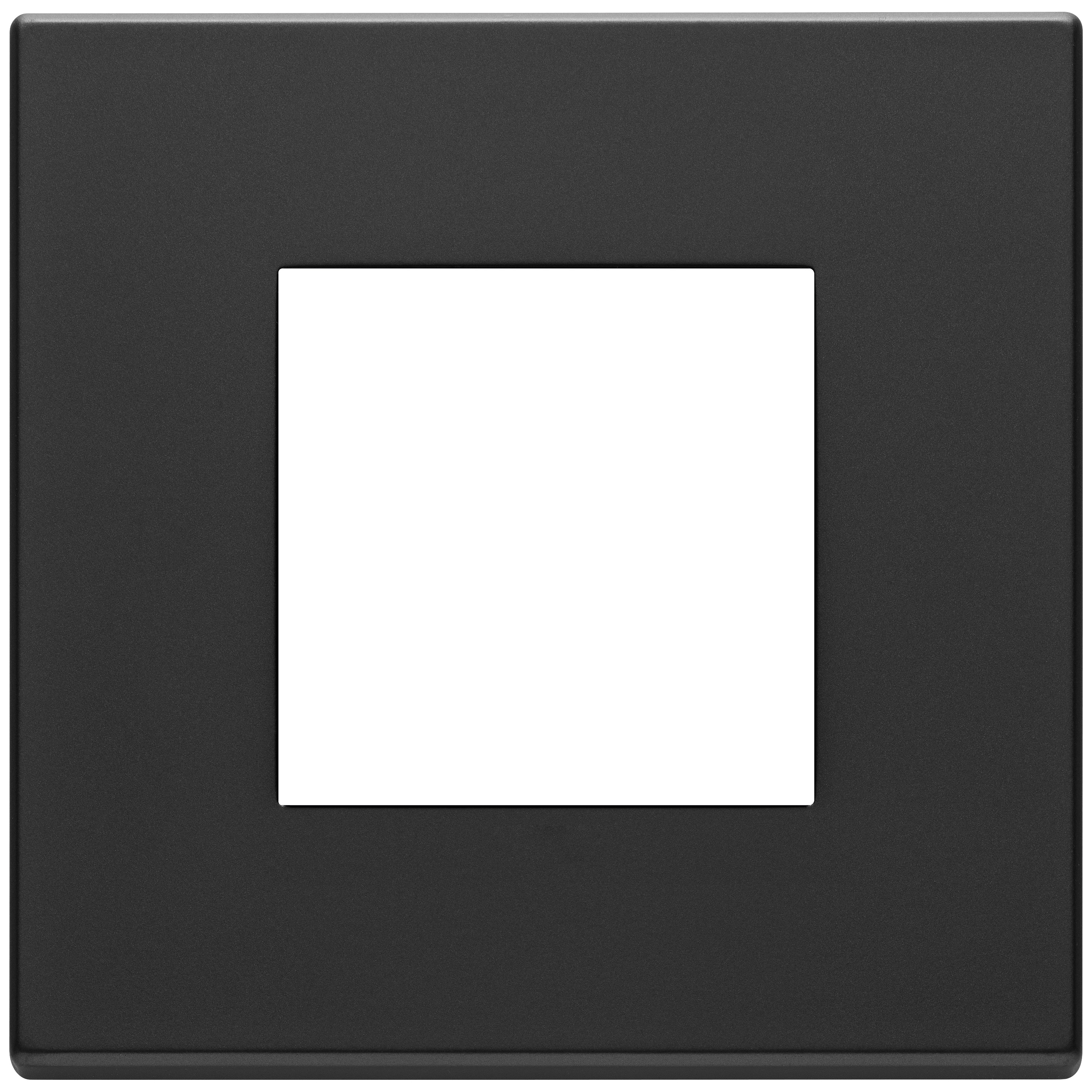

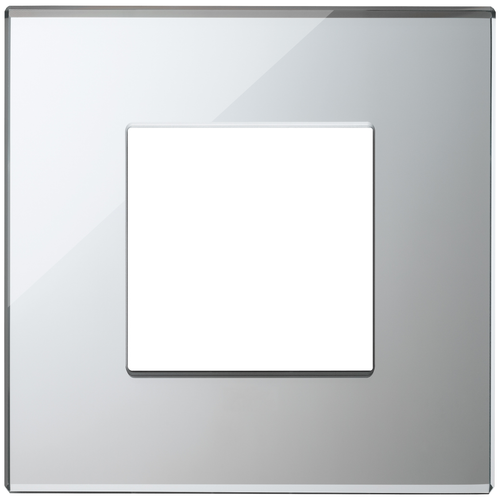

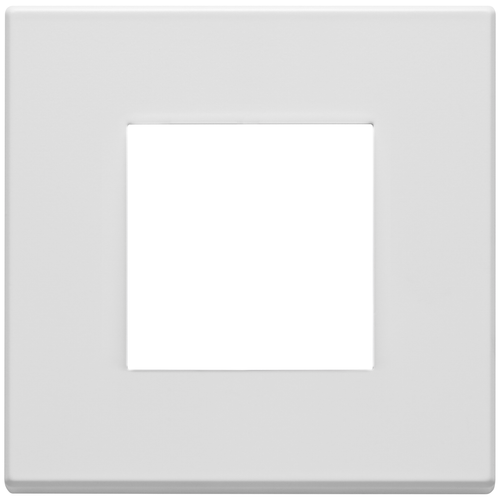

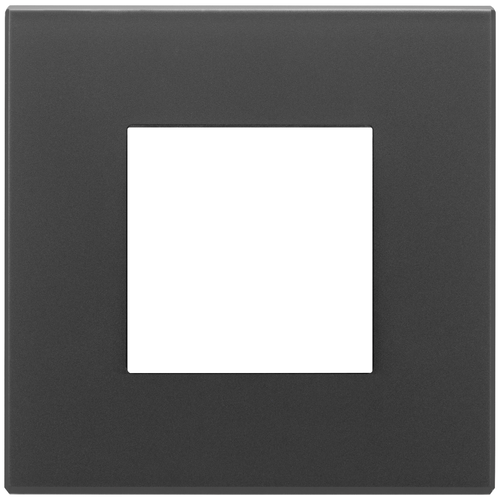

• Finish range spans metal tones plus glass, wood, and marble-effect options

Variants

This cover plate family is offered in a wide range of finishes so you can match existing Eikon EXÉ trim or keep a consistent look across the boat.

Across the range you will see polished and brushed metal finishes, glass options, solid wood looks, and marble-effect surfaces. The plate format stays 2-module with a 90 x 90 mm face, while the overall depth can vary slightly between finishes.

Compatibility and fit

This plate is sized for a 2-module (2M) Eikon EXÉ position and is intended to be used with the correct Eikon EXÉ mounting frame and inserts behind it. If you are mixing multiple plates on one panel, keeping the same series helps the edges line up and the gaps stay even.

Because the rating is IP00, any location exposed to spray, cockpit washdowns, or wet hands needs additional protection such as a suitable enclosure or a different sealed switching solution.

Installation and setup

Install the mounting frame and the Eikon EXÉ devices first, then clip the cover plate into place using the clamp mounting points. If it does not seat evenly, check that the inserts are fully secured and sitting square to the frame.

When planning a helm or cabin panel, allow clearance for the plate depth, especially when combining finishes where depth may be 10.15 mm or 10.55 mm.

On-board use and care

For metal and painted finishes, a soft cloth with mild soap keeps the surface looking even. Glass and stoneware versions should be cleaned with a non-abrasive cleaner to avoid scratching. Wood finishes should be wiped dry after cleaning and kept out of areas where they will stay damp.

This range is a good match for boats where you want consistent trim around lighting, pumps, and accessory circuits inside the cabin, galley, or wheelhouse.
