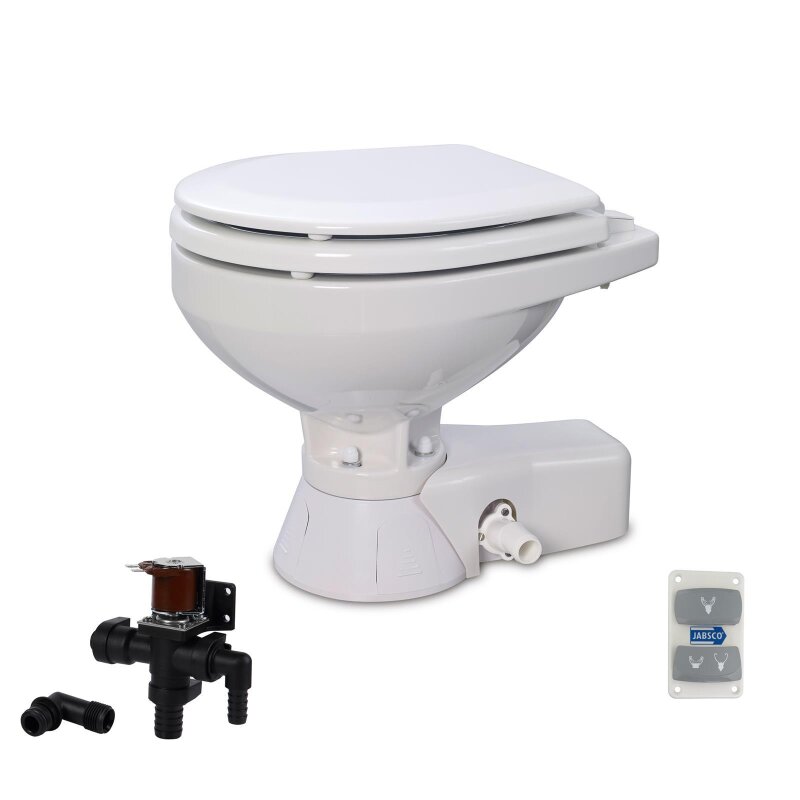

Jabsco 37045 Series Quiet Flush Freshwater Electric Toilet, Solenoid Valve, Macerator Pump

Overview

The Jabsco 37045 Series Quiet Flush Electric Toilet is a freshwater electric marine toilet range for boats with an onboard pressurized water system. It is made for installations where a quieter flush cycle, a cleaner head layout, and controlled bowl water levels matter, especially in cabins near berths or shared overnight spaces.

This freshwater version uses a water control solenoid valve with an anti-siphon breaker and can be plumbed to a pressurized water system capable of at least 3-1/2 GPM (13.5 LPM). Water use is typically 1 to 2 quarts per flush, and the toilet uses a 3/4 inch (19 mm) inlet hose barb with a 1 inch (25 mm) discharge hose barb.

The range covers 12 V DC and 24 V DC systems, with compact and regular bowl options. Each model uses a white vitreous china bowl and a macerator discharge pump, making it a practical fit for many cruising boats, fishing boats, and yachts where the head is connected to a holding tank or suitable discharge plumbing.

Key features

• Quiet flush cycle that feels closer to a household toilet than a typical manual marine head.
• Freshwater flush setup for connection to an onboard pressurized water system with at least 3-1/2 GPM (13.5 LPM) flow.
• Water control solenoid valve with anti-siphon breaker to help separate the toilet flush circuit from the vessel water supply.
• Single push-button flush control with separate water level control for raising or lowering bowl water as needed.
• High-capacity macerator and bowl discharge pump to move waste through the discharge line.
• White vitreous china bowl in compact or regular size, depending on the selected configuration.
• 12 V DC models draw 10 A and use a 25 A fuse; 24 V DC models draw 5 A and use a 15 A fuse.
• Uses a 3/4 inch (19 mm) inlet hose barb and a 1 inch (25 mm) outlet hose barb, with adaptation to 1-1/2 inch (38 mm) waste plumbing possible where required.

Variants

This product family is available in compact and regular bowl configurations, with 12 V DC and 24 V DC electrical versions. Regular bowl models are also offered with a soft close seat and lid.

The main differences across the range are bowl size, onboard voltage, and whether the regular bowl includes the soft close seat and lid. Shared features include the freshwater quiet-flush layout, solenoid valve with anti-siphon breaker, vitreous china bowl construction, and macerator discharge system.

Installation and setup

The toilet should be connected to a pressurized water system that normally remains on while the vessel is in use. For freshwater installations, the solenoid valve and anti-siphon breaker assembly should be mounted vertically and positioned above the hose connection at the back of the bowl, with enough access for inspection.

The discharge side uses 1 inch (25 mm) hose to route waste to a holding tank or an approved overboard discharge arrangement where regulations allow. Keeping the discharge hose run short and reducing sharp bends helps the macerator pump work efficiently. Where the toilet is installed below the waterline and connected to an overboard discharge through-hull, the discharge plumbing must use a vented loop that remains above the waterline at all angles of heel and trim.

Electrical and system integration

Select the voltage variant that matches the vessel system. The 12 V DC models are suited to common 12 volt boat electrical systems, while the 24 V DC models suit vessels with 24 volt DC service. Wiring should be run as an independent circuit with marine-grade stranded copper wire, the correct fuse or breaker, and wire size matched to the total circuit length.

The switch panel needs to be located within easy reach of the user and with enough access behind the mounting surface for wiring to the pump and solenoid valve. The separate water and discharge controls are useful at sea because the bowl can be emptied more completely before rough-water passages.

Use cases on board

This toilet range fits boats where a cleaner freshwater flush and lower operating noise are priorities. It is a strong match for private heads on cruising sailboats, powerboats, sportfishing boats, and yachts where the head compartment is close to sleeping areas.

The compact bowl versions suit tighter compartments where floor space and clearance are limited. The regular bowl versions give a more familiar seating size for main heads, guest heads, and larger cabin layouts.

Maintenance and care

Routine care is limited mainly to keeping the bowl and pump area clean. Use mild nonabrasive cleaners and avoid strongly scented or high-aromatic cleaners, since those products can affect pump seals over time.
