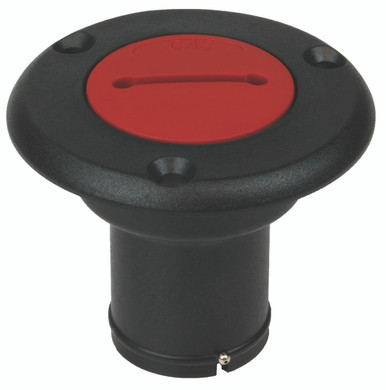

Sea Dog Marine Nylon Flip Cap Deck Fill Gas (357030-1)

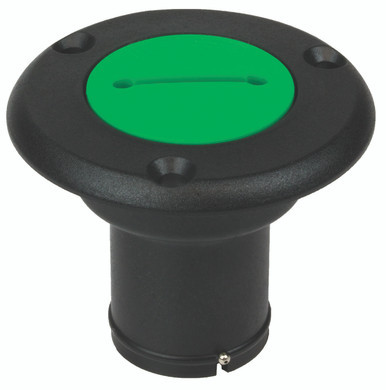

The Nylon FLIP CAP DECK-FILL GAS (3-357030-1) is a fiberglass-filled injection-molded nylon construction featuring a built-in key for easy cap removal. The key can be locked in an erect position to unlock or lock the fill, then recessed into the cap for a flush external. These lids are color-coded for quick deck fill identification, removing the risk of misidentification and the associated costs. Attachment chains include gas, diesel, and water caps. These fills do not contain any metal, don't need to be grounded to the boat's electrical system, and won't function with pressurized oil injection systems.

Key Features:

• Thread pitch 11-1/2 NPSM straight, cap diameter 1-7/8".
• For easy fill recognition, the caps are color-coded.
• Premium material construction to meet strict quality standards.
• There may be special order requirements, and custom colors are available with large orders.
• For black caps with all identifying marks, special orders are possible.

Specifications:

• SKU: 3-357030-1
• UPC: 035514357494
• Weight: 0.28 LBS
• Body Color: Black
• Cap Color: Red
• A: 1-1/2" Hose
• B: 2-1/2"
• C: 3-3/8"
• Fastener: #10 FH
• Brand: Sea-Dog Marine
• Condition: New

Note:

• Three #10 FH fasteners for installation are required. (not included).
• Pressurized oil injection systems are incompatible with this product.
• Connect the deck fill to the reservoir using a hose (not included).

These Hose Deck Fills feature a built-in key for easy cap removal. The key can be locked in the upright position to open or close the fill and then recessed into the cap for a flush surface. Cap diameter 1-7/8", thread pitch 11-1/2 NPSM straight. Caps are color-coded for easy deck fill identification, eliminating dangerous and potentially costly problems caused by misidentification. Gas, diesel, and water caps include attachment chains. Constructed of fiberglass filled injection molded nylon. These fills contain no metal and do not require grounding to the boat's electrical system. Installs with three #10 FH fasteners (not included). Will not work with pressurized oil injection systems. Connect deck fill to reservoir via hose (not included).

• Black Caps With All Markings Available Through Special Order
• Special Order Requirements May Apply
• Custom Colors Available With Large Order

This product replaces:

• 3-357030
• 357030-1
• 357030
• 35514357494
