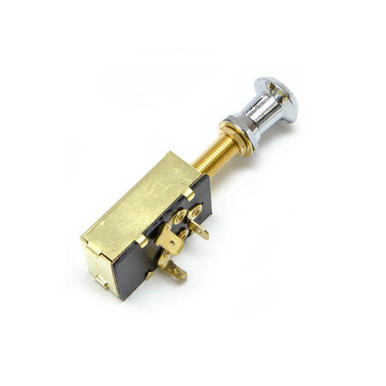

Sea Star Solutions Brass Push-Pull Switch-3 Position - Sierra Marine Engine Parts (Mp39590)

A button transmits a signal to another device, causing it to go from on to off or vice versa. The push-button switch may perform necessary functions start, stop, forward and backward rotation, speed adjustment, and interlock.

A Push Button switch operates on a primary mechanism known as Push-to-Make. It is initially in the off or generally open position, but when pressed, it permits current to travel through it, or we may say it completes the circuit. Push/pull button switches are for applications where the ability to control a switch by pushing or pulling a knob.

Key Features:

• Has mounting bushing of 3/8 inches
• The first pull activates #1.
• The second pull activates both circuits.
• 15 amps @ 12 volts DC
• SPDT switch positions are off-on(1)-on(1&2)
• Chrome-plated brass and solid brass knob
• Has three-blade terminals
• Designed for maximum use

Product Specifications:

• Brand: SeaStar Solutions
• SKU: MP39590
• UPC: 808282368111
• Weight: 0.20 LBS
• Switch Type: SPDT
• Terminal: SPDT
• Material: Brass
• Item Dimensions: 3.18 x 1.75 x 6.81 inches
• Color: Chrome
• Manufacturer Part Number (MPN): MP39590
• Replaces Products: 49-39591, 49-39590, MP3959, MP39592, 808282368111, 11-MP39590, 2312139590

Switch Positions: Off-On(1)-On(1&2) SPDT, First pull energizes #1, Second pull energizes both circuits, Solid brass construction w/ Chrome plated brass knob, 3 blade terminals

This product replaces:

• 49-39591, 49-39590, MP3959, MP39592, 808282368111, 11-MP39590, 2312139590
