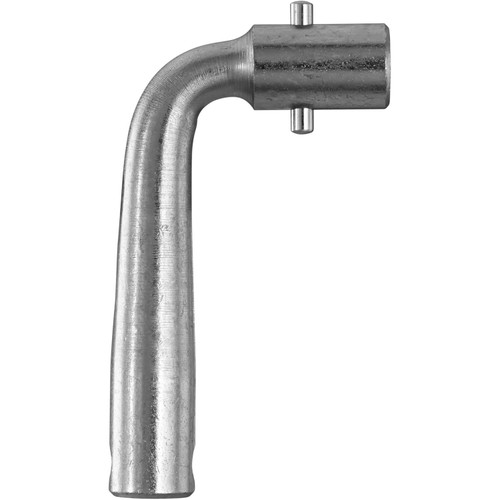

Hella Marine 1559 Battery Master Switch Spare Key

Overview

The Hella Marine 042991001 is a single-circuit battery master switch with a removable key for disconnecting a battery from your boat’s DC system.

It’s rated for 100A continuous at 12V, with short-duration switching capacity up to 1000A for 10 seconds at 12V (and 500A for 10 seconds at 24V). The key can be removed in the OFF position, so the circuit stays interrupted until you reinstall the key and turn it back on.

This style of keyed disconnect is a practical fit for boats that get stored on a trailer or mooring and need a simple way to stop parasitic loads, or for setups where you want a clear lockout for service work at the battery bank.

Key features

• Single-circuit ON/OFF battery master switch with removable key
• 100A continuous rating at 12V
• Maximum load: 1000A for 10 seconds at 12V; 500A for 10 seconds at 24V
• Key removal in OFF position so the circuit remains interrupted
• Two M10 screw terminals for ring-lug cable connections
• Tin-plated contacts to help resist oxidation at the connection points
• Seawater-proof construction with black base and red key for quick identification
• Can be used to switch either the positive or negative battery cable, depending on your wiring plan

Installation and setup

Mount the switch where it’s easy to reach in an emergency, but still protected from direct spray and gear impact, such as a cockpit locker bulkhead or a dry section of the engine space. Allow clearance above the switch so the key can be inserted and turned without hitting a panel lip or hatch frame. The base is 2.25 inches in diameter, which helps when you’re checking fit on a flat mounting surface.

Route heavy battery cables with strain relief so vibration and engine movement do not work the terminals loose over time. Use insulating boots where possible, and keep the battery area ventilated and free of loose metal items.

Electrical and system integration

Plan your cable size and terminal lugs around the loads you expect the switched circuit to carry. This is a single-circuit disconnect, so it’s typically used as the main shutoff for one battery or one feed leaving the battery. The terminals are M10 screw posts, so confirm your ring lugs match that stud size before you crimp.

As with any master disconnect, avoid switching it OFF while the engine is running if doing so would separate the alternator output from the battery. For service work, shut down charging sources first, then isolate the battery.

Compatibility and fit

This switch is a good match for simple 12V battery systems on center consoles, sailboats, and small cruisers where you want a keyed ON/OFF disconnect. Verify your continuous and starting surge currents stay within the ratings, and confirm you have room for the cable bends at the rear of the switch with your chosen lug style.

Maintenance and care

Check terminal tightness periodically, especially after the first few outings following installation. If the switch lives in a damp locker, inspect the connections for corrosion and clean as needed. Keeping the key clean and stored where the crew can find it quickly helps avoid getting stuck with a dead system at the dock.
