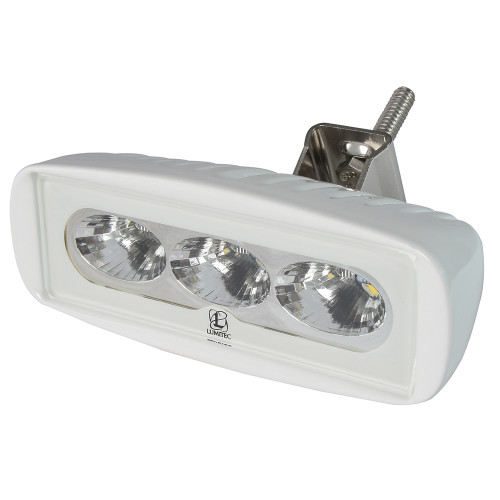

Lumitec CapreraLT Bracket Mount LED Flood Light, 10-30V, IP67, 1000 lm
Lumitec CapreraLT Bracket Mount LED Flood Light, 10-30V, IP67, 1000 lm
Overview
The Lumitec CapreraLT is a bracket-mount LED flood light for deck and spreader-style lighting on boats, with cool-white output at 5000K and 1000 lumens.
It runs on 10-30 VDC for 12V or 24V systems and draws 1.3A at 12V (about 600mA at 24V). The housing is sealed to an IP67 rating for spray, rain, and routine washdowns.
Use it to light up the cockpit, transom, work areas, or the foredeck, then set the beam where you want it with the adjustable bracket.
Key features
- Cool-white 5000K output with 1000 lumens for clear working light on deck
- 10-30 VDC input supports both 12V and 24V DC systems
- Current draw: 1.3A at 12V, about 600mA at 24V
- IP67-rated sealing for wet environments and washdowns
- Powder-coated die-cast aluminum housing for life in sun, salt, and vibration
- Bracket mount with adjustable aiming for spreaders, hardtops, arches, and rails
- Works with most PWM LED dimmers for brightness control
- Not Poco system compatible
Variants
This light is offered in multiple configurations based on housing color.
Across the range, the output stays cool white at 5000K with the same 10-30 VDC electrical range and bracket-mount format. The change is the exterior finish for visual match on board.
- 101293: Product color Black. A dark housing blends in with black powder-coated towers and rails and draws less attention when mounted near the helm.
- 101292: Product color White. A light housing matches white gelcoat and looks clean on arches, hardtops, and cabin sides.
Installation and setup
Mount the bracket to a solid backing surface and aim the fixture before final tightening. Route wiring so it is supported, protected from chafe, and kept clear of moving hardware, then seal any deck penetrations appropriate to your mounting surface.
The light is polarity sensitive, so confirm positive and negative at the connection point before powering up. Size wiring and circuit protection to the run length and load following ABYC practice.
Electrical and dimming
This light is a straightforward fit for boats with 12V or 24V DC distribution, since it accepts 10-30 VDC. When used with a compatible PWM dimmer, you can reduce brightness for night running while keeping the white color temperature fixed at 5000K.
It is a good match for owners who want a single-color deck flood and do not need integration with a Poco lighting control system.
