Raymarine Axiom Pro 12 RVX Multifunction Display, RealVision 3D, 1kW CHIRP, HybridTouch, LightHouse North America Chart

Overview

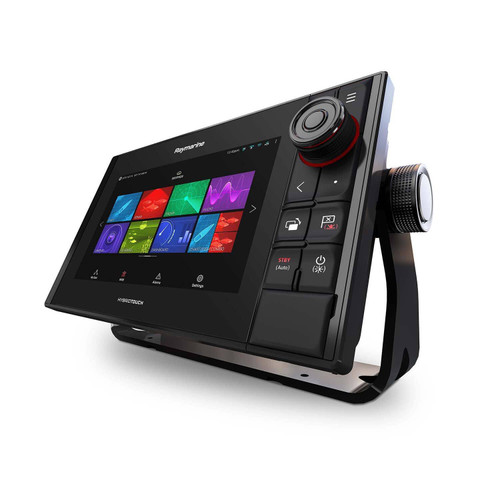

The Raymarine E70372-00-102 is a 12.1-inch Axiom Pro 12 RVX multifunction display with built-in RealVision 3D sonar, 1kW CHIRP sonar, HybridTouch control, and a LightHouse North America chart card on microSD. It suits helms where one display needs to handle chartplotting, sonar, radar integration, autopilot control, cameras, and marine network data without adding separate black-box modules for core fishfinding functions.

The display uses an optically bonded IPS screen with 1280 x 800 WXGA resolution and 1,200-nit brightness, so chart detail and sonar returns stay readable in open cockpits and bright pilothouses. It runs on 12V or 24V DC systems with an 8V to 32V DC operating range, and the IPX6/IPX7 rating helps it cope with spray, rain, and regular washdowns at exposed helm stations.

For boats with growing electronics systems, this unit gives you RayNet Ethernet, NMEA 2000, NMEA 0183, Wi-Fi, Bluetooth, dual front microSDXC card slots, and built-in GNSS. It is a strong match for fishing boats, cruising boats, and serious day boats that need a large helm display with both touch control and physical keys for rougher water.

Key features

• 12.1-inch optically bonded IPS display with 1280 x 800 WXGA resolution and 1,200-nit brightness for clear viewing at the helm.
• HybridTouch operation lets you use the touchscreen, keypad, and rotary control, which is useful when spray, gloves, or chop make touch-only control less practical.
• Built-in RealVision 3D and 1kW CHIRP sonar support detailed fishfinding and structure viewing when paired with compatible transducers.
• Runs on 12V and 24V DC boat electrical systems with an 8V to 32V DC operating range.
• IPX6/IPX7 waterproof rating for installation in exposed marine locations such as center consoles, flybridges, and open cockpits.
• Two RayNet Ethernet ports support connection to compatible radar, sonar modules, additional Axiom displays, IP cameras, and network accessories.
• NMEA 2000 and NMEA 0183 connectivity allows integration with common onboard sensors and marine electronics networks.
• Built-in GNSS receiver supports GPS, Galileo, GLONASS, and Beidou with a 10 Hz refresh rate for fast position updates.
• Dual front microSDXC card slots support chart cards, software updates, and data storage without reaching behind the helm.

Installation and setup

The Axiom Pro 12 RVX can be surface mounted or trunnion mounted, which gives installers flexibility for flush dash layouts, console refits, and bracket-mounted helm stations. Surface-mounted dimensions are 8.77 inches high by 14.1 inches wide by 9.18 inches deep including cables, so the space behind the dash needs to be checked before cutting or replacing an older display.

The power, video, and NMEA 0183 cable is supplied for core electrical and legacy data connections. For NMEA 2000 or SeaTalkng systems, the included DeviceNet to SeaTalkng adaptor cable helps tie the display into the vessel network. A 15 A fuse rating is specified for the power feed.

Electrical and system integration

This display is made for boats that use the MFD as the center of the helm network. The RayNet ports allow expansion with compatible Raymarine radar, external sonar modules, additional displays, and IP video sources, while the NMEA 2000 port handles engine, instrument, AIS, heading, and other network data where compatible equipment is installed.

It also supports one analog video input through BNC and up to 10 IP cameras, which is useful for engine room monitoring, cockpit views, docking cameras, or keeping an eye on deck areas from the helm. Evolution autopilot control and compatible audio integration can also be handled through the display when the rest of the system supports it.

Sonar and navigation use

The RVX sonar package is aimed at captains who want both shallow-water imaging and offshore CHIRP capability from the same helm display. RealVision 3D, DownVision, SideVision, and CHIRP sonar views help with finding structure, bait, and fish around reefs, wrecks, ledges, and drop-offs, while the 1kW sonar connection supports deeper-water use with a compatible 1kW transducer.

The included LightHouse North America chart card gives the unit ready navigation coverage for North American waters. With the large screen, physical controls, and network expandability, this MFD works well as a primary helm display on fishing boats and cruising boats where chart, sonar, radar, and system data need to be viewed from one place.

What’s included

• Axiom Pro 12 RVX multifunction display
• LightHouse North America chart card on microSD
• Front bezel pieces and upper keypad
• Panel mount gasket
• Suncover
• Trunnion bracket
• Trunnion knobs
• Mounting fixings
• Optional grounding hardware
• Power, video, and NMEA 0183 cable
• RayNet female to RayNet female network cable
• DeviceNet to SeaTalkng adaptor cable
• Documentation
