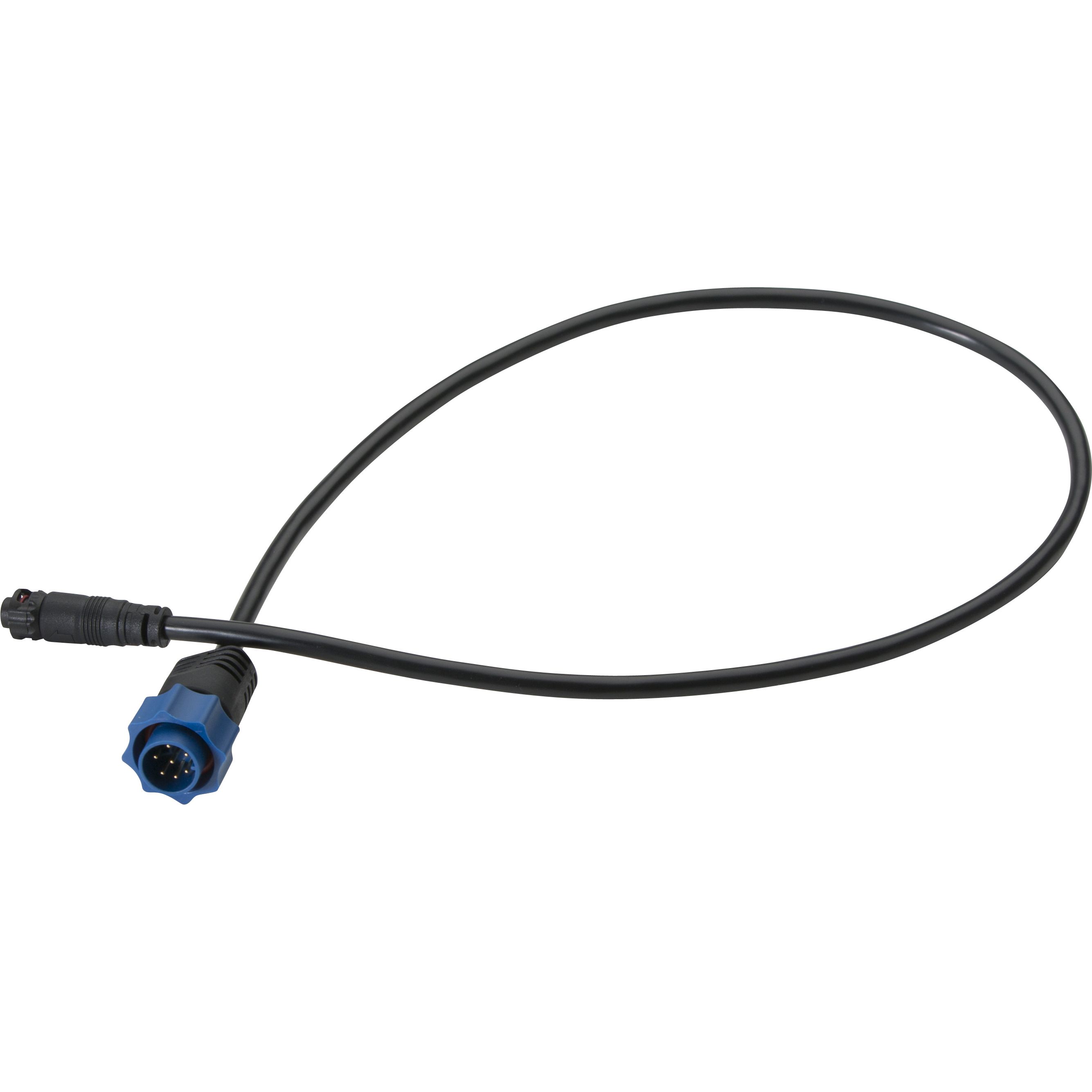

MotorGuide Lowrance 7-Pin HD+ Sonar Adapter Cable, For Tour/Tour Pro HD+ Motors, Blue 7-Pin Port

Overview

The MotorGuide 8M4004175 is a Lowrance 7-pin HD+ sonar adapter cable that links a Tour or Tour Pro trolling motor with HD+ built-in sonar to a Lowrance display that uses the blue 7-pin transducer port.

It passes 83/200 kHz and 455/800 kHz signals so the sonar picture comes from the transducer in the trolling motor, keeping the bow setup tidy and reducing the need to strap an external transducer to the shaft.

Key features

• Works with MotorGuide Tour and Tour Pro models equipped with HD+ built-in sonar
• Connects to Lowrance units with the blue 7-pin transducer port, including HDS, HDS Gen2, HDS Gen2T, HDS Gen3, HDS Carbon, Elite Ti, Hook, and Hook 2 models that use this connector
• Supports 83/200 kHz and 455/800 kHz operation from the HD+ transducer
• Not compatible with MotorGuide Xi Series motors
• Hook2 connections also require a Lowrance 7-pin transducer to Hook2/Reveal and Cruise adapter

Compatibility and fit

Confirm the connector on your Lowrance unit before ordering. This cable is specifically for displays with the blue 7-pin transducer socket, and it will not mate with other transducer port styles.

On the trolling motor side, it is intended for Tour and Tour Pro motors that have HD+ built-in sonar. It is a sonar signal adapter only and does not replace trolling motor battery wiring.

Installation and setup

Route the cable along the trolling motor shaft with enough slack for stowing and deploying, then secure it so it cannot pinch at the mount or rub through where the shaft flexes. Leave the connectors supported and out of standing water, and avoid using the cable itself as a handle when separating plugs.

After everything is connected, set the display to read from the trolling motor transducer so the unit is not still looking for a transom or thru-hull source.

On-board use

This is a good match for anglers upgrading to a Tour or Tour Pro HD+ motor while keeping a Lowrance head unit that still uses the blue 7-pin transducer port. It also fits well on boats where the bow unit needs its own dedicated trolling-motor sonar feed.

Maintenance and care

Rinse salt spray off after runs, check for chafe where the cable bends during deploy and stow, and inspect connector pins before plugging in. Keeping the run secured and strain-relieved helps prevent intermittent sonar readings on rough water.
