Attwood Marine Honda Fuel Line Fittings, Quick-Connect

Overview

The Attwood Marine Honda Fuel Tank and Hose Fittings is a range of Honda-style fuel line connectors for matching the fuel hose, portable tank, or engine end of an outboard fuel system. The available fittings cover 3/8 inch I.D. fuel hose connections, a 1/4 inch male NPT tank thread, and engine-end hose attachment depending on the selected configuration.

These fittings are made for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. The range includes chrome-plated brass options for large-bore 90HP+ Honda tank and hose connections, plus an acetal engine-end fitting for Honda outboard fuel hose setups.

Key features

• Honda fuel connector options for tank, hose, and engine-end fuel line connection points.
• 3/8 inch hose barb configuration available for fuel lines with 3/8 inch I.D. hose.
• 1/4 inch male NPT tank fitting available for large-bore 90HP+ Honda fuel tank applications.
• Chrome-plated brass variants support the tank and hose fittings used together on 90HP+ large-bore setups.
• Acetal engine-end variant fits the Honda engine-side hose connection and uses a rectangular locking post style.
• Compatible with leaded, unleaded, ethanol-blended, and alcohol-blended marine fuels.

Variants

This product is offered in three configurations so the connection point can match the fuel system layout on board.

The variants differ by fitting type, material, and application. The 8902-6 hose fitting and 8901-6 tank fitting are the matching large-bore 90HP+ chrome-plated brass pair, while the 8900-6 is the acetal engine-end hose fitting.

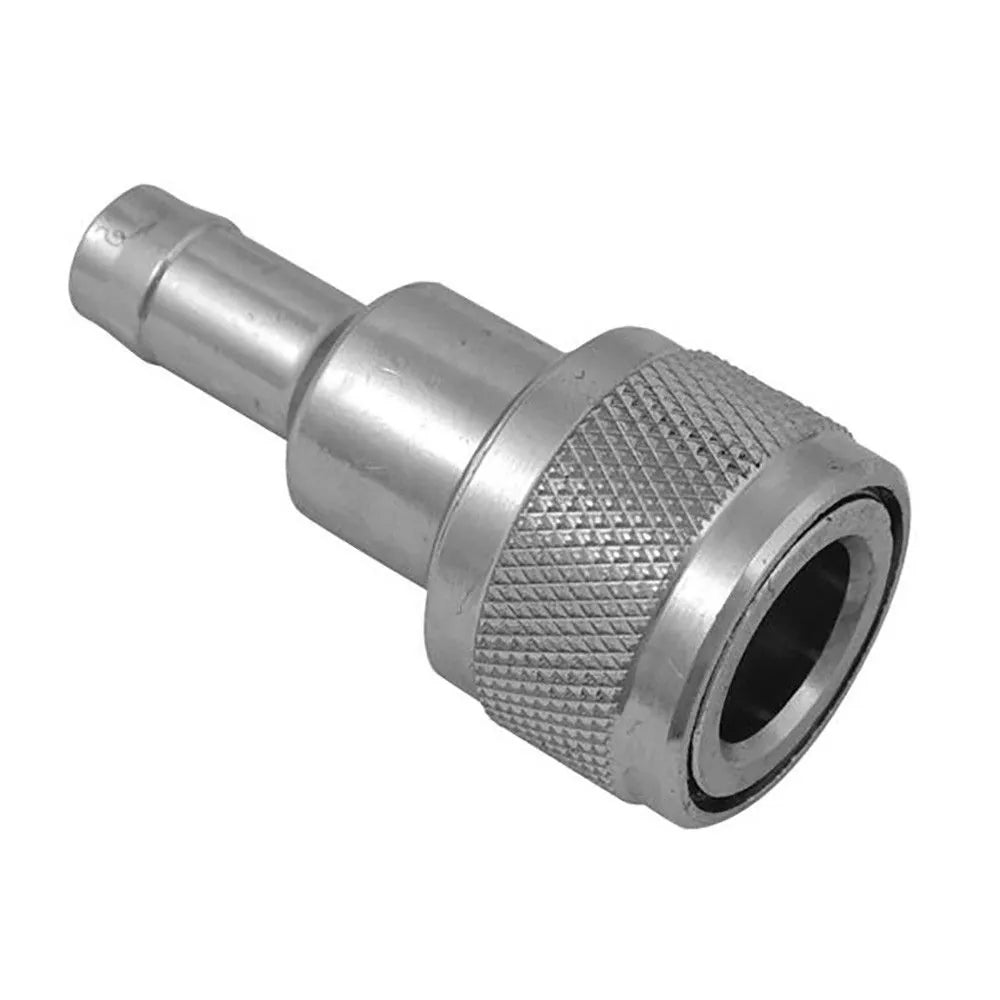

• 8902-6: Hose female fitting in chrome-plated brass for 90HP+ large-bore applications. This version fits 3/8 inch I.D. fuel hose and mates with the 8901-6 tank fitting.

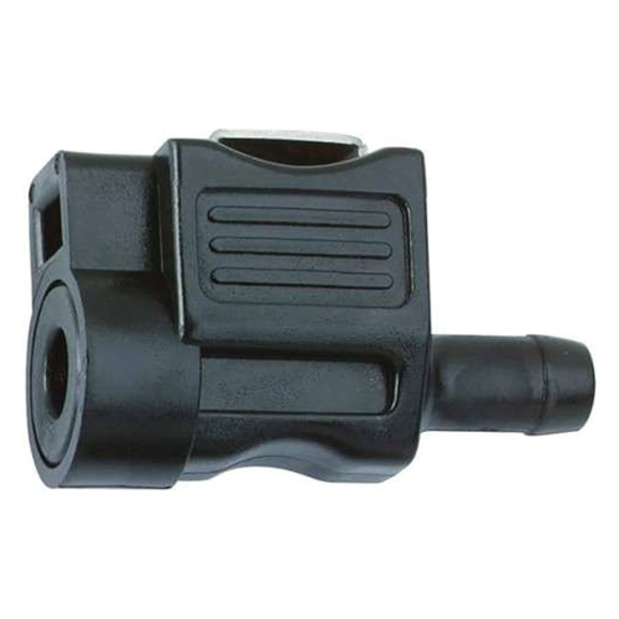

• 8900-6: Hose female fitting in acetal for the engine end. This version is used at the Honda outboard side of the fuel hose and has the rectangular locking post style.

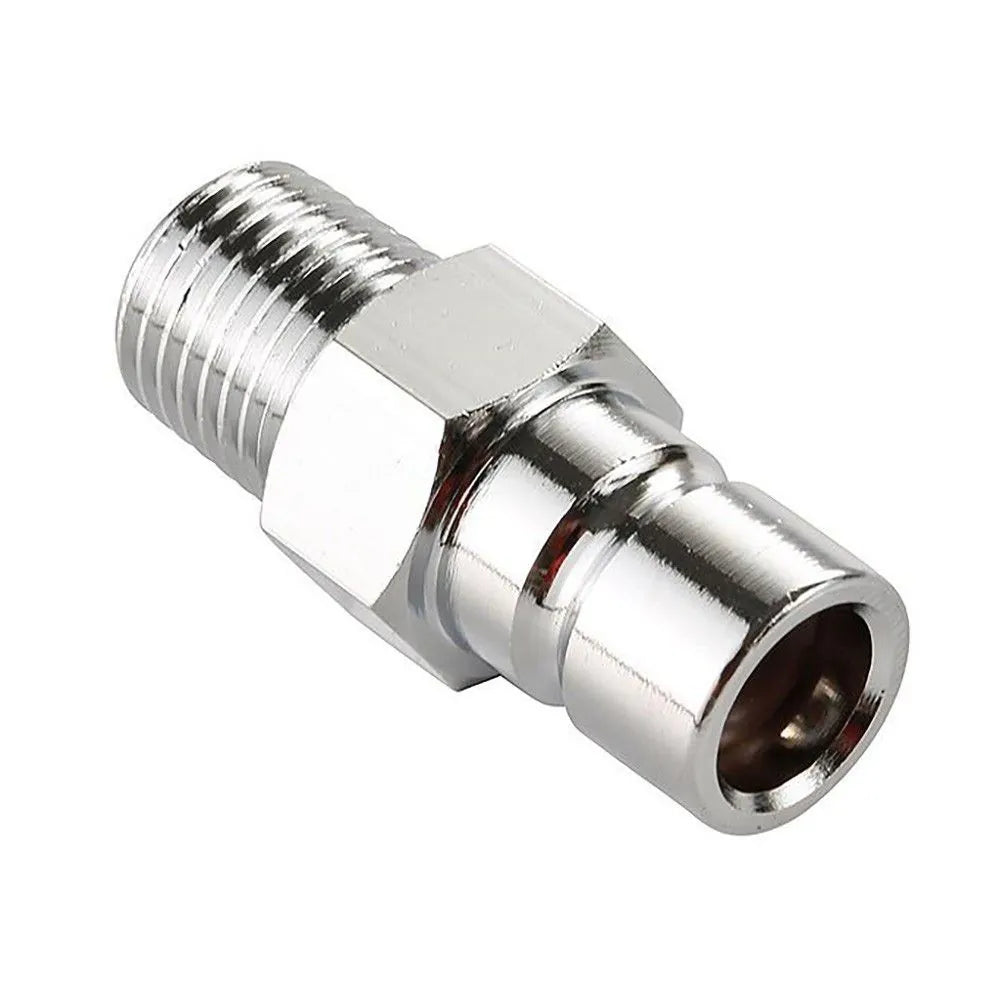

• 8901-6: Tank male fitting in chrome-plated brass for 90HP+ large-bore applications. This version uses a 1/4 inch male NPT thread and mates with the 8902-6 hose fitting.

Installation and fit

Match the fitting to the exact connection point before installation: hose female for the fuel line, tank male for the tank outlet, or engine-end hose female for the outboard connection. The hose barb versions are intended for 3/8 inch I.D. fuel hose, so the hose size should be confirmed before replacing an existing connector.

Threaded fuel fittings should be installed with fuel-compatible thread sealant on the threads. Hose clamps are not included, so the correct clamps for the fuel hose and installation method need to be supplied separately.

Use cases on board

This range is a practical match for replacing worn Honda fuel connectors, setting up a spare fuel line, or pairing a portable tank with the correct large-bore fitting. It suits small-boat and outboard installations where the buyer needs to match the connector location and fuel hose size rather than replace the full fuel system.
