Vimar Eikon RJ12 Phone Jack, 6-Position 6-Conductor, Screw Terminals

Overview

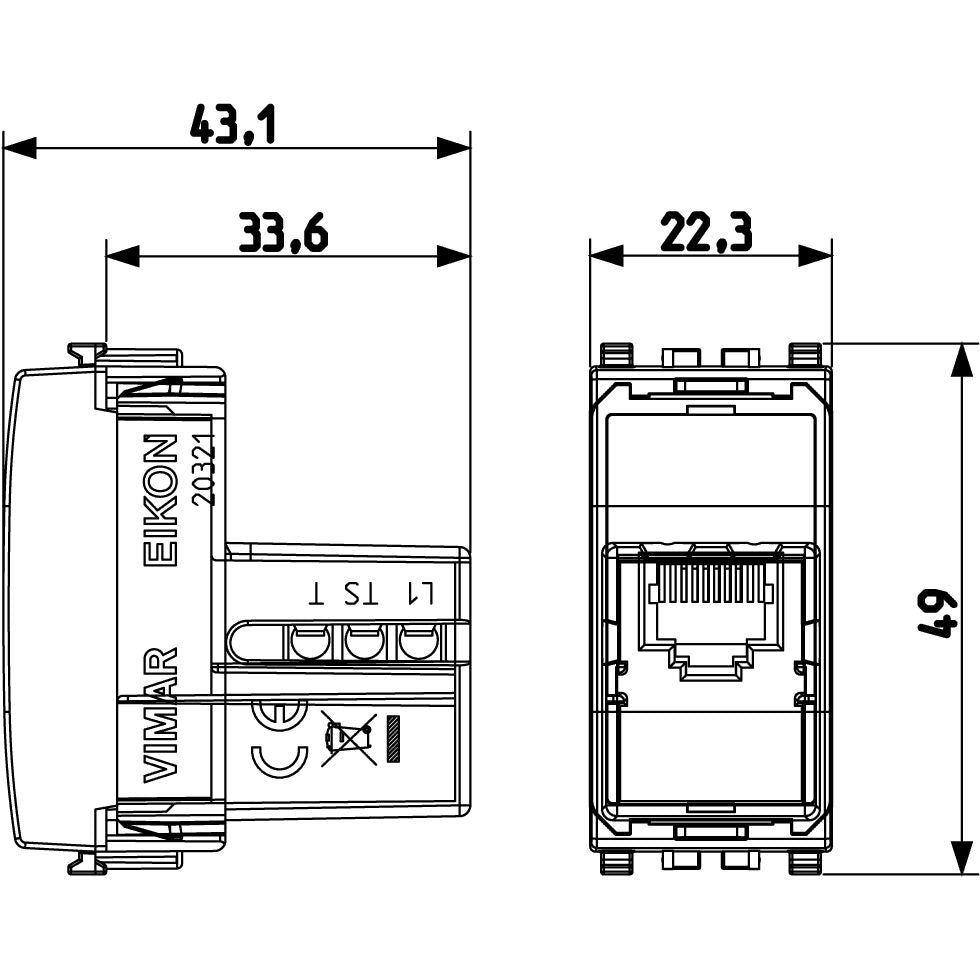

The Vimar Eikon is a flush-mounted RJ12 phone jack insert for modular communication points in the Eikon wiring range. It uses a 6-position 6-conductor RJ12 connection with screw terminals, takes one module in the system, and measures 22.30 mm wide, 49.00 mm high, and 43.10 mm deep.

This is a communication insert for protected interior spaces, not an exposed-weather fitting. The body is thermoplastic, halogen-free, and finished with a matt surface, with an IP20 rating and clamp mounting for installation inside a compatible Eikon support and plate setup.

On a boat, this kind of outlet makes sense where an RJ12 connection needs to sit flush with other cabin or console controls and stay visually consistent with the rest of the Eikon trim. Check the plug format and pin count on your handset or communication device before ordering, because this outlet is RJ12 6/6 rather than RJ11 6/4.

Key features

• RJ12 phone jack with 6-position 6-conductor 6/6 layout and screw-terminal rear connection
• One-module insert for Vimar Eikon modular domestic switching devices
• Flush-mounted design with clamp fastening
• Thermoplastic body that is halogen-free with a matt finish
• IP20 rating for dry interior installation areas
• No dust cover, hinged lid, or support ring

Variants

This outlet is offered in multiple color configurations within the same Eikon RJ12 6/6 format.

Across the listed versions, the stated difference is color. The connection format, screw-terminal wiring style, one-module footprint, and flush-mounted arrangement remain the same for the range described here.

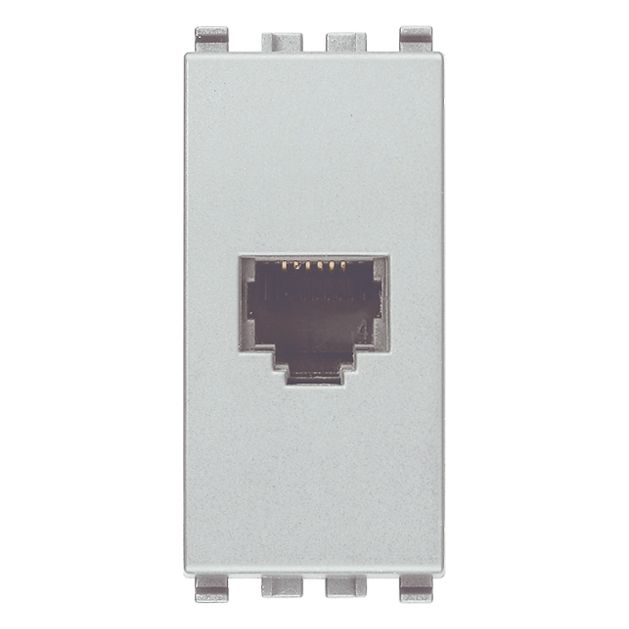

• VM20321.N: Silver. This version uses Vimar's Next silver finish, which helps it sit neatly with silver-toned Eikon frames and cover plates.

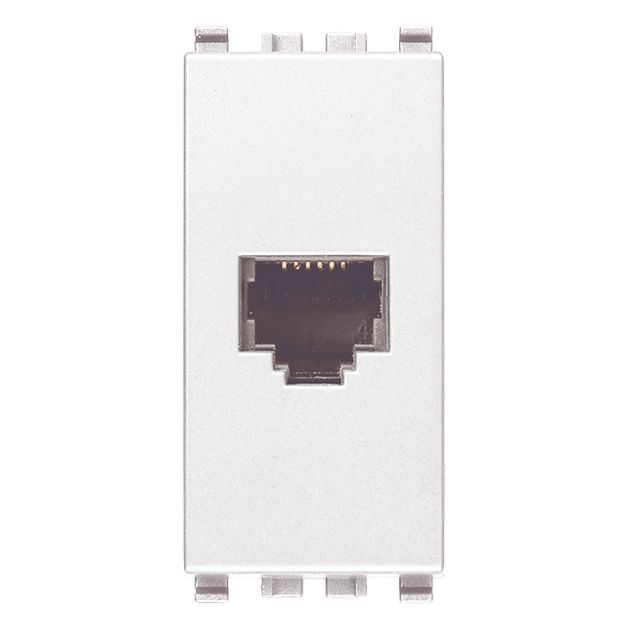

• VM20321.B: White. This option keeps the same outlet format in a white finish for lighter interior panels and trim layouts.

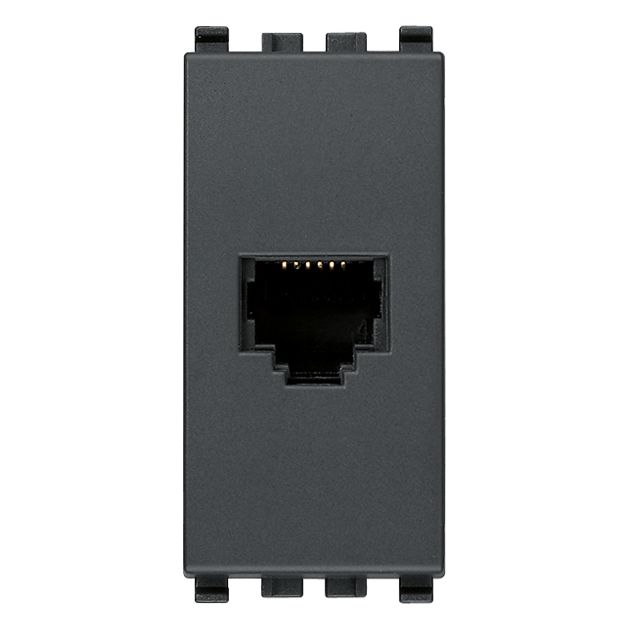

• VM20321: Grey. This version keeps the same outlet format in grey for darker Eikon assemblies and understated panel styling.

Compatibility and fit

This insert is built for the Vimar Eikon modular system and occupies one module, so the main fit check is your existing Eikon support and cover plate arrangement. It is not a standalone bulkhead socket and it does not include a support ring.

The front connection is RJ12 6/6, and the rear side uses screw terminals. That makes it useful for refits where the cable is being terminated on site rather than plugged into a prewired pigtail.

Installation and onboard use

Because the outlet is rated IP20 and has no cover, it belongs in enclosed, dry parts of the boat such as a cabin panel, nav station, or protected console face. It is not the right choice for open deck locations, washdown areas, or places that see direct spray.

This is a sensible match for boats that already use Vimar Eikon devices and need an internal phone or low-voltage communication point in the same modular style. It also works well when appearance matters and the communication outlet needs to line up with nearby Eikon switches and sockets.
