Overview

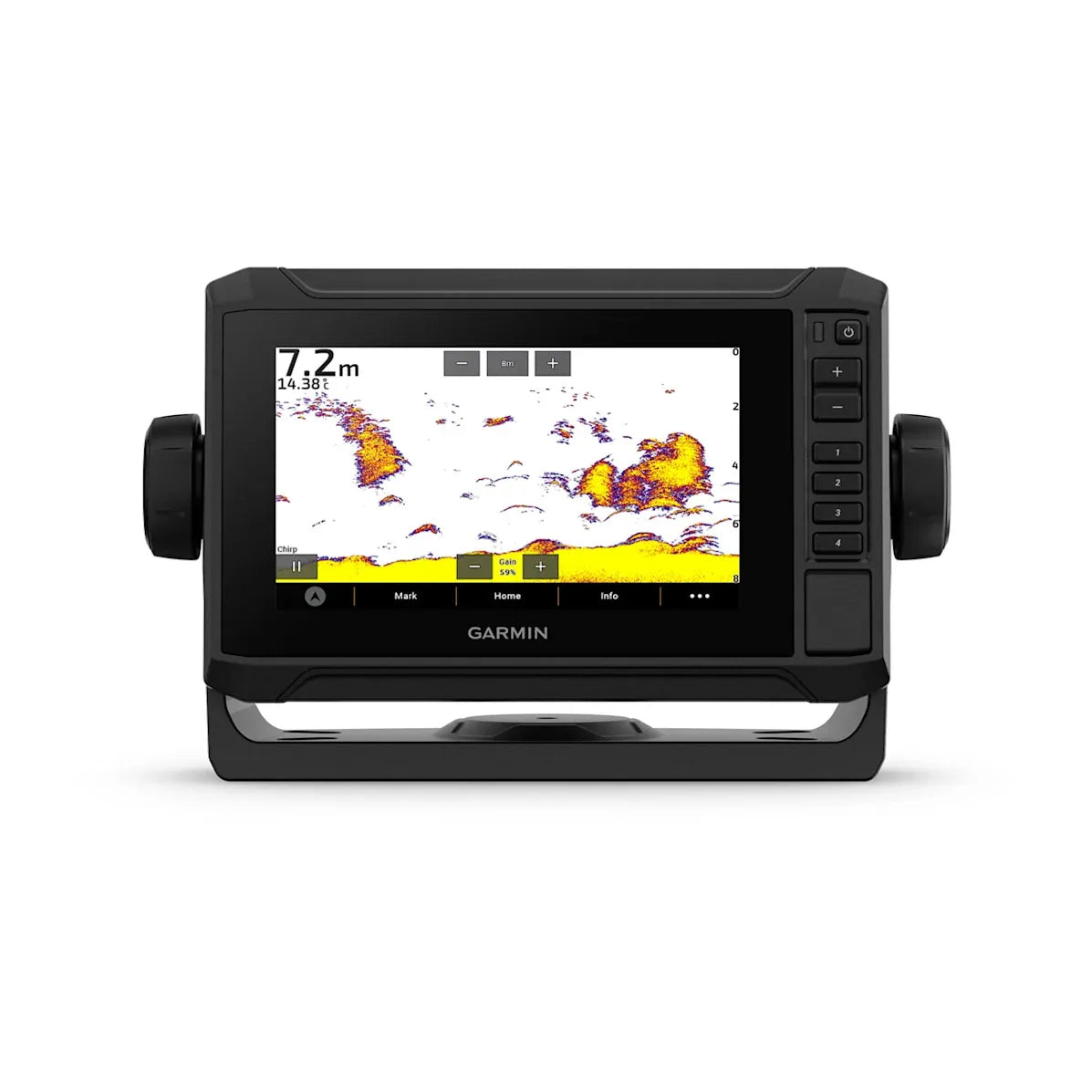

The Garmin 010-02682-00 is a 6 in chartplotter and fishfinder combo packaged with a GT54 transducer and built-in Garmin Navionics+ mapping for Canada inland and coastal waters.

It uses a WVGA touchscreen (800 x 480) with keyed assist, which helps when you are running in spray and still want quick, predictable zoom and waypoint control. The unit and cradle measure 206 x 131 x 67 mm, and the housing carries an IPX7 water rating for exposed helm installs.

Power input is 9 to 18 Vdc with an included 3 A fast-acting fuse. Sonar support covers single-channel CHIRP traditional sonar plus ClearVü and SideVü scanning, with 500 W RMS transmit power. The built-in charts cover more than 8,100 lakes with up to 1 ft contours, which is handy when you are following a breakline or easing into a shallow bay.

Key features

• 6 in WVGA touchscreen (800 x 480) with keyed assist for confident control when conditions are wet

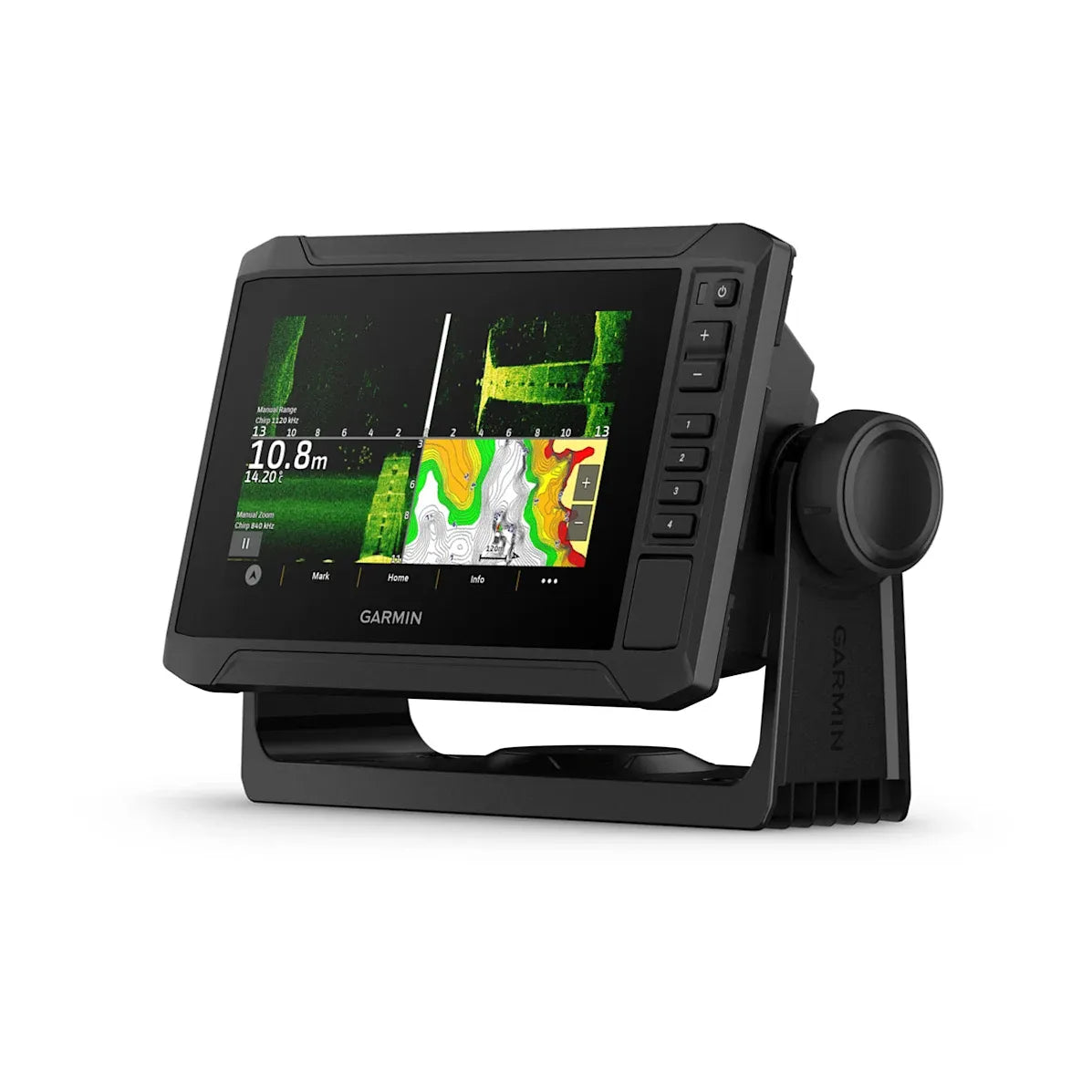

• Built-in sonar support for CHIRP traditional sonar plus ClearVü and SideVü scanning; 500 W RMS transmit power

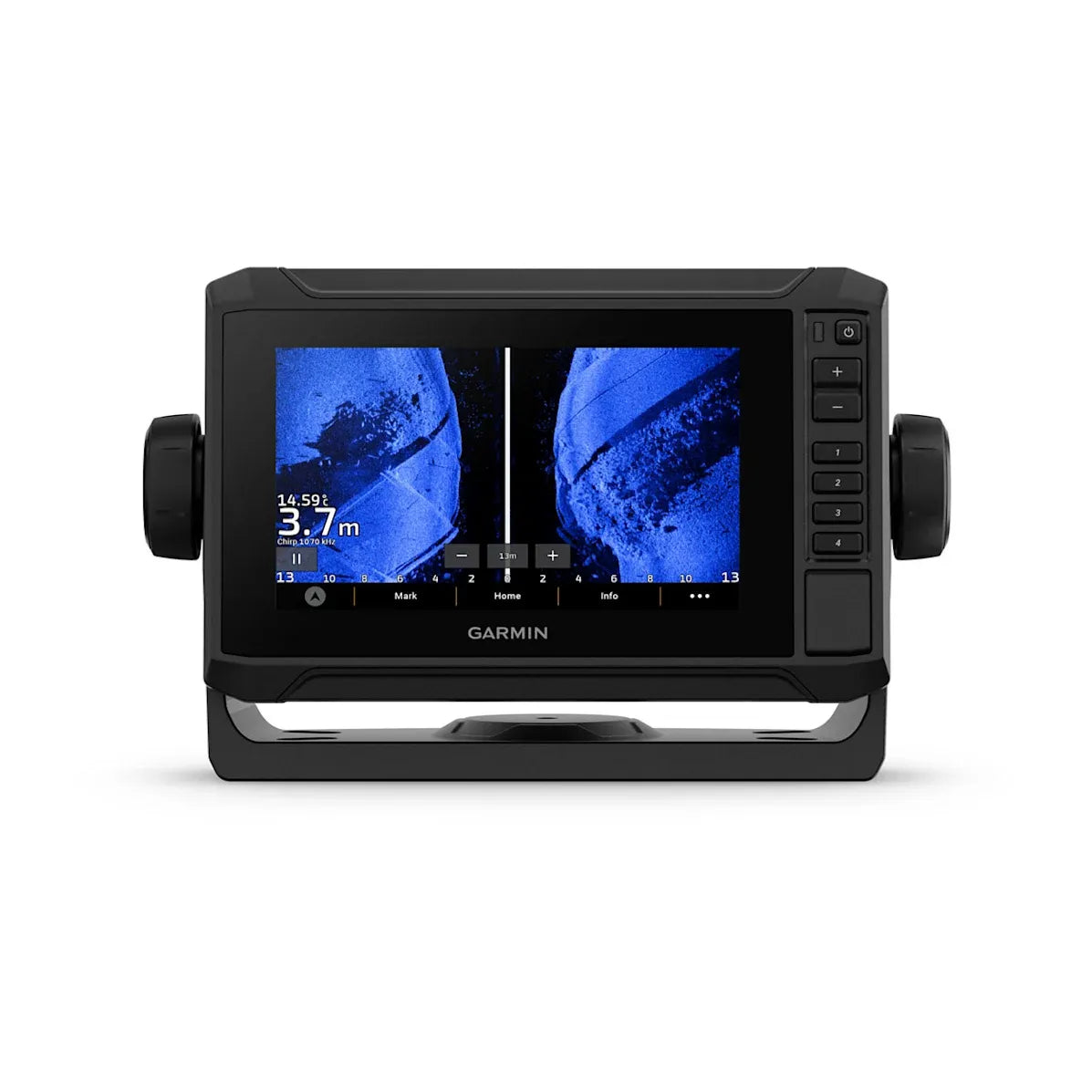

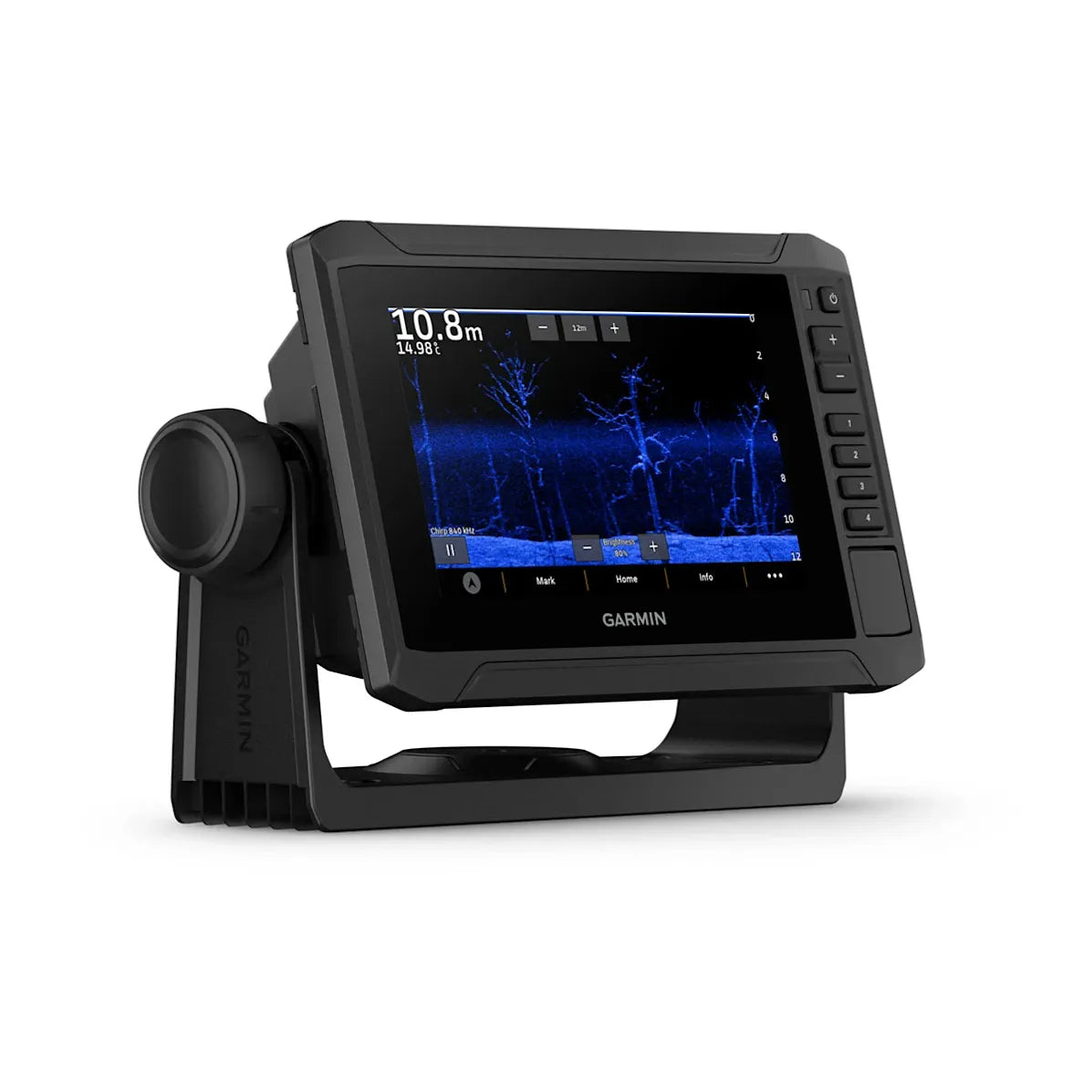

• Includes GT54 transducer for traditional, ClearVü, and SideVü sonar views
• Garmin Navionics+ Canada inland and coastal mapping built in, covering more than 8,100 lakes with up to 1 ft contours
• Built-in Wi-Fi for ActiveCaptain features and wireless sharing of sonar, waypoints, and routes with compatible ECHOMAP UHD2 units
• NMEA 2000 support and a Garmin Marine Network port for tying into compatible onboard electronics
• 9 to 18 Vdc input, included 3 A fuse, and IPX7 water rating for typical small-boat electrical systems and open-console mounting

What’s included

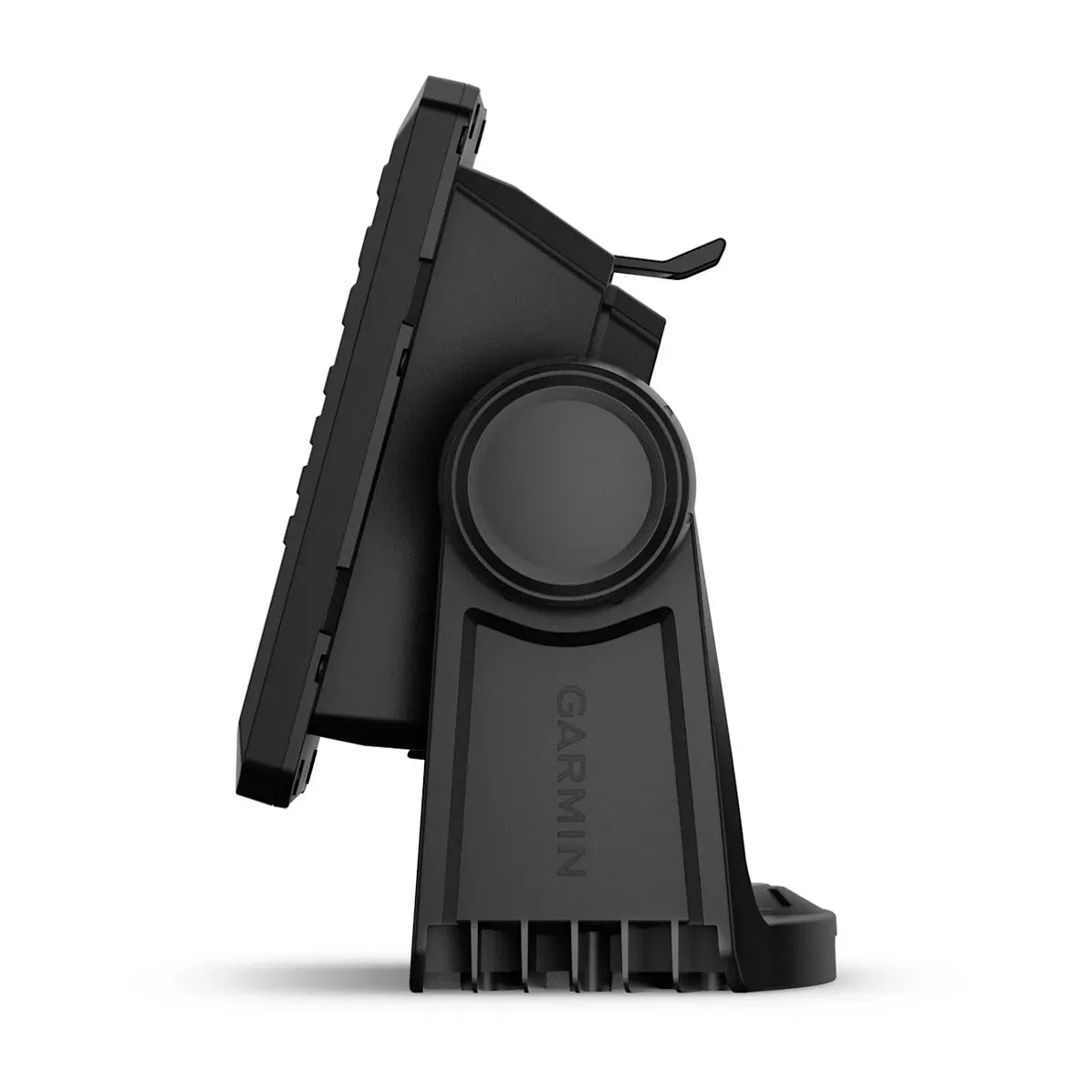

• ECHOMAP UHD2 6 in chartplotter
• GT54 transducer
• Power/data cable
• Tilt/swivel mount with quick-release cradle
• Flush-mount kit
• Protective cover
• Mounting hardware
• Documentation

Installation and setup

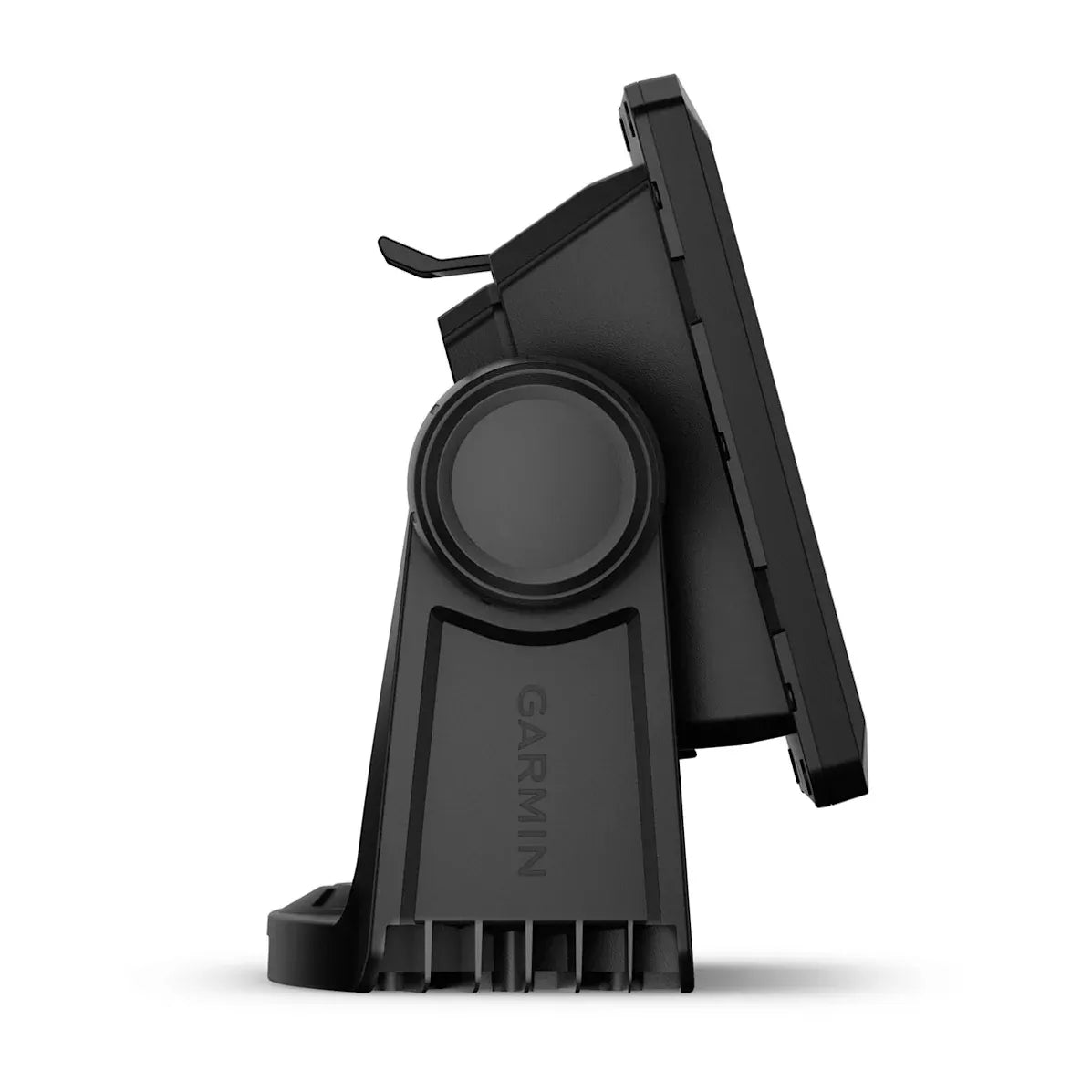

You can mount it on the included tilt/swivel bracket for a simple helm install, or flush-mount it for a cleaner dash. For flush installs, plan for at least 118 mm of clearance behind the unit so the connectors and bend radius are not forced against the bulkhead.

Transducer placement matters more than most people expect. Give the GT54 clean water flow, keep it away from aeration and strakes where possible, and route the transducer cable away from ignition wiring and high-current conductors to reduce noise in the sonar picture.

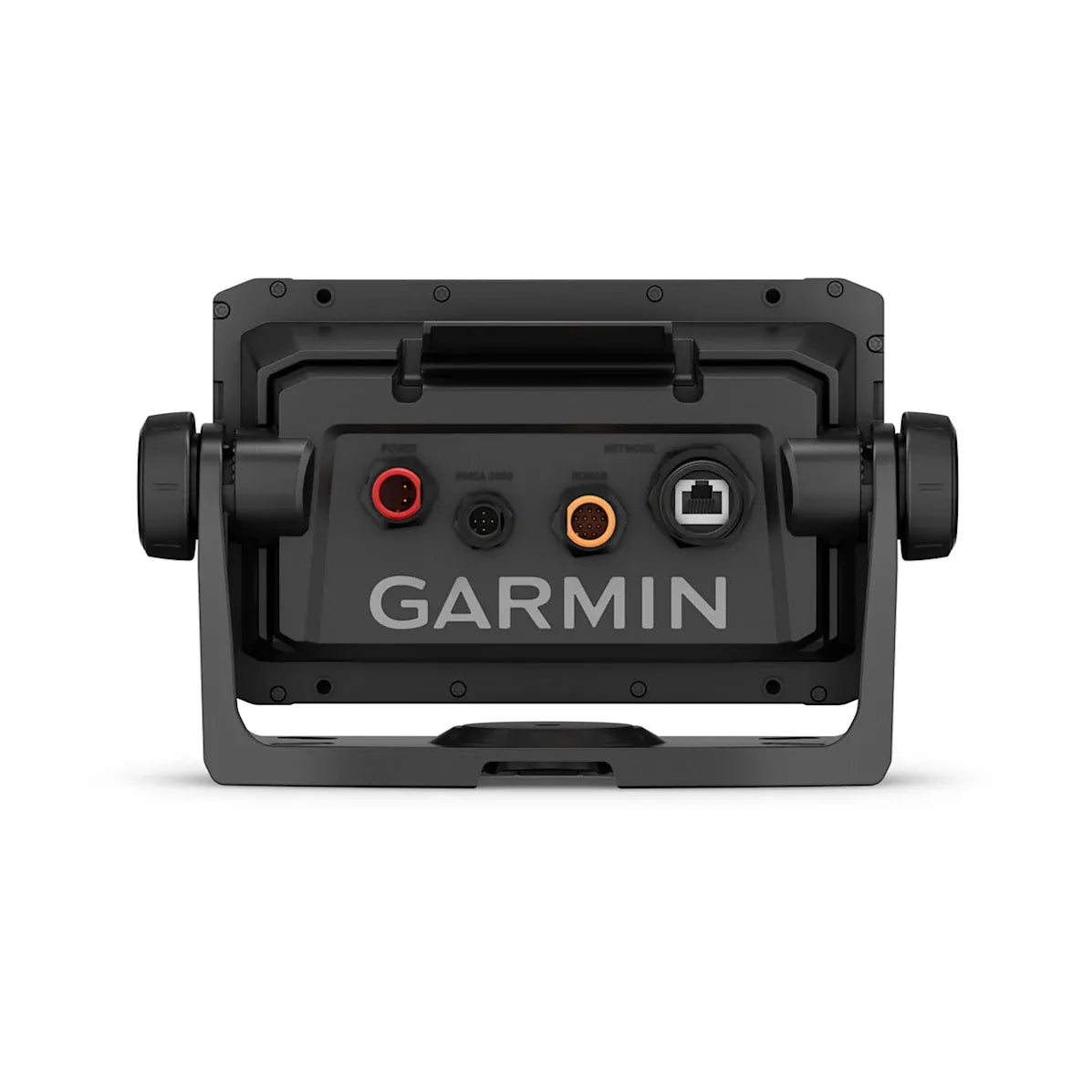

Electrical and system integration

This unit runs on 9 to 18 Vdc, which lines up with standard 12 V systems. On 24 V boats, plan on a DC-DC converter rather than wiring it directly. The included 3 A fuse is meant to live close to the power source on the positive lead.

For networking, NMEA 2000 support lets you bring compatible data onto the screen, and the Garmin Marine Network port supports wired sharing and integration where used on your boat. Built-in Wi-Fi works for ActiveCaptain connectivity and for sharing sonar, waypoints, and routes with another compatible ECHOMAP UHD2.

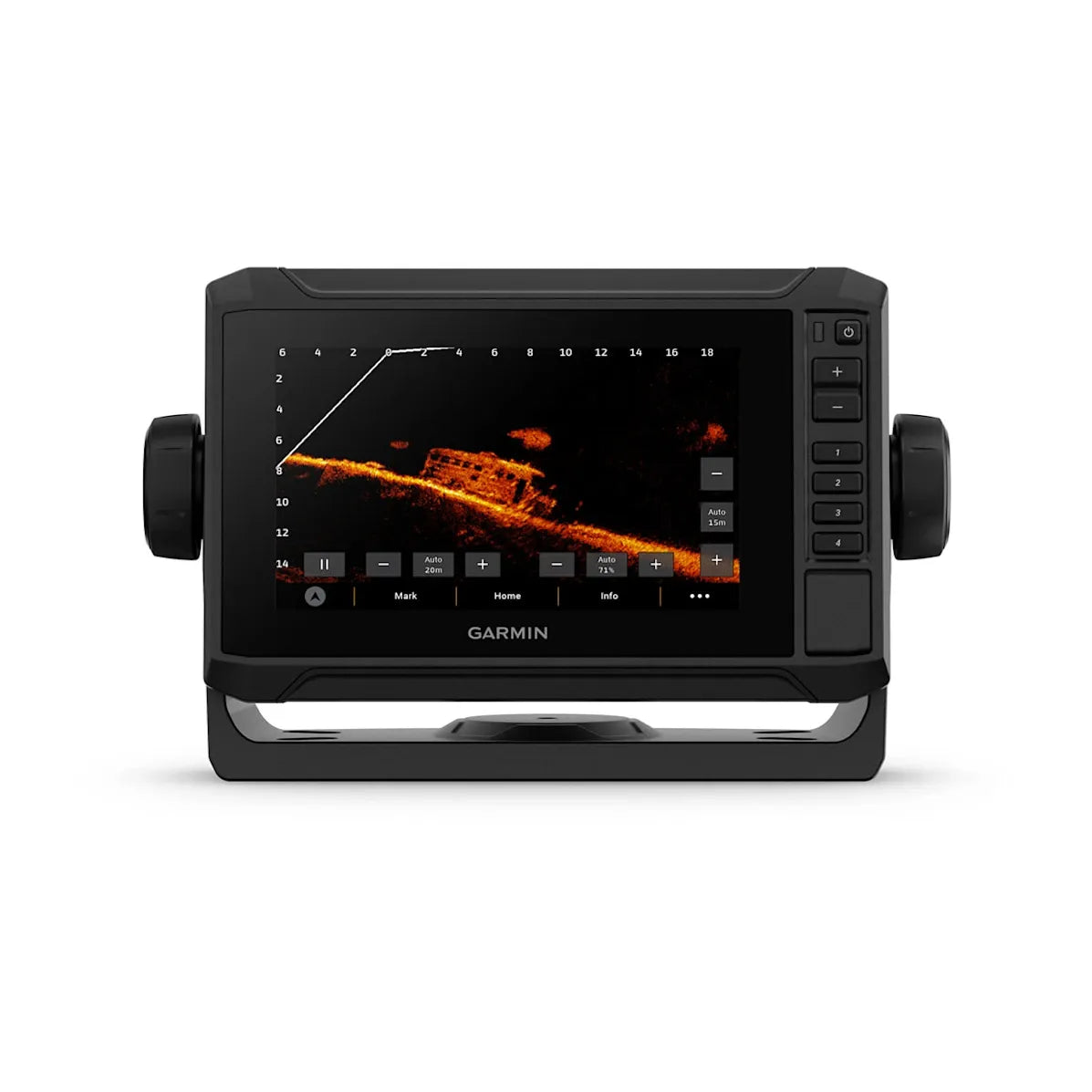

It also supports LiveScope sonar systems, and it can connect wirelessly with compatible Force trolling motors for on-screen control functions and navigation features when you are fishing up front.

Use on board

This setup fits well on small to mid-size fishing boats, center consoles, and trailerable cruisers where a 6 in display is the right size at the helm. It is a practical choice for anglers who want scanning sonar and detailed inland contours in the same screen they use for coastal navigation in Canada.

Maintenance and care

Rinse salt spray off the screen and connectors with fresh water after runs, and use the protective cover when the boat is stored in direct sun. Keep software current through the app workflow, and use the microSD slot when you need to load additional mapping or move user data between devices.
