Overview

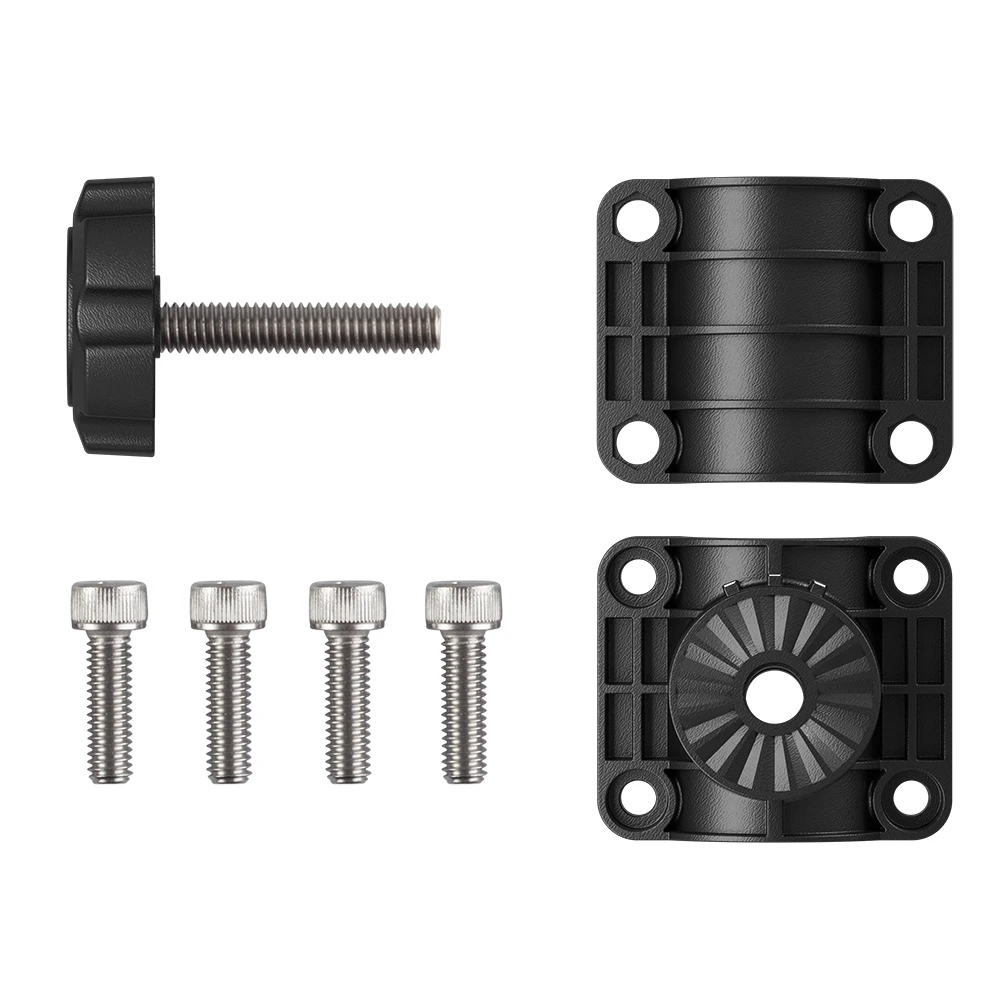

The Garmin 010-13228-03 is a 0-degree pole mount for the LiveScope Plus LVS34 transducer, made to hold the transducer straight down when your pole is vertical.

It is used to keep the viewing angle consistent while ice fishing, and it also works for open-water fishing when you are scanning under the boat with a pole.

Key features

• Made to mount a LiveScope Plus LVS34 transducer on a pole at a 0-degree angle
• Keeps the transducer aligned for a true vertical view when the pole is held straight
• Useful for ice fishing setups where the pole is moved hole to hole without re-setting the angle
• Works for open-water fishing when you are checking structure and fish directly under the boat
• Accessory mount only for positioning the transducer; it does not add electronics or change sonar settings

Installation and setup

Install the mount between your pole setup and the LVS34 transducer so the transducer body sits at a 0-degree orientation relative to the pole. Tighten the fasteners so the transducer cannot rotate when you sweep the pole or bump bottom.

After mounting, put the pole in the water and confirm the picture matches the direction the transducer is pointed. Small alignment tweaks at the bracket make a noticeable difference when you are working tight targets.

Compatibility and fit

This mount is intended for the LiveScope Plus LVS34 transducer. If you are running a different LiveScope transducer or a different mounting style such as trolling motor, transom, or perspective, the bracket geometry can be different.

For the cleanest fit on board, check that your pole diameter, clamps, and stowage location allow the transducer to hang vertical without hitting the hull, skeg, or trailer bunks when you deploy and retrieve the pole.

Use on board

This mount is a good match for anglers who switch between ice fishing and open-water trips, or anyone who prefers a pole-deployed LiveScope Plus LVS34 for precise vertical scanning around docks, brush piles, and steep breaks.
