Overview

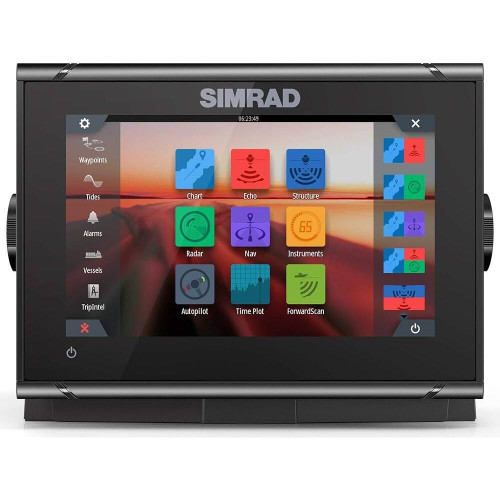

The Simrad 055-14838-001 is a remanufactured GO7 XSR 7-inch touchscreen chartplotter and fishfinder package that includes an Active Imaging 3-in-1 transducer and a C-MAP Discover chart card. The display runs at 800x480 resolution with 1200 nits of brightness, and it powers from 10 to 17 V DC with a recommended 3A fuse. The housing is rated IPX6 and IPX7 for spray, rain, and washdowns at the helm.

On the navigation side, it has an internal GPS receiver with a 10 Hz update rate and 32 channels, plus a microSD slot for charts and updates. For system integration, there is a NMEA 2000 Micro-C port for networked data and an Ethernet connection for compatible radar and other supported accessories. Built-in Wi-Fi and Bluetooth make it easy to mirror the screen to a phone or tablet and handle updates through an onboard hotspot.

This setup fits boats where space is tight but you still want one screen for charting, depth, and structure detail, such as center consoles, bay boats, and smaller cruisers that run inshore and nearshore.

Key features

• 7-inch touchscreen display with 800x480 resolution and 1200 nits brightness for visibility in direct sun
• Power input 10 to 17 V DC, typical draw 12 W, max 20 W, with a recommended 3A fuse
• IPX6/IPX7 water rating for exposed helm installs
• Built-in GPS receiver with 10 Hz update rate and 32-channel tracking
• Active Imaging 3-in-1 transducer included, combining CHIRP (83/200 kHz), SideScan and DownScan (455/800 kHz) in one transducer
• NMEA 2000 Micro-C networking for sharing data and receiving AIS targets over the network
• Ethernet (5-pin yellow connector) for compatible radar connectivity, plus internal Wi-Fi and Bluetooth
• Bracket or panel mount capable, with a 197 x 141 x 82.7 mm footprint (no bracket) and 1.32 kg weight

What’s included

• GO7 XSR multifunction display (remanufactured)
• C-MAP Discover chart card
• Active Imaging 3-in-1 transducer
• Mounting bracket
• Suncover
• Power cord

Installation and setup

Plan the mounting location so the touchscreen can be reached safely from the helm and stays readable when you are standing. The unit supports bracket mounting for easy access and panel mounting for a cleaner dash install. Allow room behind the panel for the 82.7 mm depth and for cable bends without stressing connectors.

Wire it to a clean 12 V DC supply (10 to 17 V DC operating range) and protect the circuit with the recommended 3A fuse. Even with the IPX6/IPX7 rating, it helps to route cables with drip loops and keep connections out of standing water inside the console.

Network and expansion

The NMEA 2000 Micro-C port lets the display share and receive common onboard data such as GPS position, heading sources, engine information, and AIS targets when those devices are on the same backbone. Wi-Fi can also be used to export NMEA 0183 data for compatible apps and integrations, which is useful when bridging older gear or software into a newer helm.

The Ethernet connection supports compatible radar installations and certain supported accessories. If you are building out a system over time, this display gives you a straightforward path from standalone navigation to a networked helm.

Sonar on the water

With the included Active Imaging 3-in-1 transducer, you get a traditional CHIRP view along with SideScan and DownScan for reading structure, edges, and bait holding areas. For best results, mount the transducer where it stays in clean water flow at speed, and keep the cable run protected from abrasion inside the rigging tube or chase.

The display also supports CHIRP, DownScan, and ForwardScan sonar functions when paired with compatible transducers, so it can grow with the way you fish and cruise.

Charts and route planning

The included C-MAP Discover chart card adds detailed vector charting with features like tides and currents, custom depth shading, and high-resolution bathymetry where available. The GO7 XSR also supports other optional cartography choices, which helps when you travel between regions or prefer a specific chart ecosystem for your local waters.
