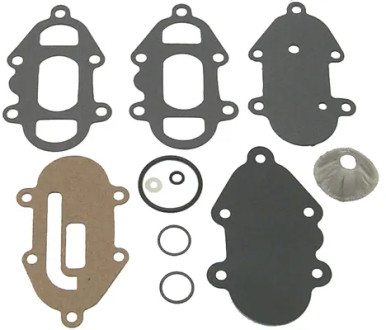

Sea Star Solutions Fuel Pump Diaphragm Kit - Sierra Marine Engine Parts - 18-7812 (118-7812)

Sierra's fuel pump diaphragm kit has high-quality components to ensure maximum performance and dependability. Diaphragm pumps work using a composite membrane that bends up and down over a fuel bowl. The bowl contains an input and an output, each with a check valve to secure a one-way fluid flow. As the diaphragm rises, it generates a vacuum that draws gasoline from the fuel tank into the fuel bowl.

Flexing the diaphragm reduces or increases the capacity of the pump chamber. The camshaft operates a lever on the pump, which pulls down the diaphragm and allows the pump to pull fuel. A diaphragm spring forces the diaphragm up, allowing the pump to release gasoline.

Key Features:

• Fuel Pump Repair Kit for Mercury Outboards
• Comes with O-Rings 18-7411 and 18-7120
• Precision-engineered
• Check part numbers to guarantee a perfect fit.

Product Specifications:

• Brand: SeaStar Solutions
• SKU: 18-7812
• UPC: 808282259969
• Weight: 0.04 LBS
• Product Dimensions? in inches (LxWxH) : 1 x 1 x 1
• Exterior: ?Machined
• Lift Type?: Motor
• Alternate Products SKU: 1399-00114, 18-7812
• Manufacturer Part Number (MPN): 118-7812
• Replaces Products: 47-7812, GLM40360, 808282259969, 3-28005, 92-40360D, AP114, 9-37751

Fuel Pump Repair Kit fitting Mercury Outboard applications

This product replaces:

47-7812, GLM40360, 808282259969, 3-28005, 92-40360D, AP114, 9-37751
