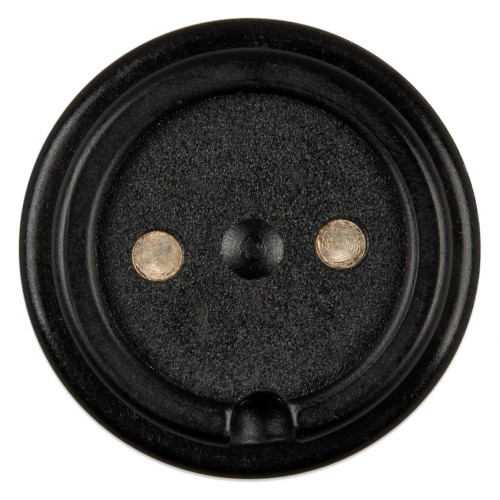

Victron Energy MagCode Power Charger Connector, For Blue Smart IP65 Chargers, 12V, 15A Max

Overview

The Victron Energy MagCode Power is a magnetic 12V charging connection accessory range for Victron Blue Smart IP65 Chargers that use a DC connector. It gives the charger a quick-connect interface for repeated battery charging where a fixed inlet or matching clip is more convenient than handling ring terminals or clamps each time.

The range is rated for 12V use up to 15A. The Power Clip variant includes a 30A ATO fuse, while the Power Port variant serves as the fixed magnetic inlet that the clip connects to. On a boat, this setup makes sense for battery charging points in lockers, cockpit-adjacent service areas, tender garages, workshops, and other places where a tidy plug-in connection is useful.

Key features

• Magnetic 12V connection system for Victron Blue Smart IP65 Chargers with a compatible DC connector.
• Rated for charging currents up to 15A, matching common 12V Blue Smart IP65 charger configurations.
• Power Clip variant uses a 30A ATO fuse for protected connection on the charger lead side.
• Power Port variant creates a fixed inlet point for a repeatable charging connection on board.
• Useful for installations where the battery charger is connected and disconnected often, without leaving loose clamp leads in the way.

Variants

This product is offered in two MagCode Power configurations. The Clip and Port are different parts of the same magnetic 12V charging connection setup, so the correct selection depends on which side of the connection is needed for the installation.

Both variants are part of the MagCode Power range for Victron Blue Smart IP65 Charger use and are rated for 12V operation up to 15A. The Clip is the charger-side connector, while the Port is the fixed inlet side used as the receiving connection point.

• BPC900500014: Type Clip. This is the magnetic connector used with the charger lead and includes a 30A ATO fuse, making it the moving side of the MagCode charging connection.

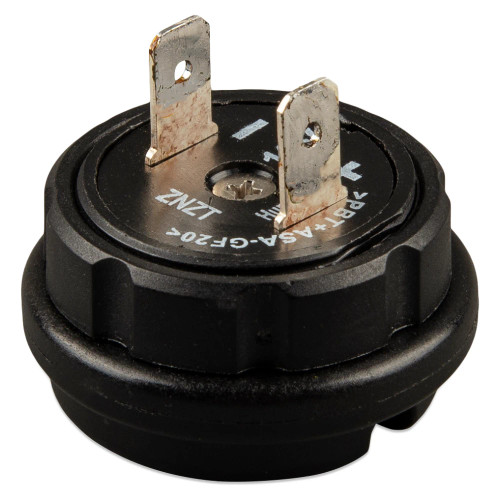

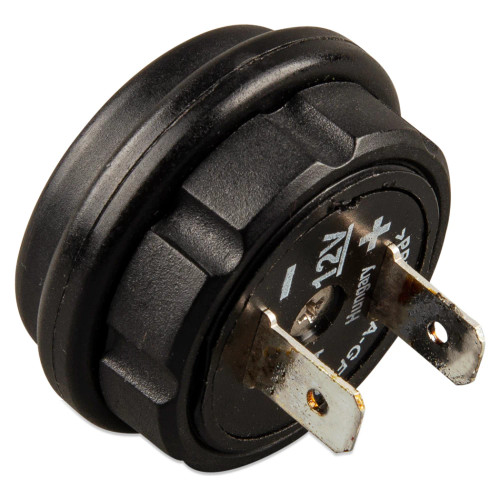

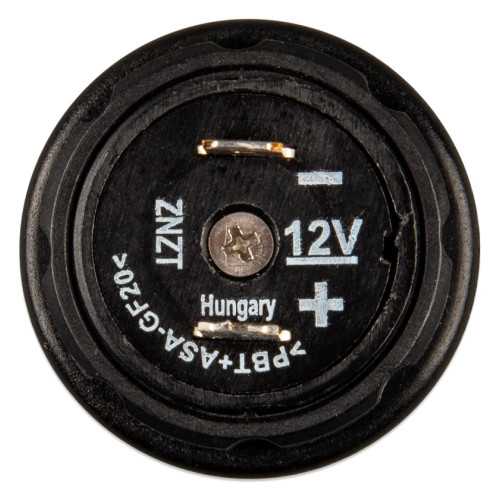

• BPC900520014: Type Port. This is the fixed magnetic inlet that pairs with the MagCode Power Clip, giving the boat a dedicated charging connection point.

Installation and setup

The MagCode Power setup is most useful when the charger will be connected regularly in the same location. The Port can be placed where the charging lead can reach cleanly, and the Clip can stay with the charger lead so the connection is quick each time the battery needs maintenance charging.

As with any boat DC charging connection, the installation should keep polarity correct, protect wiring from chafe, and place the connection where it is not exposed to standing water, foot traffic, or strain from a hanging cable. The system is for 12V charging use and should be matched to the correct Blue Smart IP65 Charger configuration.

Use cases on board

This accessory range is a good fit for owners who use a Victron Blue Smart IP65 Charger for routine 12V battery charging and want a cleaner connection than temporary clamps. It is especially practical for small craft, trailer boats, service batteries, tenders, and dockside maintenance setups where the charger is removed or stored after use.
