Overview

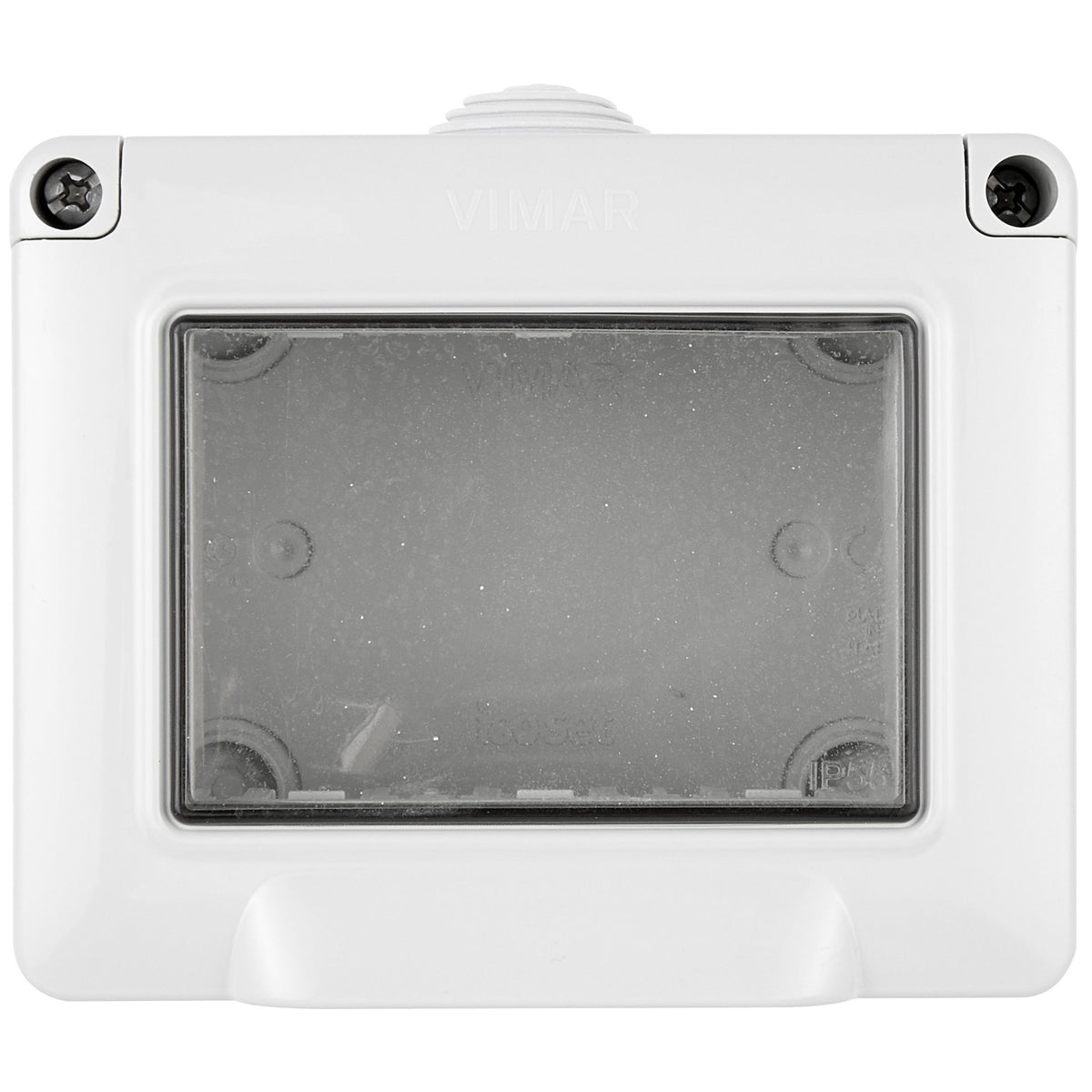

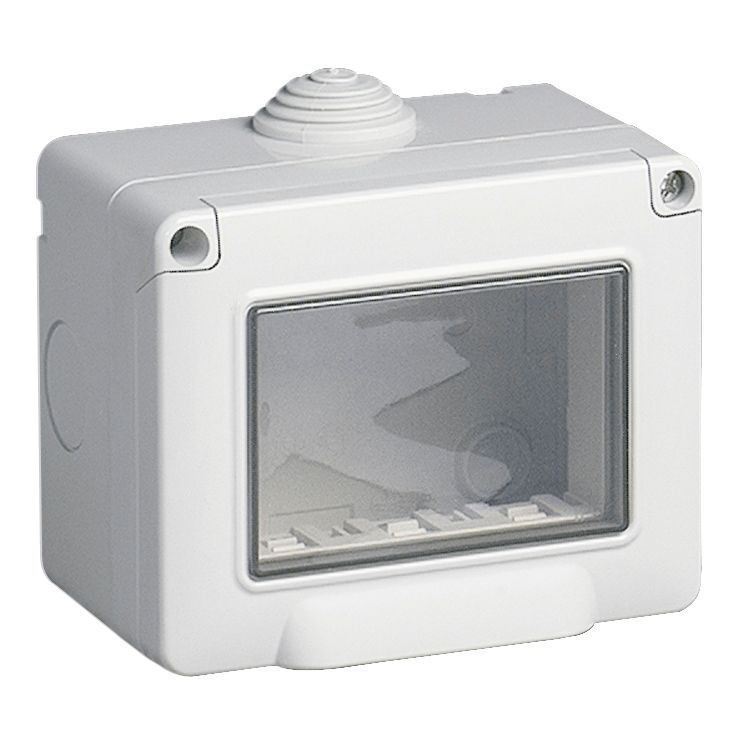

The Vimar VM14903 is a 3-module surface enclosure that gives Vimar Eikon, Arké, and Plana devices a protected mounting point in areas that see spray, washdowns, or general exposure on board. The enclosure carries an IP55 rating, so it is suited to installations where you want resistance to dust ingress and water jets with the cover closed.

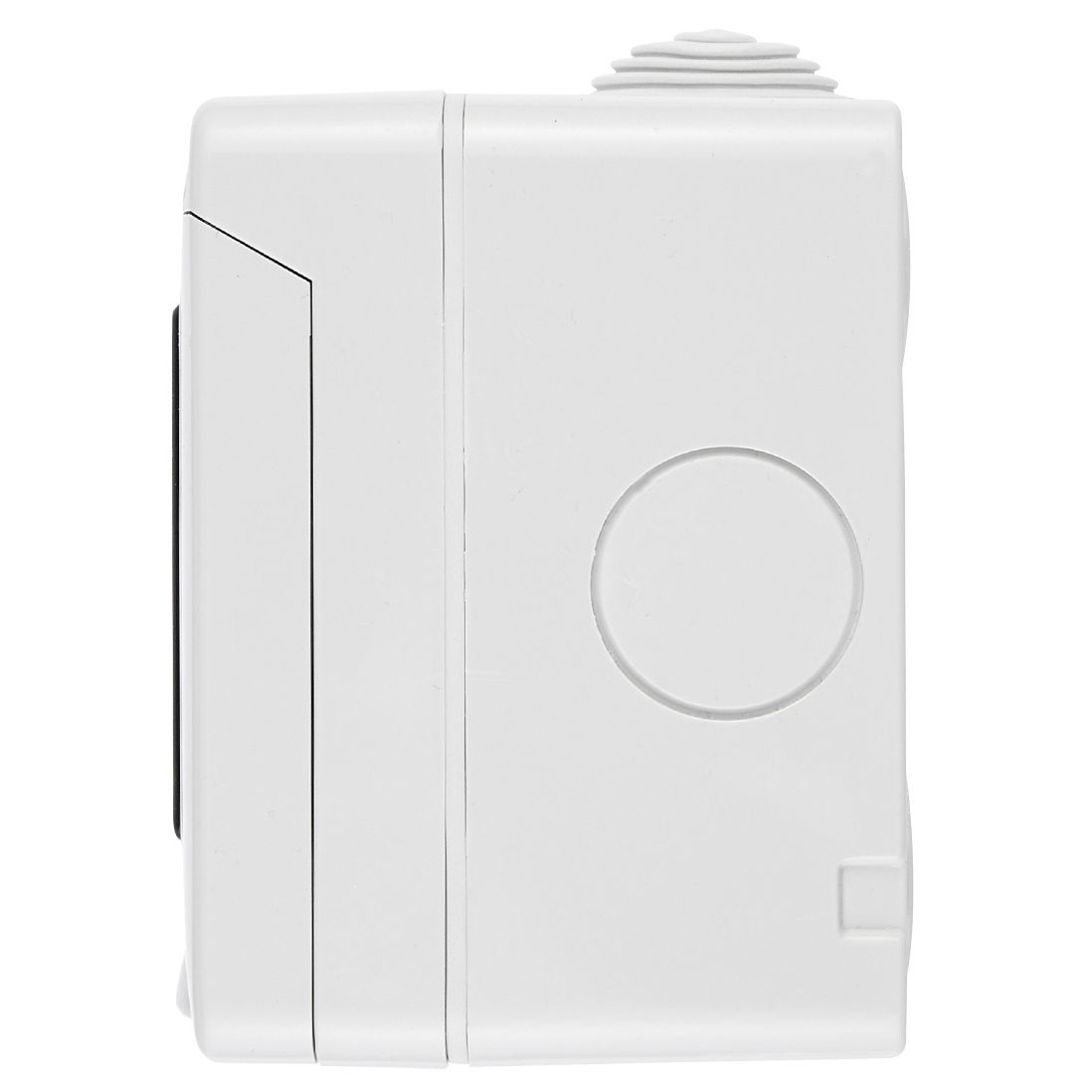

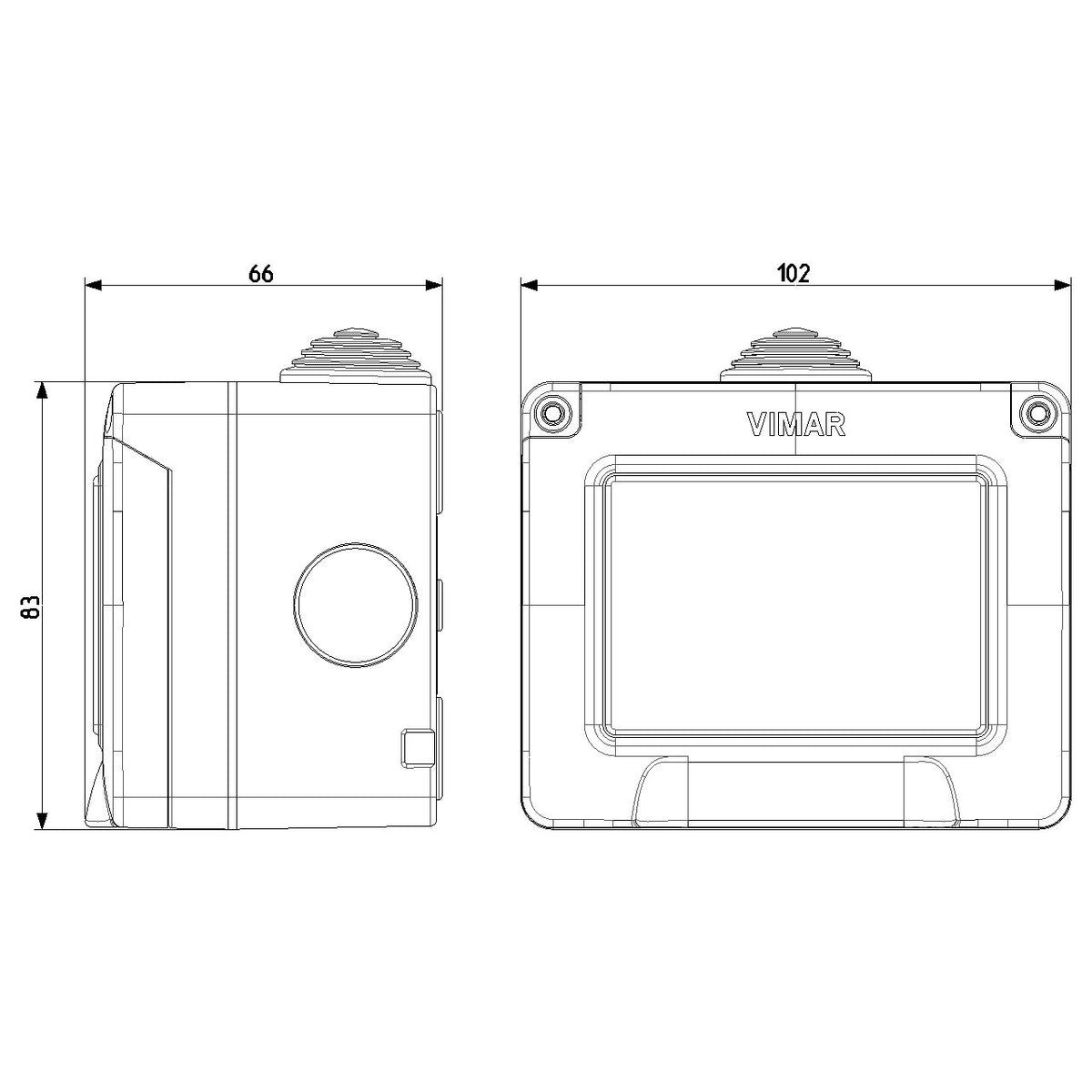

It is a plastic housing with an overall size of 10.2 x 8.3 x 6.6 cm and a weight of about 0.124 kg, which helps when you are planning clearances on bulkheads, console faces, and cabin partitions. The electrical rating depends on the Vimar modules installed inside, since the enclosure itself is a protective body rather than an electrical component.

Key features

• 3-module surface enclosure for Vimar Eikon, Arké, and Plana wiring devices
• IP55 protection for installations that need resistance to dust ingress and water jets with the cover closed
• Overall size of 10.2 x 8.3 x 6.6 cm for practical clearance checks behind panels and in lockers
• Plastic construction with a fully insulated enclosure body
• Surface-mount format for refits where you do not want to cut in a flush box

Compatibility and fit

This enclosure is sized for 3-module Vimar devices and cover plates in the Eikon, Arké, and Plana families. If your current installation uses a different module standard or a wider multi-gang plate, confirm the module format before ordering.

Installation and setup

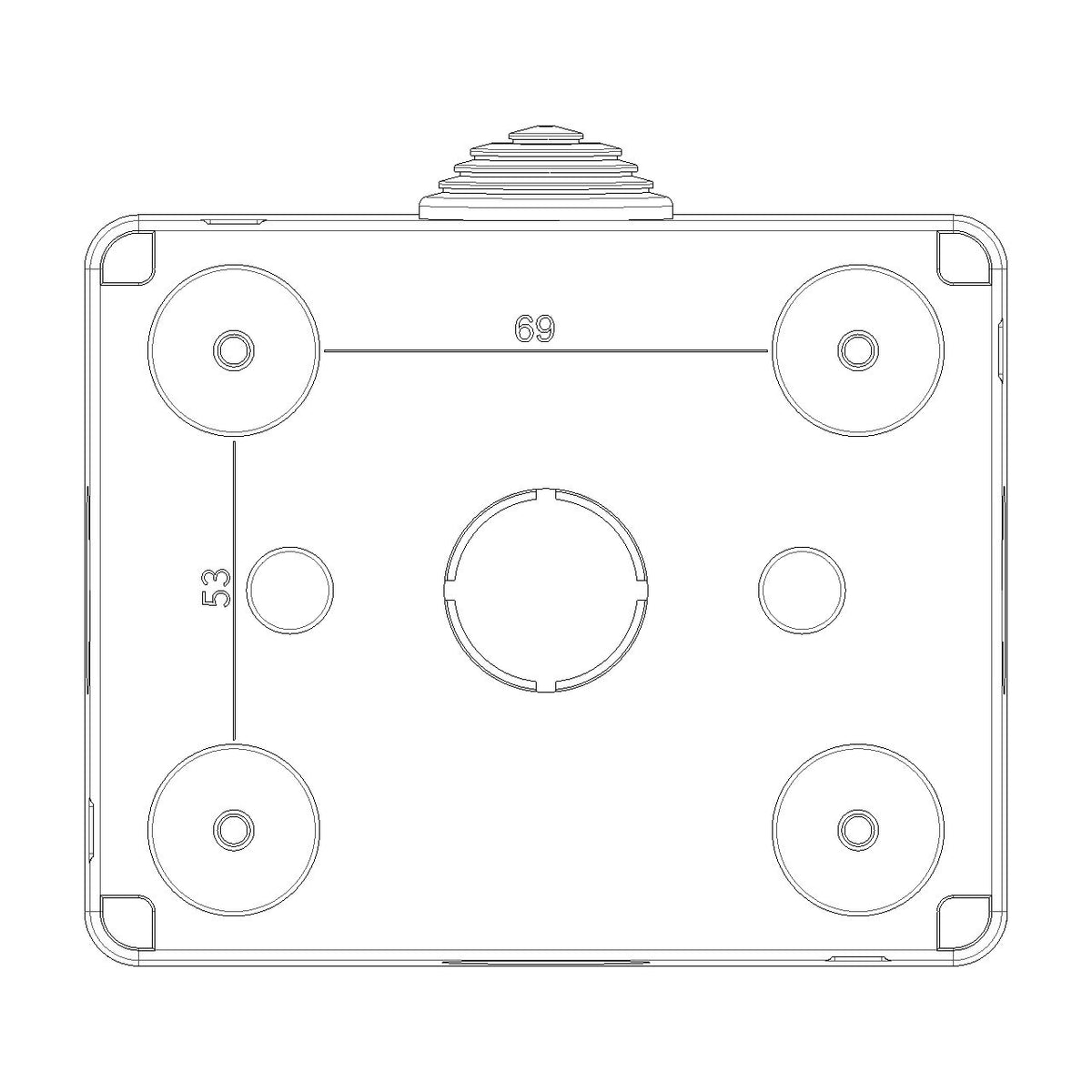

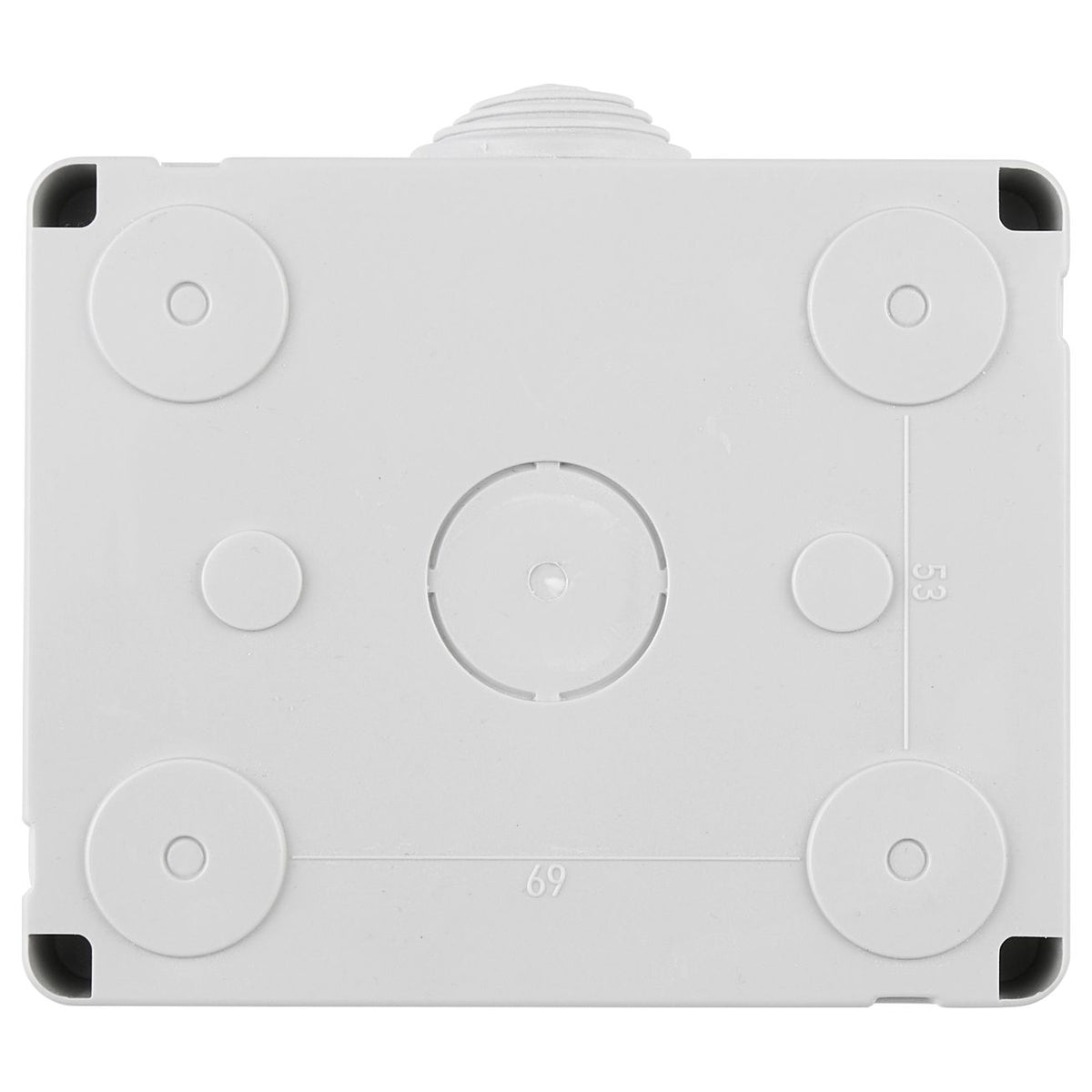

Mount it on a flat, solid surface where the cover can open freely and close without interference from trim, handrails, or coamings. Bring wiring in through a properly sealed cable entry so the protection level is not compromised after installation. In wet zones, keep terminations tidy, support the cable to reduce vibration strain, and use sealed connectors where appropriate for the location.

Use on board

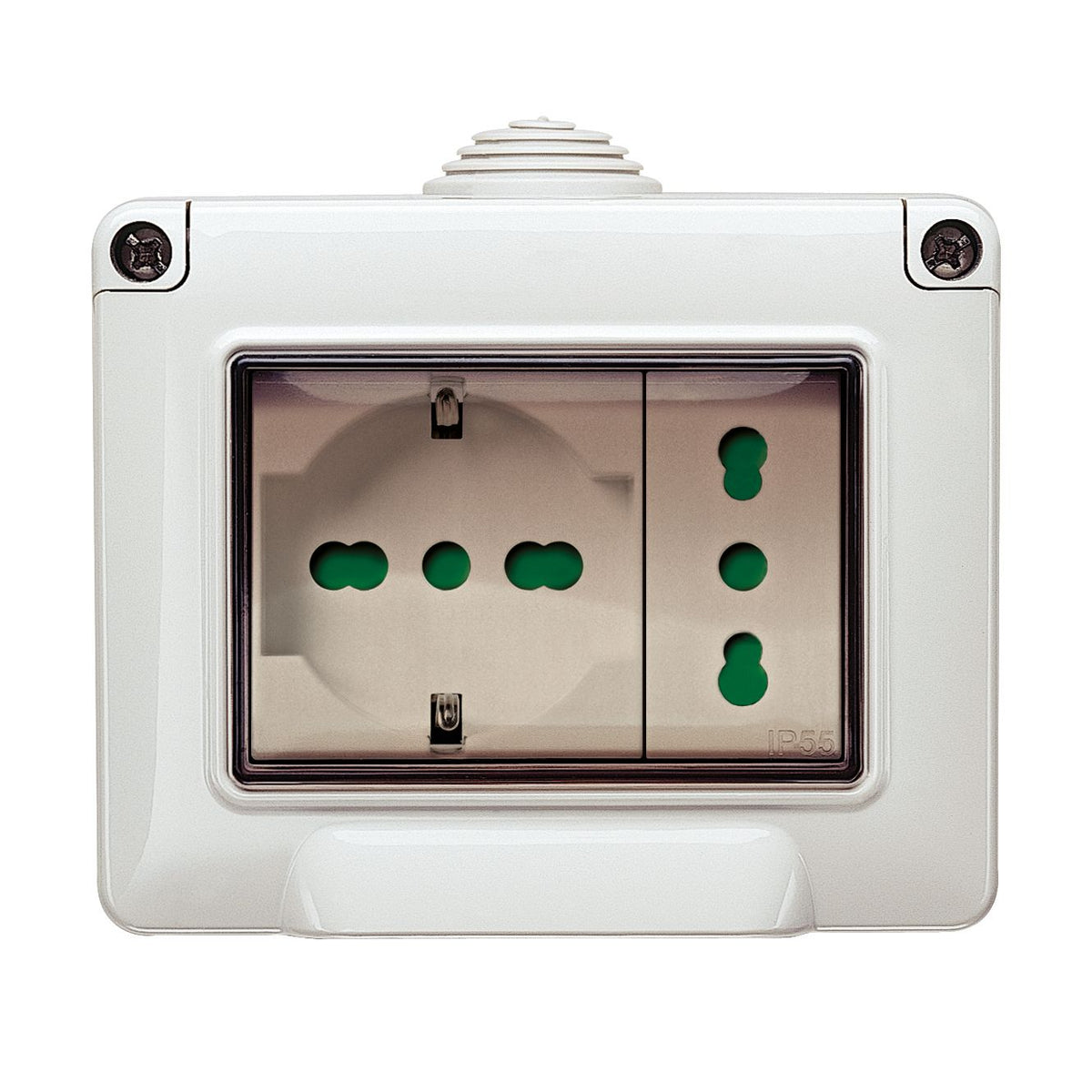

This enclosure is a good match for cockpit and deck-adjacent control points, transom lockers, and other spots where a switch or socket needs extra protection from splash and washdowns. It also fits cleanly in refit work where surface mounting avoids major cutouts in thin liners or molded panels.

What’s included

• 3 x 3-module IP55 surface enclosures
