Overview

The Simrad 000-16219-001 is a rear mount kit made for the NSX3012UW multifunction display.

It lets you mount the 12-inch NSX ultrawide display from behind the panel so the face of the helm stays clean and the display sits flush to the console. The kit uses rear brackets plus stud and thumb nut hardware to clamp the unit to the panel cutout, and a foam gasket helps neaten the edge between the display and the mounting surface.

Because it installs from the back, plan for access behind the dash for fitting the hardware, routing cables, and future service.

Key features

• Fits Simrad NSX3012UW displays for a rear mounted, flush install on the helm or console
• Rear bracket and stud mounting keeps fasteners off the front face of the dash
• Thumb nut hardware makes it practical to snug the mount from behind without specialty tools
• Foam gasket helps reduce small gaps around the bezel for a cleaner finished look
• Works well when you have room behind the panel and want the display sitting flat to the dash

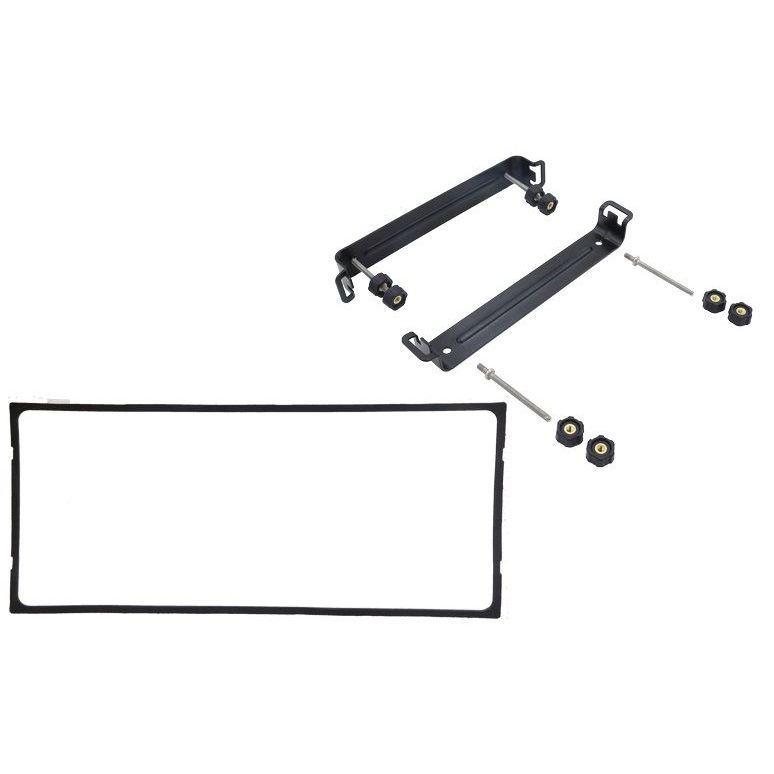

What's included

• 2 rear mounting brackets
• 2 threaded studs
• 8 thumb nuts
• 1 foam gasket

Installation and setup

Dry-fit the display in the cutout first, then position the gasket and brackets from behind before tightening the thumb nuts evenly. Tighten in small steps so the bezel stays square to the panel and the gasket compresses consistently.

Leave enough clearance behind the mounting surface for the display connectors and cable bend radius, and make a small service loop so the unit can be removed later without putting strain on the wiring.

Compatibility and fit

This kit is specific to the Simrad NSX3012UW. Confirm the exact model of your display before ordering, especially if you are working with other NSX sizes or the 15-inch ultrawide version.

Use cases on board

A rear mount is a solid match for new helm builds and refits where you want a tidy dash layout with minimal hardware showing. It also suits boats that see regular vibration and spray, where keeping the display seated flat to the panel helps the installation feel secure.
