Overview

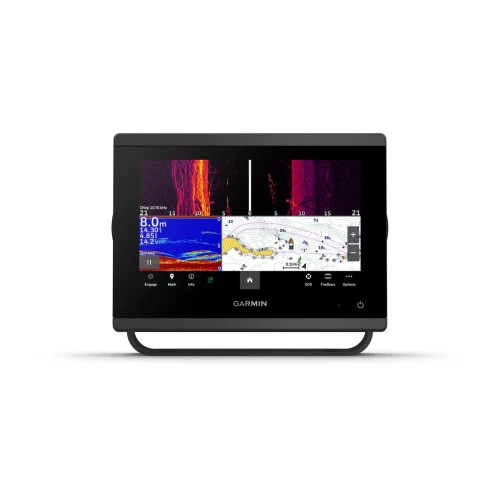

The Garmin 010-02365-02 is a 7-inch GPSMAP 723xsv chartplotter and sonar combo with a 1024 x 600 WSVGA touchscreen display and built-in SideVü, ClearVü and Traditional CHIRP sonar.

It runs on 10 to 32 Vdc so it fits 12 V and 24 V systems, and it carries an IPX7 water rating for normal helm exposure. The housing uses polycarbonate plastic with die-cast aluminum, and the unit measures 7.6 x 5.5 x 2.9 inches and weighs 2.8 lb.

Charts start with a worldwide basemap, with chart cards handled through the two rear microSD slots. It stores up to 5,000 waypoints, 100 routes, and 50 tracks with 50,000 track points.

Key features

• 7-inch WSVGA touchscreen (1024 x 600) with support for polarized sunglasses
• Power input from 10 to 32 Vdc for 12 V and 24 V boats
• IPX7 water rating with a polycarbonate and die-cast aluminum housing
• Built-in sonar output up to 1 kW with Traditional CHIRP, plus SideVü and ClearVü scanning
• ClearVü and SideVü frequency support: 260/455/800 kHz plus 1.0 and 1.2 MHz
• Networking options include Garmin Marine Network, NMEA 2000, NMEA 0183, and J1939
• Dual rear microSD card slots for chart cards and updates
• Bail, flush, or flat mounting support for retrofit and new installs

Installation and setup

The unit can be bail mounted, flush mounted, or installed flat. Plan the mounting position so you can reach the rear connectors and the back-mounted microSD slots after installation, and leave room behind the dash for cable routing and bend radius.

Power is 10 to 32 Vdc and the power lead uses a 6 A, 125 V fast-acting fuse. The power cable also carries NMEA 0183 wiring (one differential input and one differential output), plus accessory-on and alarm leads for optional integrations.

Networking and system integration

For a connected helm, it supports Garmin Marine Network for sharing data across compatible Garmin displays, plus NMEA 2000 for common sensors and backbone devices. NMEA 0183 and J1939 are available for integrations such as VHF and AIS connections, autopilot tie-ins, and supported engine data on a J1939 network.

Built-in wireless connectivity supports app features such as OneChart, smart notifications, and software updates. It also supports BLUETOOTH and ANT+ pairing for compatible remotes and marine wearables.

Sonar and transducer fit

The xsv model includes a 12-pin transducer port and built-in sonar output up to 1 kW. A compatible transducer is required for sounder functions and is not included in the box.

Traditional sonar supports 70/83/200 kHz and CHIRP (low, medium, high). Maximum depth is up to 5,000 ft at 1 kW, with real-world results depending on the transducer and water conditions. It also supports Panoptix and LiveScope live sonar when paired with the required transducer and modules.

Who this fits on board

This is a solid match for boats that want a compact 7-inch multifunction display at the helm and plan to run sonar on the same screen. It also fits well on boats that already have Garmin Marine Network or NMEA 2000 and want the display to share data with other electronics on board.

What's included

• GPSMAP 723xsv chartplotter
• microSD card preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 meters)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Maintenance and care

Use the protective cover when the boat is stored and keep unused connectors capped to reduce corrosion. For cleaning, a fresh-water rinse after salt spray and a soft cloth on the screen helps avoid haze and scratching over time.
