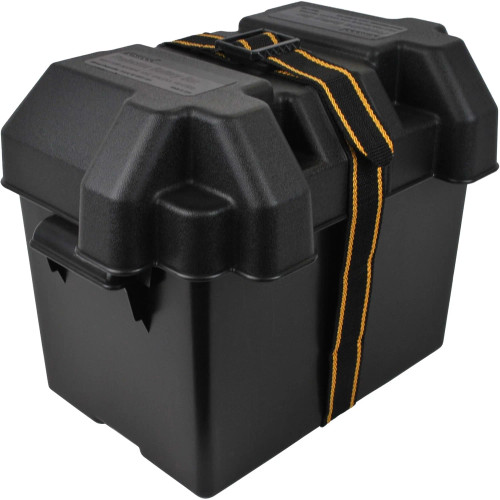

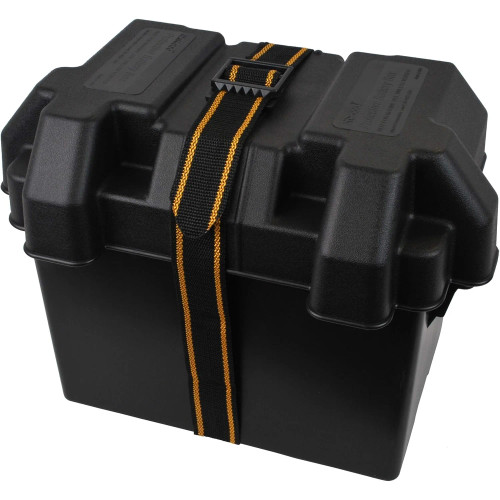

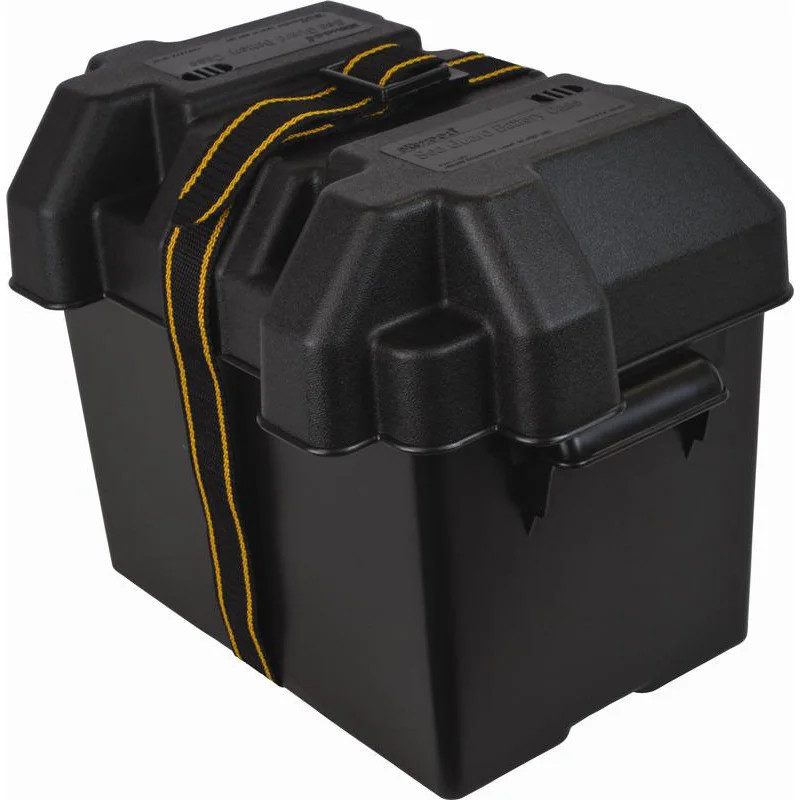

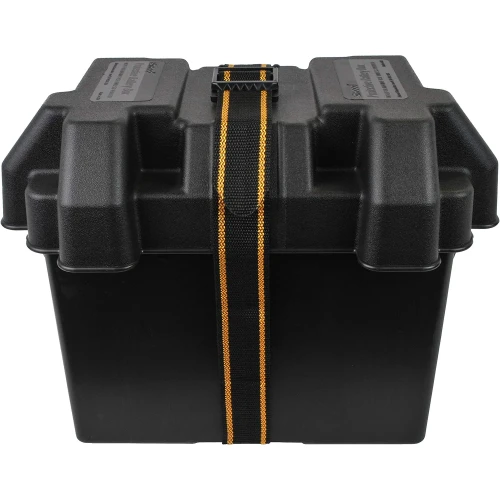

Attwood Marine PowerGuard 24 Battery Box, For 24/24M/24F Batteries, Polypropylene, ABYC E-10

Overview

The Attwood Marine PowerGuard 24 Battery Box is a battery box for standard 24, 24M, and 24F Series batteries, with vented and non-vented configurations available for different installation requirements.

It is built around a polypropylene case that resists battery acid and gives the battery a contained, secured location on board. The box fits batteries up to 10-1/8 in maximum height with terminals, with inside dimensions of 10-5/8 in L x 7 in W x 10-1/8 in H when the lid is installed.

This PowerGuard 24 box meets ABYC Standard E-10 and U.S. Coast Guard Specification 183.420 as an OEM-installed battery hold-down system. The included hold-down strap is rated to resist 350 lb of force, which helps keep the battery in place through normal hull movement, trailering, and vibration.

Key features

• Fits standard 24, 24M, and 24F Series batteries with a maximum height of 10-1/8 in with terminals.
• Polypropylene case resists battery acid and helps contain the battery in a dedicated box.
• Meets ABYC Standard E-10 and U.S. Coast Guard Specification 183.420 for OEM-installed battery hold-down use.
• Hold-down strap is rated for 350 lb of force to help secure the battery during movement and vibration.
• Four cable openings measure 0.55 in diameter for routing battery cables through the lid area.
• Drop tested from -20°F to +120°F for use across a wide range of storage and operating conditions.
• Outside dimensions with lid installed are 14 in L x 9-5/8 in W x 10-5/8 in H.
• Large handles with rolled edges help when positioning the box during installation or battery service.

Variants

This PowerGuard 24 Battery Box is offered in two ventilation configurations. Both variants are part of the same Group 24 battery box range and share the same general fit for 24, 24M, and 24F Series batteries.

The key difference is the lid ventilation. The vented version is used where battery gas ventilation is required, while the non-vented version is for installations that specifically call for a non-vented battery box. Battery location, compartment ventilation, and applicable boat requirements should be checked before installation.

• 9065-1: Vented. This configuration includes ventilation in the lid area, making it the more typical choice for many marine battery compartments where battery gases need a path to escape.
• 9069-1: Non-vented. This configuration uses a non-vented cover for applications where that enclosure style is required by the installation layout or system specification.

Installation and fit

The box should be mounted on a flat, supported surface where the battery can sit level and the strap can hold it firmly in place. Allow room above and around the lid for cable routing, inspection, and battery service.

Before ordering, compare the battery case size, terminal height, and cable exit direction with the inside dimensions of the box. The 40 in hold-down strap and mounting hardware are included, so the installer can secure the box and battery as part of the installation.

Use cases on board

This battery box is a practical fit for small boats, fishing boats, runabouts, pontoons, and trailerable boats using a Group 24 starting or house battery. It helps keep the battery contained and secured in storage lockers, utility spaces, and other protected mounting locations where a fixed hold-down is needed.

What’s included

• PowerGuard 24 battery box with lid
• 40 in hold-down strap
• Mounting hardware
