Overview

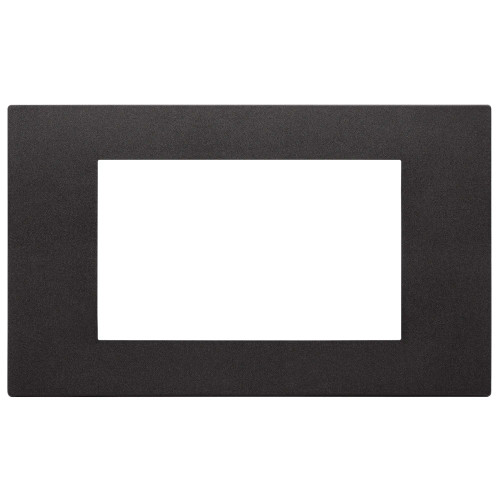

The Vimar LINEA Series is a 3-module cover plate range for interior switching points, with horizontal or vertical orientation, snap engagement, and an overall size of 122.8 x 88.0 x 10.3 mm. It is made for LINEA 3-module layouts, including 3 horizontal modules or 1 vertical module, and gives the installation a clean finished edge in protected interior spaces.

This is an IP00 cover plate, so it belongs in dry locations rather than exposed deck, cockpit, or washdown areas. Across the range, the visible finish changes by version, with halogen-free technopolymer options and metal options for projects that need a closer match to the surrounding interior on board.

Key features

• 3-module LINEA cover plate format for 3 horizontal modules or 1 vertical module
• Horizontal and vertical mounting direction
• Snap-engage fastening for quick fitting and straightforward service access
• Overall dimensions of 122.8 x 88.0 x 10.3 mm, with built-in height of 4.7 mm
• IP00 rating for protected interior use only
• Range includes halogen-free technopolymer versions and metal versions, depending on finish
• Technopolymer versions are listed for flush-mounted, wall-duct, subfloor duct box, and built-in applications, while the metal sheet checked is listed for flush-mounted installation

Variants

The main changes across the range are color, finish, and base material. Technopolymer versions cover White, Canvas, Black, Silver, Clay, Metal, and Reflex finishes, while metal versions include Brushed Gold, Bronze, and Satin Inox.

The range stays within the same 3-module LINEA plate format and keeps horizontal or vertical orientation, but the installation fields are not identical across every material version. That matters when the plate is being matched to a specific box, wall duct, or built-in arrangement.

Compatibility and fit

This plate is for LINEA 3-module positions where trim size and finish both matter. The front size is 122.8 mm wide and 88.0 mm high, so it suits refit and new-build work where the visible edge around the device needs to stay tidy against joinery, liners, or wall panels.

For boats already using LINEA hardware inside the accommodation spaces, this range gives a straightforward way to match the faceplate to the rest of the interior without changing the basic 3-module layout.

Installation and placement

On board, this cover plate makes the most sense in cabins, saloons, galleys, heads, and other enclosed areas where the electrical point is protected from spray and direct weather. The IP00 rating means it is not the right choice for exposed helm positions, open deck locations, or any area that sees regular washdown.

Technopolymer versions use a glossy untreated surface, while the metal versions use a matt metallic finish. That gives some freedom when matching lighter interiors, darker switch trims, or metal-accent details without moving away from the LINEA platform.

Use on board

This range is a good match for interior refits and new installations that use Vimar LINEA switching points and need a finish that looks intentional rather than purely utilitarian. It also suits projects where the switching layout is staying in place and the visible trim is being updated to better match the surrounding interior.
