Hella Marine Slim Line Round LED Courtesy Lamp, Blue LED, Chrome Bezel, 12V DC, IP67, 4-LED, 3in Dia, 2in Cutout, 13mm Mounting Depth
Write a Review
Hella Marine
Hella Marine Slim Line Round LED Courtesy Lamp, Blue LED, Chrome Bezel, 12V DC, IP67, 4-LED, 3in Dia, 2in Cutout, 13mm Mounting Depth
Overview

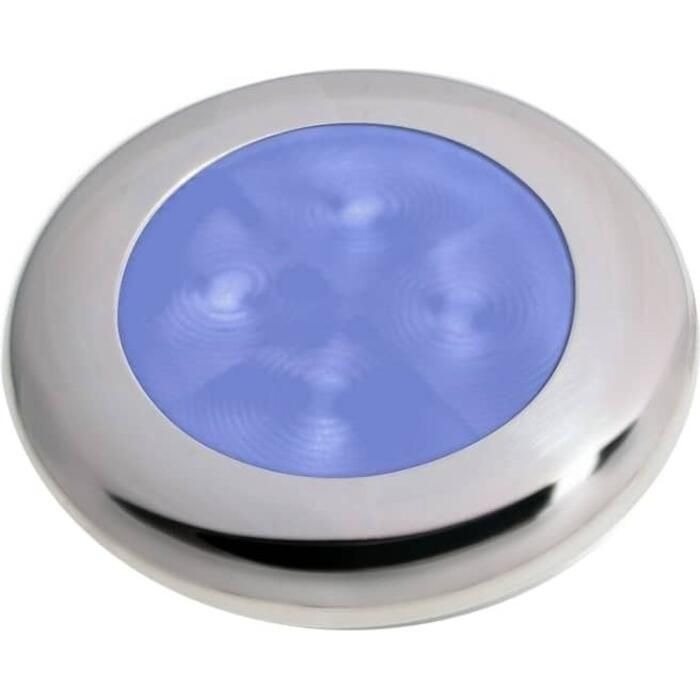

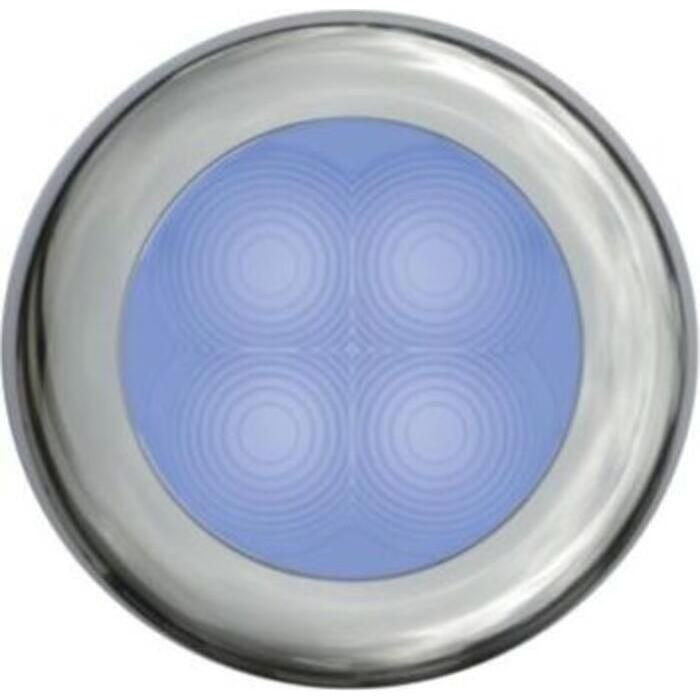

The Hella Marine 980502271 is a slim round LED courtesy lamp with blue output and a chrome bezel, sized for a 2 inch cutout with a 3 inch overall base diameter.
It runs on 12V DC or 24V DC and draws less than 0.5W, which is under 0.042A on a 12V system. The lamp is IP67 completely sealed, so it holds up well in spots that see spray and routine washdowns.

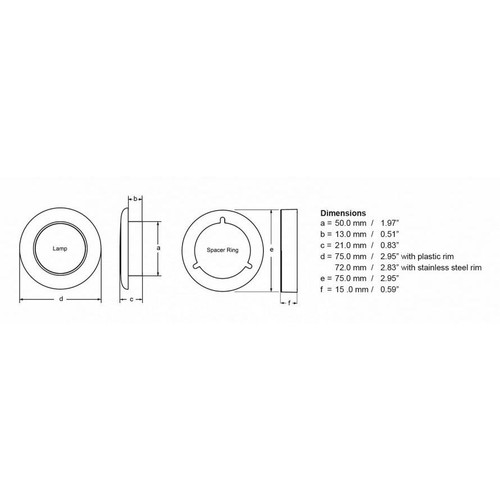

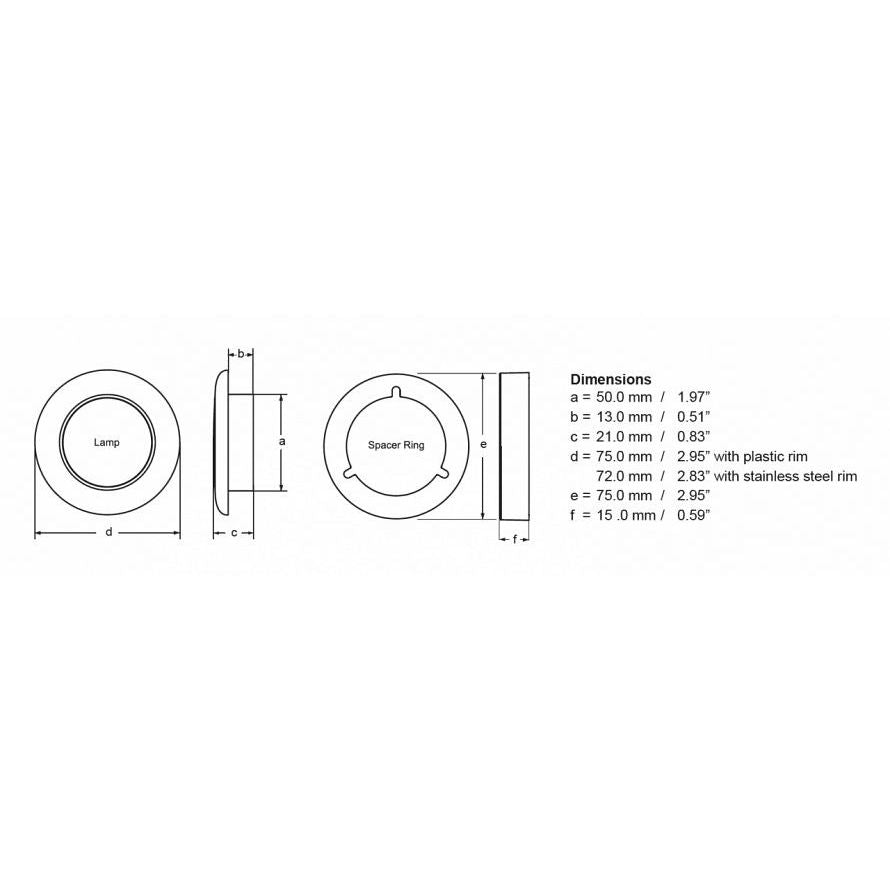

With a shallow mounting depth of about 13.0mm, it fits cleanly in tight panels around steps, toe kicks, cockpit coamings, and cabin cabinetry.
Key features
- Blue LED courtesy lighting that keeps night vision comfortable while you move around onboard
- Low power draw: under 0.5W (under 0.042A at 12V DC)
- Operating voltage: 12V DC or 24V DC
- IP67 completely sealed for wet locations and washdowns
- Low profile install with approx. 13.0mm mounting depth
- Cutout: 2 inch, overall base diameter: 3 inch
- Pre-wired with 120mm of tinned marine cable
Installation and fit
This lamp installs through a 2 inch hole and fastens at the face with the mounting ring and screws. For exterior surfaces, sealing the cutout and fasteners with marine sealant helps keep water out of the core and behind the panel.
The shallow body makes it a practical choice where clearance is limited, such as stair risers, cockpit side panels, companionway trim, and under-gunwale toe lighting.
Electrical and dimming
Wire it into your boat’s DC lighting circuit (12V or 24V) using tinned marine wire and proper circuit protection. Dimming is supported with the Hella Marine Dimmer 5XA 998 572-001 when you want to dial the light back for late-night use.
What’s included
- Round LED courtesy lamp (blue) with chrome bezel
- Surface mounting ring
- 3 stainless steel mounting screws
Use on board
Blue courtesy lighting works well for walkways and steps when you want enough light to move safely without lighting up the whole cockpit or cabin. It is a good match for boats that spend time night fishing, anchoring out, or coming and going from the dock after dark.
We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
