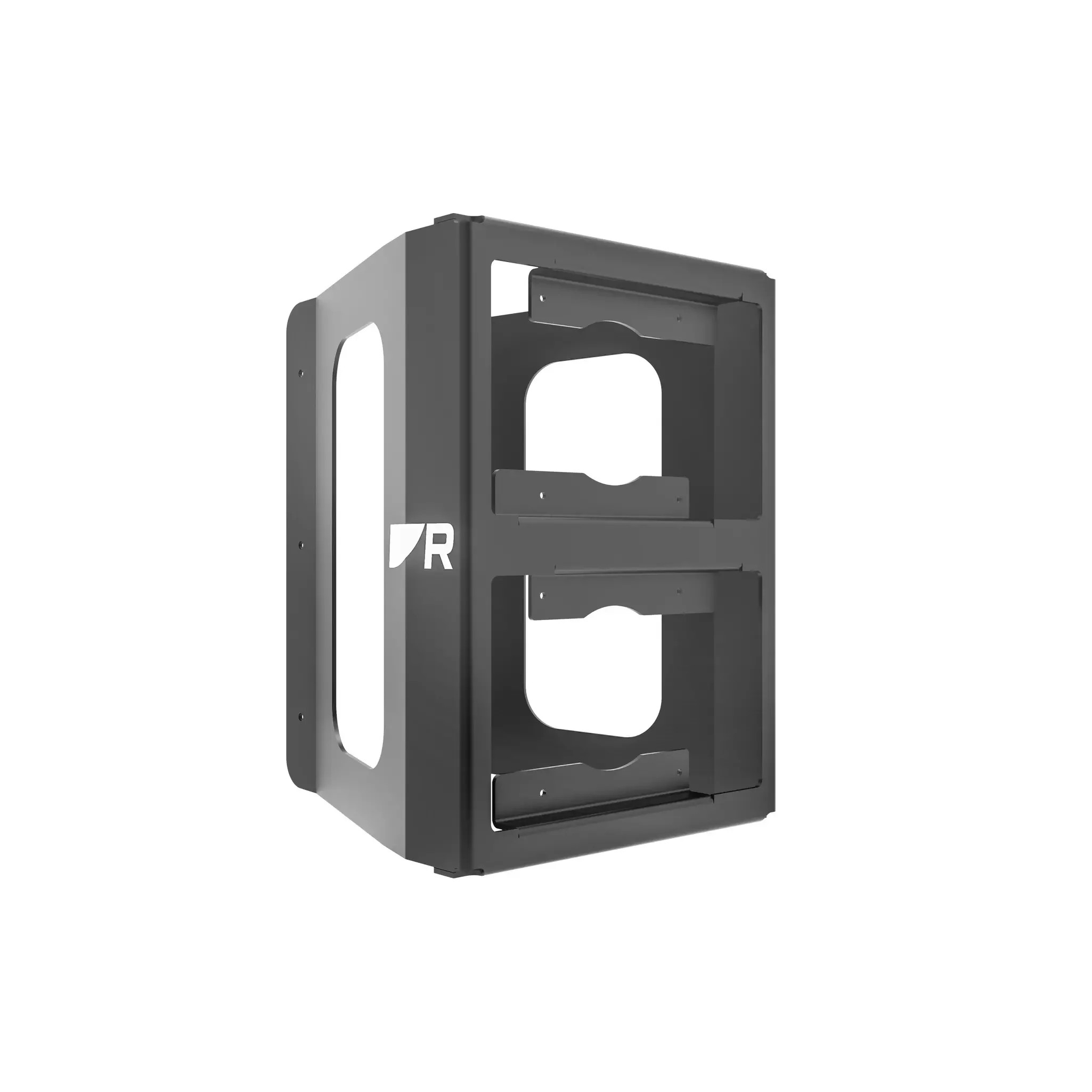

Raymarine Alpha 9 Mast Brackets, For 9 in Alpha Display, Aluminum, Stackable, Joining Screws Included

Overview

The Raymarine Alpha 9in Mast Bracket is a mast mounting bracket range for Raymarine Alpha Performance Display 9" instruments, with configurations for landscape or portrait display orientation and single or dual mast setups.

This bracket range is made for sailing installations where the Alpha display needs to sit on the mast in clear view of the helm and crew. Aluminum construction keeps the bracket light while still giving the display a solid mounting base in a high-exposure location.

The range supports stacked bracket layouts, and joining screws are supplied with each bracket. Match the bracket to the required display orientation and mast configuration before installation, especially when planning multiple displays on the same mast area.

Key features

• Made for Raymarine Alpha Performance Display 9" mast installations.
• Available in landscape single mast, landscape dual mast, and portrait single mast configurations.
• Aluminum construction keeps weight down while supporting mast-mounted use.
• Stackable bracket format supports multi-display mast layouts when the installation calls for it.
• Joining screws are supplied with each bracket for stacked arrangements.
• Useful for sailing cockpits and racing setups where performance data needs to be visible from the rail, helm, or working deck.

Variants

The Alpha 9in Mast Bracket is offered in three configurations for different display orientation and mast layout requirements.

The variant differences are the screen orientation and the mast configuration. All listed versions are for the Raymarine Alpha Performance Display 9" and share the same stackable bracket approach with joining screws supplied.

• A80714: Landscape orientation, single mast configuration. This version places the 9" Alpha display in a wide layout on a single mast bracket arrangement.
• A80715: Landscape orientation, dual mast configuration. This version keeps the display in landscape orientation while matching installations that call for the dual mast bracket configuration.
• A80716: Portrait orientation, single mast configuration. This version mounts the 9" Alpha display upright on a single mast bracket arrangement.

Installation and fit

This is a purpose-specific bracket for the Raymarine Alpha 9" performance display, so it should be matched to that display family rather than treated as a universal fixed mount. Before drilling or fastening, confirm the mast position, display orientation, sight line from the cockpit, and cable routing path.

For mast installations, allow room for service access and avoid locations where running rigging, sail handling, or covers can strike the display. On alloy or carbon spars, use installation practices suited to the mast material and the fasteners selected for the job.

Use cases on board

This bracket range fits boats using Raymarine Alpha performance displays for sailing data at mast level, including club racing, coastal cruising, and performance-oriented sailboats where the crew needs readable instrument data without looking back to the helm station.

What's included

• Alpha 9" mast bracket in the selected configuration
• Joining screws
