Hella Marine 2492 Deck Mount All-Round Navigation Light, 12V, 2NM Visibility, 10W Bulb, Black Base
Write a Review
Hella Marine
Hella Marine 2492 Deck Mount All-Round Navigation Light, 12V, 2NM Visibility, 10W Bulb, Black Base
Overview

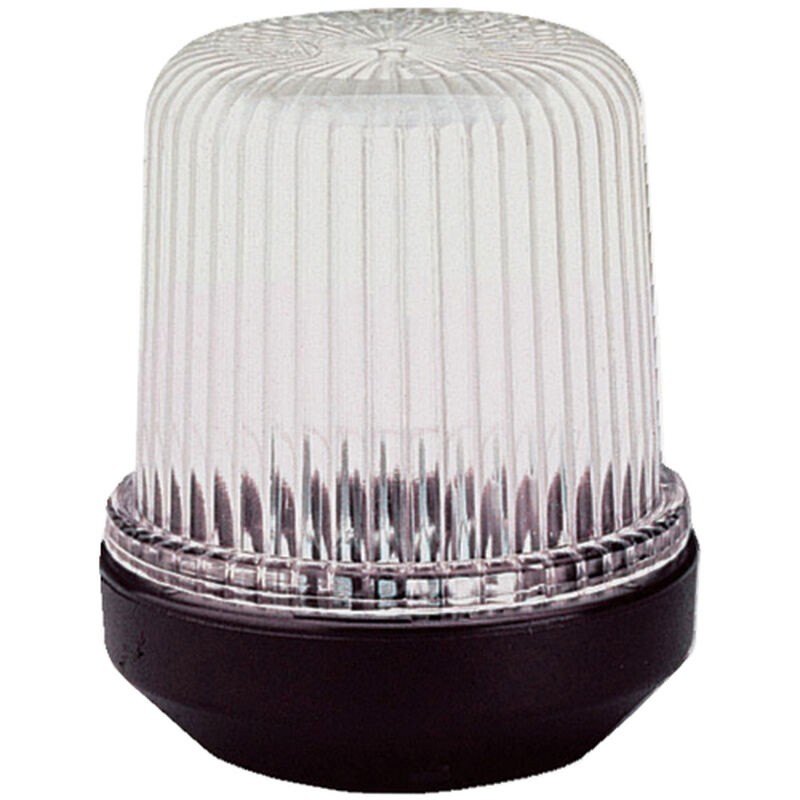

The Hella Marine 002492201 is a 12V all-round white navigation light for deck mounting, rated for 2 nautical mile visibility on vessels up to 12 m (39.4 ft). It uses a single 10W bulb and draws 0.83A, which keeps load predictable on smaller DC systems.
This light mounts on a flat surface and takes up little space with a 2-5/16 in diameter body that stands 2-5/8 in high (59 x 67 mm). The polycarbonate housing and gasketed lens help keep spray out, and the unit is non-magnetic for cleaner installs around compasses and sensitive electronics.
Key features
- All-round 360 degree white light with 2 nautical mile visibility
- For vessels up to 12 m (39.4 ft)
- 12V DC, 10W bulb, 0.83A current draw
- Polycarbonate housing with a gasketed lens to reduce water intrusion
- UV-resistant housing and lens for exposed mounting locations
- Non-magnetic construction
- Two 6.3 mm flat plug connectors for straightforward wiring
Installation and wiring
Plan the mounting point so the lens has an unobstructed 360 degree view and sits clear of antennas, rails, rocket launchers, and canvas. Fasteners are not included, so match screw length and bedding method to your deck thickness and core type.
Wiring is via two 6.3 mm flat plug connectors. Tie it into a properly fused navigation or anchor-light circuit on your 12V panel, and seal any deck penetrations so water cannot track into the laminate.
Compatibility and fit
This light is a good match for smaller powerboats and sailboats that need an all-round white light for anchoring or general all-round visibility. The black base blends in on dark hardware and painted surfaces without drawing attention during the day.
Maintenance and spares
Rinse salt off the housing and lens after heavy spray or washdowns, and clean with mild soap to keep the optics clear. Replacement parts are available if needed, including bulb 288904 and replacement lens 63100.
What’s included
- All-round white navigation light assembly (black base and lens)
- 10W bulb
