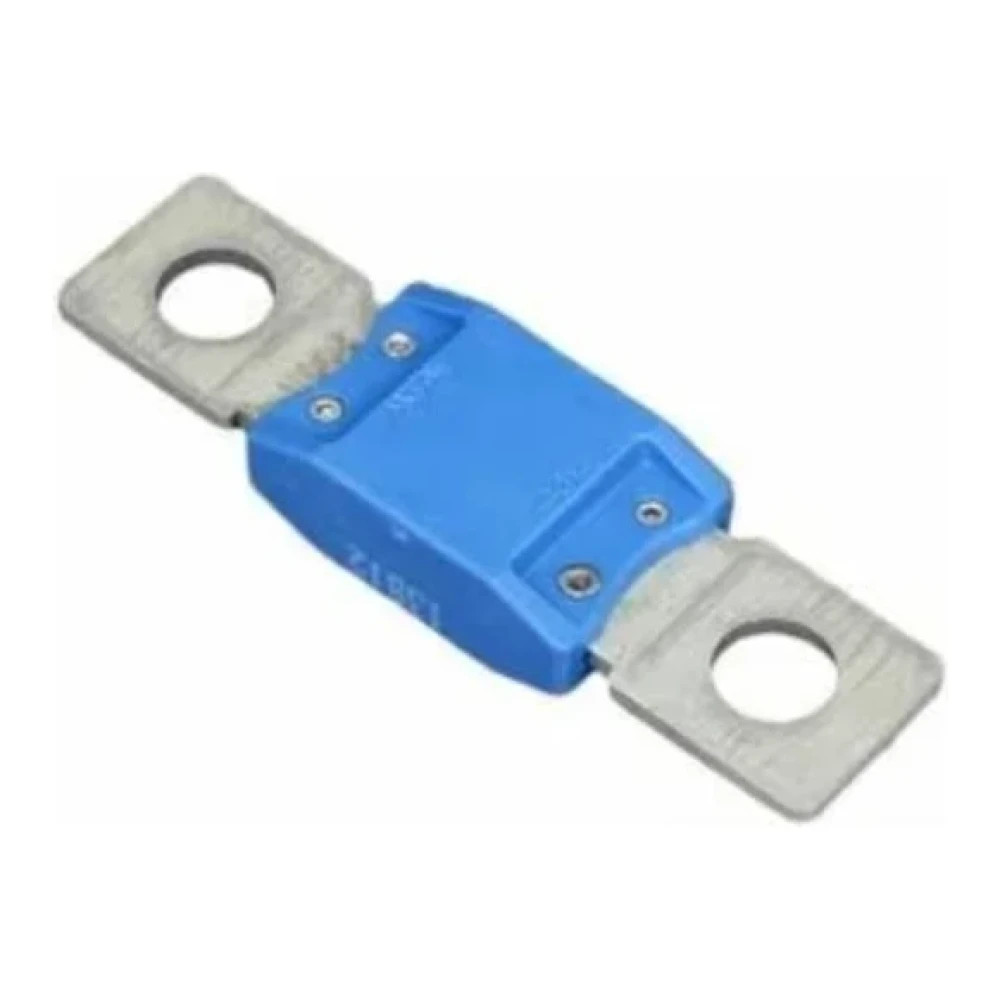

Victron Energy MIDI-Fuse, 32V DC, Bolt-Down, 5pk

Overview

The Victron Energy MIDI-fuse 32V is a pack of five bolt-down DC fuses for overcurrent protection in 12V and 24V battery and distribution circuits. The range covers 60A, 80A, 100A, 125A, 150A, and 200A ratings, all with a 32V maximum voltage rating.

These MIDI fuses suit compact DC protection points on boats, including battery positive feeds, charger circuits, DC-DC charger installations, inverter feeds within the correct current range, and distribution runs where the fuse holder and cable size are matched to the system design. The MIDI format is smaller than MEGA style fusing, which helps in lockers, consoles, and electrical panels where space is limited.

Each current rating has low voltage drop and low cold resistance, helping reduce unwanted loss in high-current DC circuits. Fuse selection should always follow the equipment manual, conductor ampacity, fuse holder rating, and the vessel’s DC protection plan.

Key features

• 32V DC maximum voltage rating for common 12V and 24V marine electrical systems.
• Available in 60A, 80A, 100A, 125A, 150A, and 200A ratings to match different protected circuit sizes.
• MIDI bolt-down format gives secure contact in installations exposed to boat vibration.
• Compact fuse body fits tight battery compartments, helm panels, and DC distribution areas more easily than larger fuse formats.
• Low voltage drop and low cold resistance help limit power loss in high-current DC wiring.
• Works with a suitable MIDI fuse holder for protected battery, charger, inverter, and distribution circuits.

Variants

This product range varies by current rating only. The available configurations are 60A, 80A, 100A, 125A, 150A, and 200A, all in the same MIDI-fuse 32V format and all supplied as packages of five pieces.

The correct rating depends on the protected equipment, cable size, installation layout, and fuse holder used. In a marine DC system, the fuse is there to protect the conductor and circuit, so the amp rating should be selected from the system plan rather than matched only to the load size.

What’s included

• Five Victron Energy MIDI-fuses in the selected current rating.

Installation and fit

Install the fuse in a compatible MIDI fuse holder and place it as close as practical to the power source on the positive conductor being protected. Battery compartments, charger feeds, solar charge controller outputs, and inverter or DC distribution feeds should be laid out so the fuse remains accessible for inspection and replacement.

Use properly sized cable lugs, clean contact surfaces, and secure hardware so the connection stays tight under vibration. The holder, conductor, and connected equipment must all be rated for the current in the circuit.

Use on board

This fuse range is a good match for owners, installers, and service teams working on compact Victron-based DC systems where clean circuit protection matters. It is especially useful for refits, spare kits, and planned electrical upgrades where keeping several matched replacement fuses on board avoids downtime after a fault is found and corrected.
