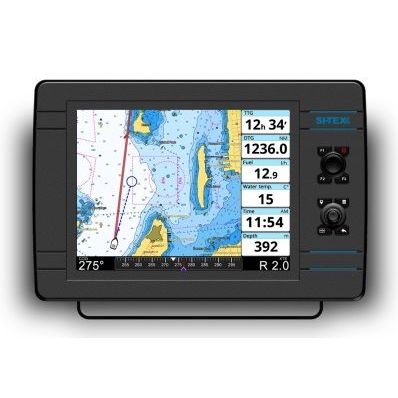

SI-TEX - NAVPRO1200 12" Plotter

High-Resolution Hybrid Touchscreen Display

The Sitex NAVPRO1200 features a 12-inch high-resolution hybrid touchscreen display, offering exceptional clarity and ease of use. Its capacitive multi-touch technology ensures smooth and responsive control, making it an ideal choice for both professional and recreational marine navigation. The 1250 NIT brightness ensures superior visibility even in direct sunlight.

Versatile Mounting Options

Designed for flexibility, the NAVPRO1200 comes with a heavy-duty yoke mount, allowing for secure bulkhead or overhead installation. It also supports flush mounting without requiring any special kits, ensuring seamless integration into various vessel setups.

Seamless Connectivity and Data Management

Equipped with both NMEA-0183 and NMEA2000 interfacing, the NAVPRO1200 ensures compatibility with a wide range of marine electronics. Its built-in Wi-Fi and Bluetooth capabilities allow for easy data sharing, software updates, and even screen mirroring via a dedicated app on Android devices. Additionally, the Captain Cloud feature provides automatic cloud-based backups for waypoints, marks, events, and track memories when within Wi-Fi coverage.

Comprehensive Cartography Support

Bundled with a US Coastal & Rivers Continental 4D C-Map cartography card, the NAVPRO1200 offers detailed and accurate navigation charts. It also supports additional Navionics Platinum+ cartography for enhanced mapping options.

Full AIS Integration and Optional Radar Expansion

For enhanced situational awareness, the NAVPRO1200 offers full AIS integration when connected to an AIS unit. The system also supports an optional high-resolution Wi-Fi radar, allowing users to transform their MFD into a powerful 36-nautical-mile range radar by pairing it with the SI-TEX MDS-12 Network Radome.

Technical Specifications

• LCD Display Size: 12.0"
• Display Resolution: 1024x768
• Display Brightness: 1250 NITS
• Touchscreen: Capacitive Multi-Touch
• Keyboard Backlight: Yes
• GPS Receiver: Built-in High-Resolution 18Hz 72-Channel GPS/GLONASS
• External GPS: Available via 6-pin connector
• Network Connections: NMEA-2000 (Optional Cable Required), Dual NMEA-0183 Input/Output Ports
• Wi-Fi & Bluetooth: Yes
• Waterproof Rating: IPX6
• Operating Temperature Range: -10°C to +60°C
• Input Voltage: 10 to 35 VDC
• Warranty: 2 years

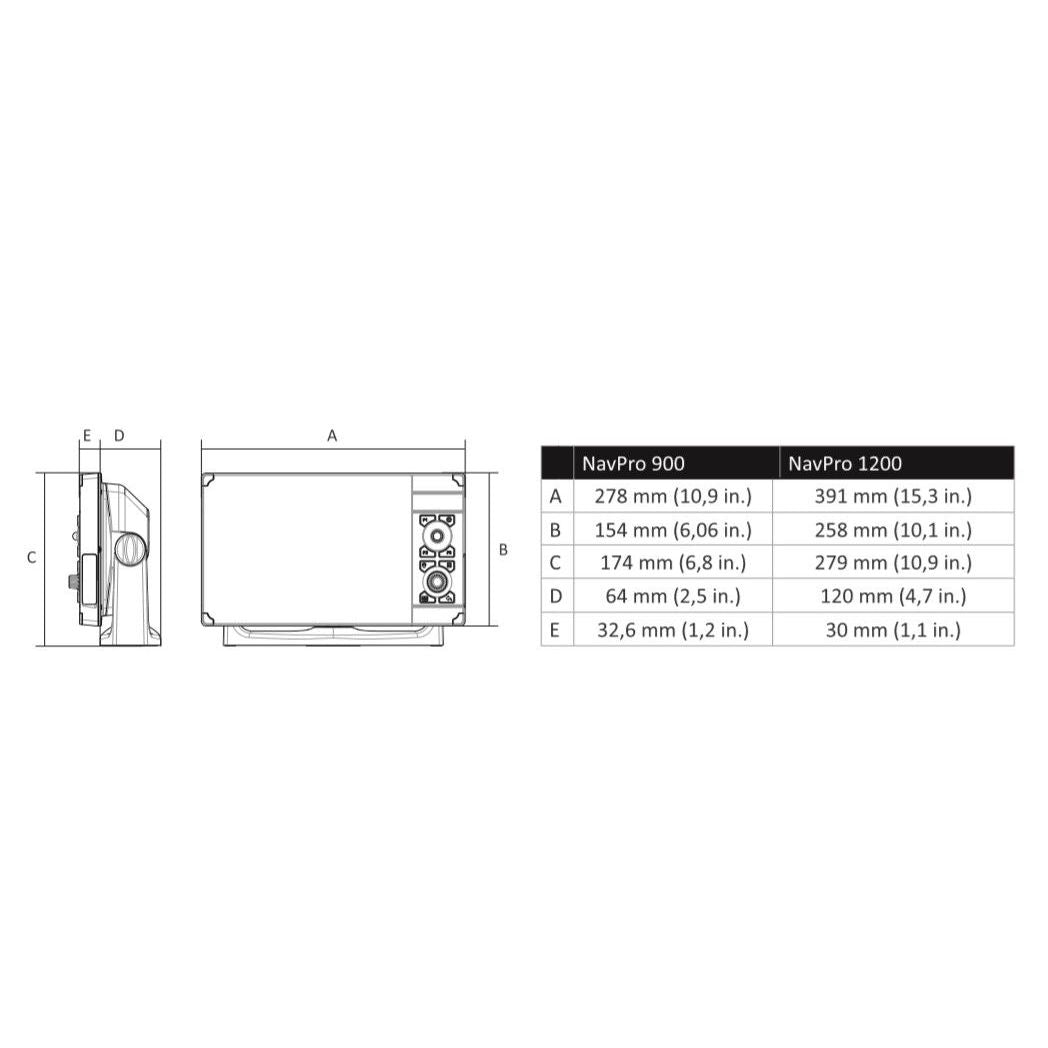

Product Dimensions

• Width: 15.3"
• Height: 10.9"
• Depth: 5.8"

Highlights

• High-resolution 12" hybrid touchscreen display
• Seamless Wi-Fi and Bluetooth connectivity
• Automatic cloud backup for navigation data
• Full AIS integration support
• Optional radar expansion for increased range and precision
• Bundled with US Coastal & Rivers Continental 4D C-Map cartography
• Supports additional Navionics Platinum+ chart compatibility
• IPX6 waterproof rating for durability in marine environments

What's in the Box

• Sitex NAVPRO1200 Display Unit
• Polaris USA Chart Card
• Mounting Bracket & Screws
• Combination Power Data Cord
• Sun Cover
• Installation & Operation Manual

Designed for serious navigators, the Sitex NAVPRO1200 delivers powerful performance, seamless integration, and reliable data management, ensuring safe and efficient voyages in all marine conditions.
