Overview

The Vimar Eikon 20570 LED Inner Light is an accessory light module for compatible Vimar color video camera door-entry stations, adding white front light so the camera can capture the person at the panel more clearly. It runs on 12-24 V d.c. SELV, draws 70 mA, and uses a 0.35 W high-efficiency LED rated at 9 lm with about 20 lux at roughly 40 cm.

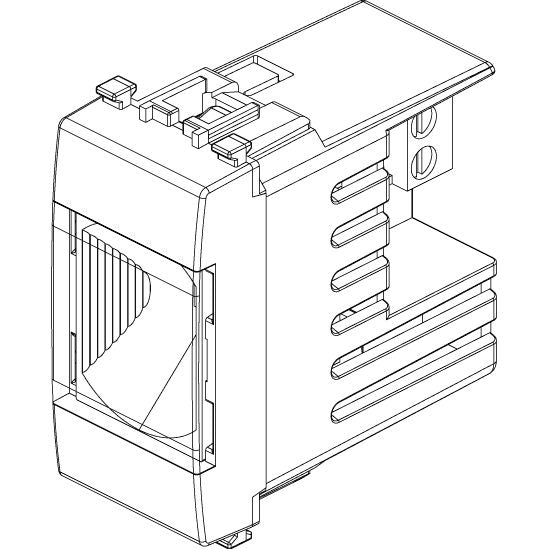

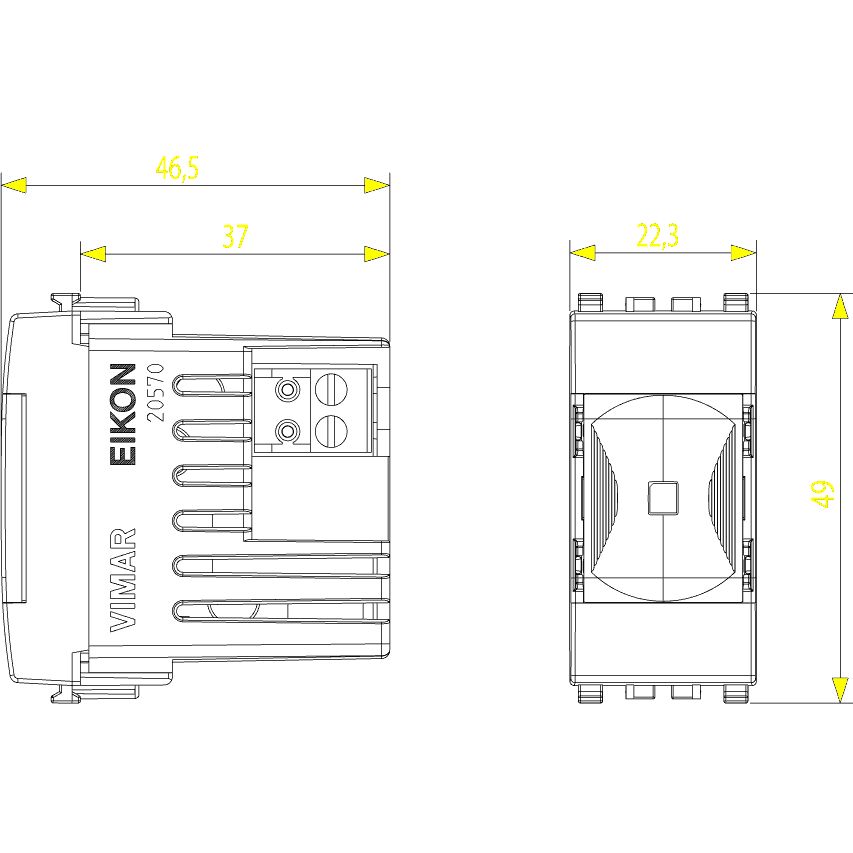

This is a system component rather than a standalone lamp. It sits within the entrance station assembly, uses a reflector and diffuser to spread the light in front of the camera, and is built in plastic with a body size of about 5.1 x 2.8 x 5.3 cm.

The operating range is -5 C to +40 C, so the main fit check is system compatibility and mounting location. For a replacement or retrofit, match the finish to the visible Eikon hardware and confirm that the camera station is the correct Vimar type.

Key features

• Accessory LED light for compatible Vimar color video camera door-entry stations
• 12-24 V d.c. SELV input with rated tolerance of plus or minus 20%
• White LED with reflector and diffuser for close-range lighting in front of the camera
• 9 lm output, about 20 lux at roughly 40 cm, and 0.35 W LED power
• 70 mA current draw with simple positive and negative plate power supply connections
• Plastic housing sized for outdoor station assemblies

Variants

This product is offered in three finish options within the same Eikon LED inner light range.

The finish changes between variants, while the lighting function, low-voltage power requirements, and use with compatible Vimar color video camera door-entry stations stay the same.

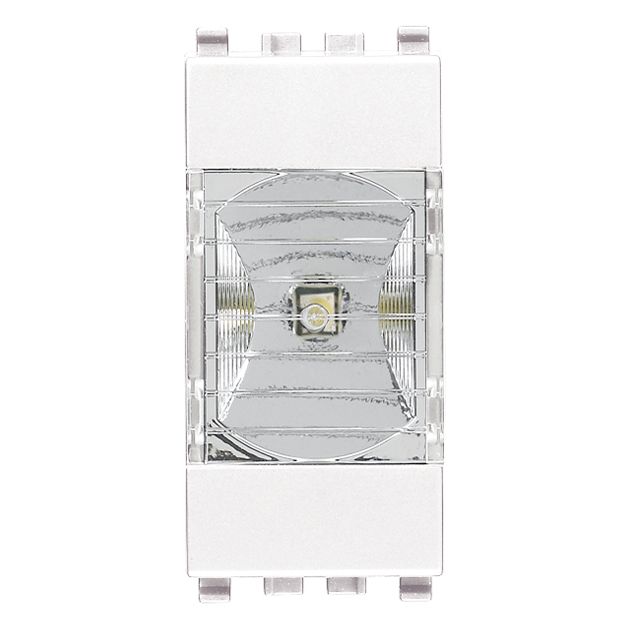

• VM20570.B: White. This version suits white Eikon plates or trim where the light module needs to blend into a lighter front panel.

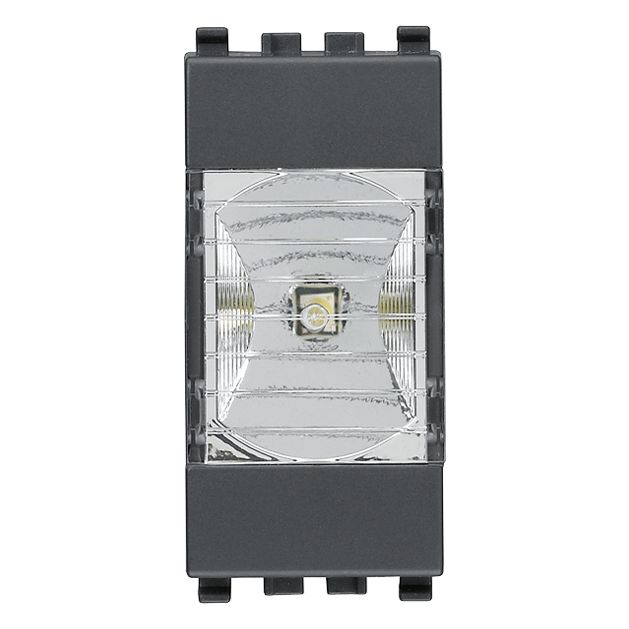

• VM20570: Grey. This version keeps the same electrical and installation setup in a grey finish for matching darker or neutral panel assemblies.

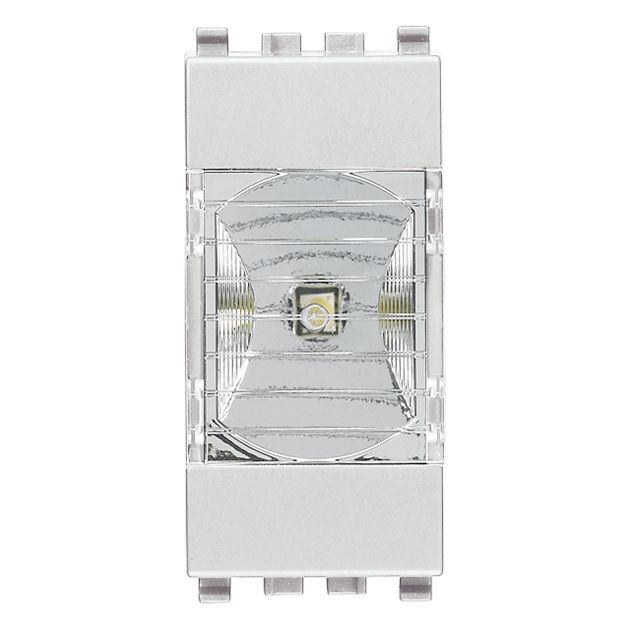

• VM20570.N: Silver. This version carries the same light module in a silver finish for Eikon installations with a metallic look.

Compatibility and fit

This Eikon version is used with compatible Vimar color video camera modules such as 20560 and 20565. It is an accessory for the entrance panel and not a general-purpose light, so the right match depends on the panel series, camera module, and finish already on the station.

Installation and setup

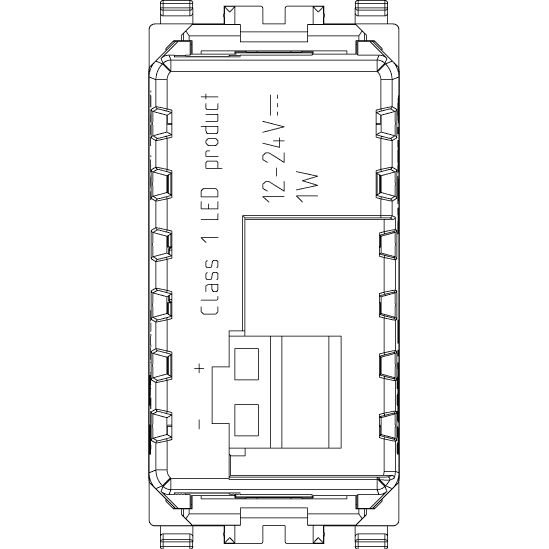

Connection is straightforward with positive and negative terminals from the plate power supply. Because it becomes part of a fixed low-voltage door communication assembly, it is best handled during panel build, service, or replacement work by an installer familiar with the system.

Use on board

For marine projects, this fits protected access panels where a compatible Vimar video entry setup has already been specified. It should be treated as a system accessory inside that panel rather than as a deck, cockpit, or cabin light.
