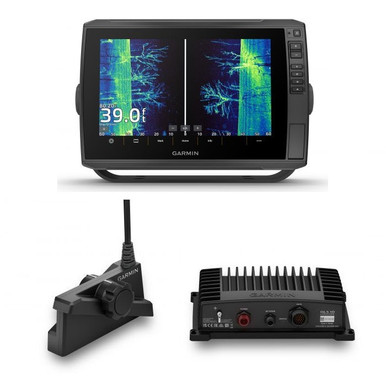

Garmin ECHOMAP Ultra 2 106sv Chartplotter/Fishfinder, Without Transducer, 10 in Touchscreen, Garmin Navionics+ U.S. Inland & Coastal, LiveScope Compatible

Overview

The Garmin 010-02880-00LSP is a 10-inch ECHOMAP Ultra 2 106sv chartplotter and fishfinder bundle that comes with Garmin Navionics+ U.S. Inland and Coastal mapping. The touchscreen display is 1280 x 800 (WXGA, IPS), the housing is rated IPX7, and the unit runs on 9 to 18 Vdc, which fits typical 12 V boat systems.

For installs where space and access matter, the unit measures 11.6 x 7.7 x 3.9 inches and supports bail or flush mounting. It also includes a built-in 600 W sounder for CHIRP traditional sonar plus ClearVü and SideVü, along with LiveScope and Panoptix support for live-scanning sonar setups.

Key features

• 10-inch touchscreen with keyed assist; 1280 x 800 WXGA IPS display
• IPX7 waterproof rating for open-helm and washdown-prone installs
• Power input 9 to 18 Vdc; typical draw 2.3 A at 12 Vdc, max 5.0 A at 12 Vdc
• Built-in 600 W sonar: single-channel CHIRP traditional (70/83/200 kHz; L, M, H CHIRP) plus ClearVü and SideVü scanning (260/455/800/1000/1200 kHz)
• Multi-band, multi-constellation GPS with 10 Hz update; WAAS support
• Networking and data: 1 NMEA 2000 port, NMEA 0183 compatible, 2 Garmin Marine Network ports, Wi-Fi, and ANT+
• Storage and navigation capacity: 2 microSD card slots, 5,000 waypoints, 50,000 track points, 50 saved tracks, and 100 routes

What’s included

• ECHOMAP Ultra 106sv with Garmin Navionics+ U.S. Inland and Coastal Mapping
• Power/data cable
• Bail mount with quick-release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation
• LiveScope Plus

Installation and setup

The bail mount and quick-release cradle make sense for boats where the display comes off between trips, while flush mounting keeps the helm cleaner and protects the edges of the screen. Plan a little clearance behind the unit for cables and connectors, and keep the microSD slots accessible if you update charts or move data between cards.

Power is straightforward on a 12 V system, and the current draw is worth checking if the electronics bus is already loaded. If you are installing on a small console with limited airflow, keeping wiring tidy and strain-relieved helps long-term reliability in heat and vibration.

Sonar and transducer notes

This chartplotter has a 12-pin scanning sonar port and supports CHIRP traditional sonar plus ClearVü and SideVü from a compatible transducer, but a standard scanning sonar transducer is not included in this bundle. The included 8-pin to 12-pin adapter cable is useful when reusing an existing 8-pin transducer while upgrading to the 12-pin sounder connection.

LiveScope and Panoptix are supported, which is the typical path for anglers running live-scanning sonar alongside mapping. LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters.

Mapping and navigation

Garmin Navionics+ U.S. Inland and Coastal mapping is included, with built-in Auto Guidance+ and tide tables. The unit also supports a range of optional cartography formats and mapping options, including Garmin Navionics Vision+ for those who want additional chart presentation styles.

Who it fits on board

This setup makes sense for fishing-focused boats that want a full-size 10-inch display at the helm, along with the ability to build out a live-scanning sonar system and share data over NMEA 2000 or Garmin Marine Network. It is also a solid match for coastal cruising where chart detail, route planning, and a responsive GPS position update matter in tight channels and near-shore navigation.
