Overview

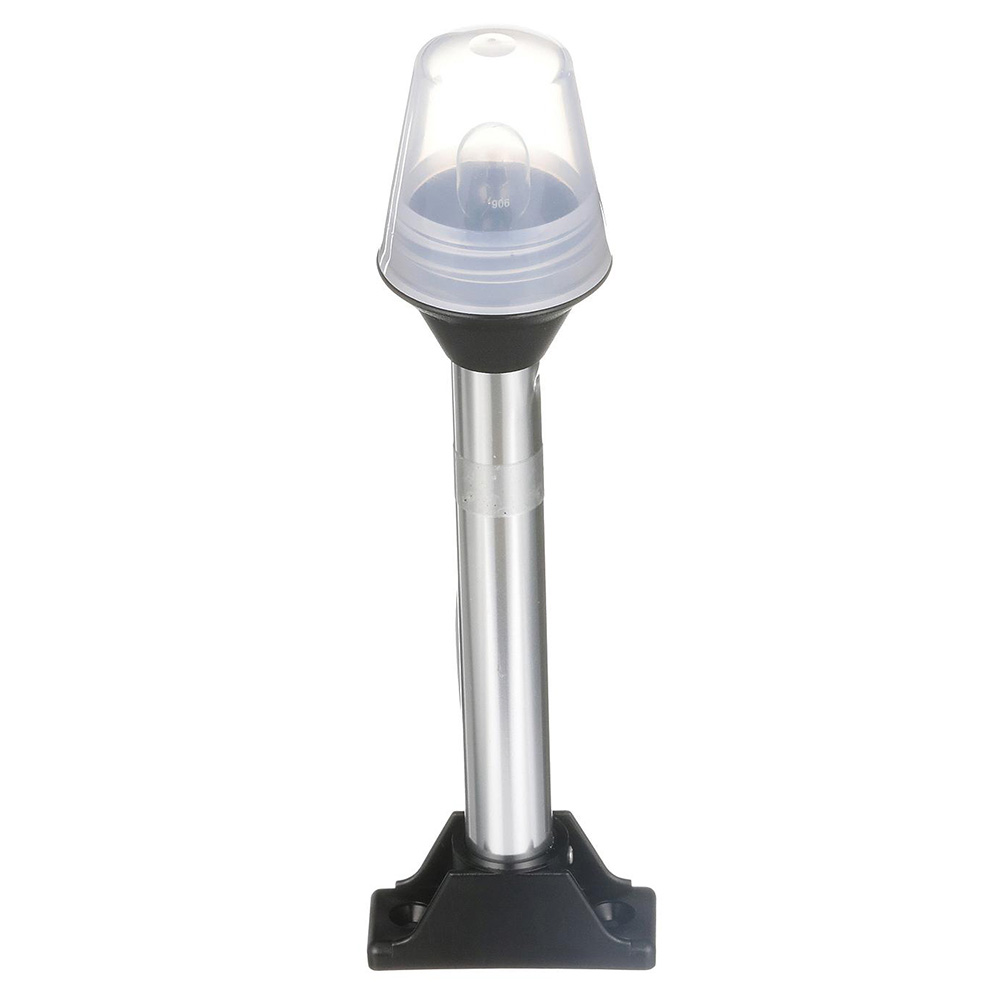

The Attwood Marine 1177031 is an 8-inch all-round fixed-base pole light for boats that need a permanent white navigation light on a pontoon bimini top, radar arch, or hard top. It delivers 360-degree visibility at 2 nautical miles and is rated for boats up to 39.4 feet (12 m), so the fit and light output are easy to judge before installation.

The short pole height keeps the light tidy on overhead mounting points where a taller removable pole is not practical. An anodized aluminum pole, black composite base, and frosted globe lens give it a straightforward layout that works well on exposed topside structures, and the 2-1/2 inch by 1 inch base helps when space is limited.

Key features

• 360-degree white all-round light with 2-nautical-mile visibility for boats up to 39.4 ft. (12 m)
• Fixed-base format for pontoon bimini tops, radar arches, and hard tops
• 8-inch anodized aluminum pole with a black composite base and frosted globe lens
• Compact base footprint of 2-1/2 in. x 1 in. for narrow mounting pads
• Uses two #10 fasteners for mounting; fasteners are not included
• Includes a 9-watt wedge-base lamp

Installation and fit

This light suits boats with a dedicated overhead mounting point where a fixed all-round light makes more sense than a fold-down or plug-in pole. The narrow base is useful on bimini frames, arch plates, and hard top mounting pads, but it is worth checking surface thickness, wire routing, and lens clearance before drilling.

Because the lamp is a replaceable 9-watt wedge-base bulb, routine service is straightforward when the light output drops or the bulb reaches the end of its life. Mounting hardware is not included, so the installer can match the fasteners to the backing material and the structure on the boat.

Use on board

This is a good match for pontoon owners and small to midsize powerboats that need a short all-round light mounted above the cockpit without adding a tall pole. It also works well where the top structure already sets the right mounting height and a permanent light is preferred over a removable setup.

What’s included

• 9-watt wedge-base lamp
