Overview

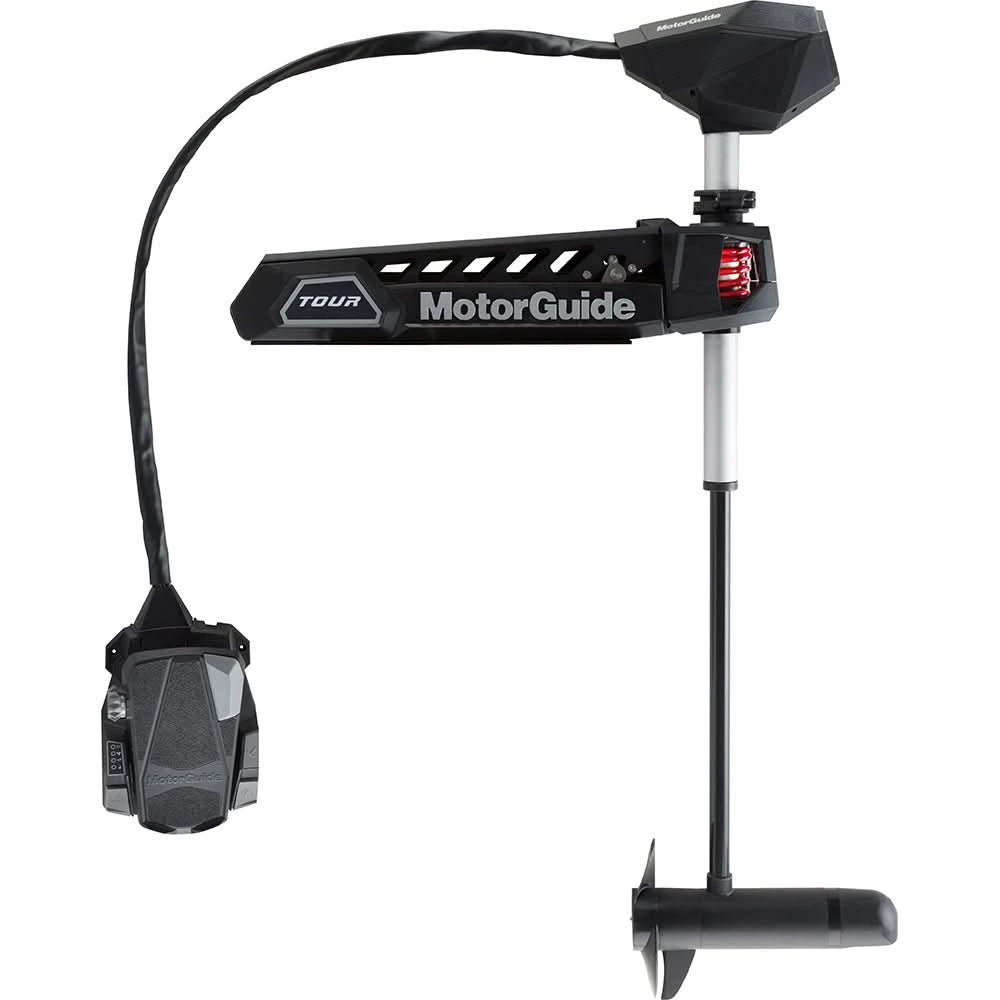

The MotorGuide 941900030 is a freshwater bow-mount trolling motor that runs on 36V and delivers 109 lb of thrust with a 45 inch shaft, combining cable-steer control with Pinpoint GPS.

Steer from the foot pedal when you need immediate bow response, then use GPS functions like Anchor, Jog, Heading Lock, and Cruise Control to hold on a waypoint or stay lined up while you fish.

The mount uses a 360-degree breakaway design for unexpected stumps and rocks, and the lift-assist stow and deploy system helps when you are moving the motor in and out of the water all day.

Key features

• 36V motor with 109 lb thrust and a 45 inch shaft
• True cable-steer foot pedal with dedicated Pinpoint GPS buttons for Anchor, Jog, Heading Lock, and Cruise Control
• 360-degree breakaway mount with a two-piece shaft that uses a stainless steel outer column and a composite inner shaft backed by a lifetime warranty
• Zero-G lift assist and Bulldog latches for stowing and deploying with less effort
• Two-blade Katana prop
• Integrated Bounce Buster and built-in cable routing to help keep the motor stable and the bow deck tidy
• LED dashboard for power, battery, and GPS status
• Works with lithium-ion battery banks when configured as a 36V system
• No integrated sonar or built-in transducer on this version

Compatibility and fit

Plan on a dedicated 36V battery bank and marine wiring sized for the motor's current draw. The 45 inch shaft length is a common fit for many bass boats and similar hulls, but the right choice comes down to bow height and the chop you fish in so the prop stays submerged when the bow lifts.

This part number is the Pinpoint GPS version without integrated HD+ universal sonar. If you want sonar running through the shaft, that feature is offered on other Tour Pro configurations.

Installation and setup

Mount the base on a flat section of the bow where the motor can stow fully without contacting rails, lights, or the rub strip, and where the cable routing stays clear of hatches and lockers. Leave room to operate the latch and swing the shaft through its full range without binding.

Pinpoint GPS works best with a clear view of the sky. After installation, take time to complete the initial setup steps for the GPS functions so Anchor and Jog behave predictably when wind or current pushes the boat.

Use cases on board

This setup suits anglers who want the feel of cable steer for casting control, plus GPS holding and heading control for working a point, dock line, or offshore structure without constantly correcting the bow.

Maintenance and care

Keep the mount pivots and latches clean, clear weeds and fishing line from the prop, and check steering cable tension as part of routine upkeep. Even on freshwater boats, a quick rinse after a muddy day helps the pedal and mount keep moving smoothly.
