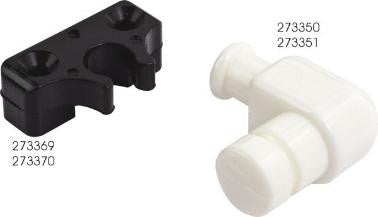

Sea Dog Marine Nylon 90Dginside Eye End Bracket - Sea-Dog Line - 273370 (273370-1)

Eyebolts aids in building an assembly to lift or suspend a weight. The ideal side mounts eye end turns normal internal eyes into rapid-release fittings when used with an Eye Mount Bracket.

Eye bracket cylinder mounts are single-tang that attaches to the back of the cylinder. Allows cylinders to move with the workpiece thus, reducing side loading and wear and improving cylinder life. This product is sold and skin packed in pairs.

Key Features:

• When used with an Eye Mount Bracket, the Side Mount Eye End turns ordinary internal eyes into fast-release fittings
• When used with the Quick Release 90 degree Inside Eye on your boat, it allows for quick removal
• Designed to suit 3/4" outside diameter tubing
• UV-resistant injection-molded nylon construction
• Two #8 fasteners install the bracket (not included)
• Available in both black and white.

Specifications:

• Brand: Sea-Dog Marine
• SKU: 3-273370-1
• Weight: 0.04 lbs
• Material: Nylon
• Angle/ Degree: 90 Degrees
• O.D. Tube: 3/4"
• Hole space: 15/16"
• Quantity_package: 2 in a package
• Colors: Black and White
• Replaces product: 273370-1, 3-273370, 273370

Injection Molded Nylon

The Side Mount Eye End used in conjunction with an Eye Mount Bracket converts standard internal eyes into quick release fittings. These 90° eye ends fit 3/4" OD tubing. Constructed of UV resistant injection molded nylon. Bracket installs with two #8 FH fasteners (not included). Available in black or white.

This product replaces:

• 273370-1, 3-273370, 273370
