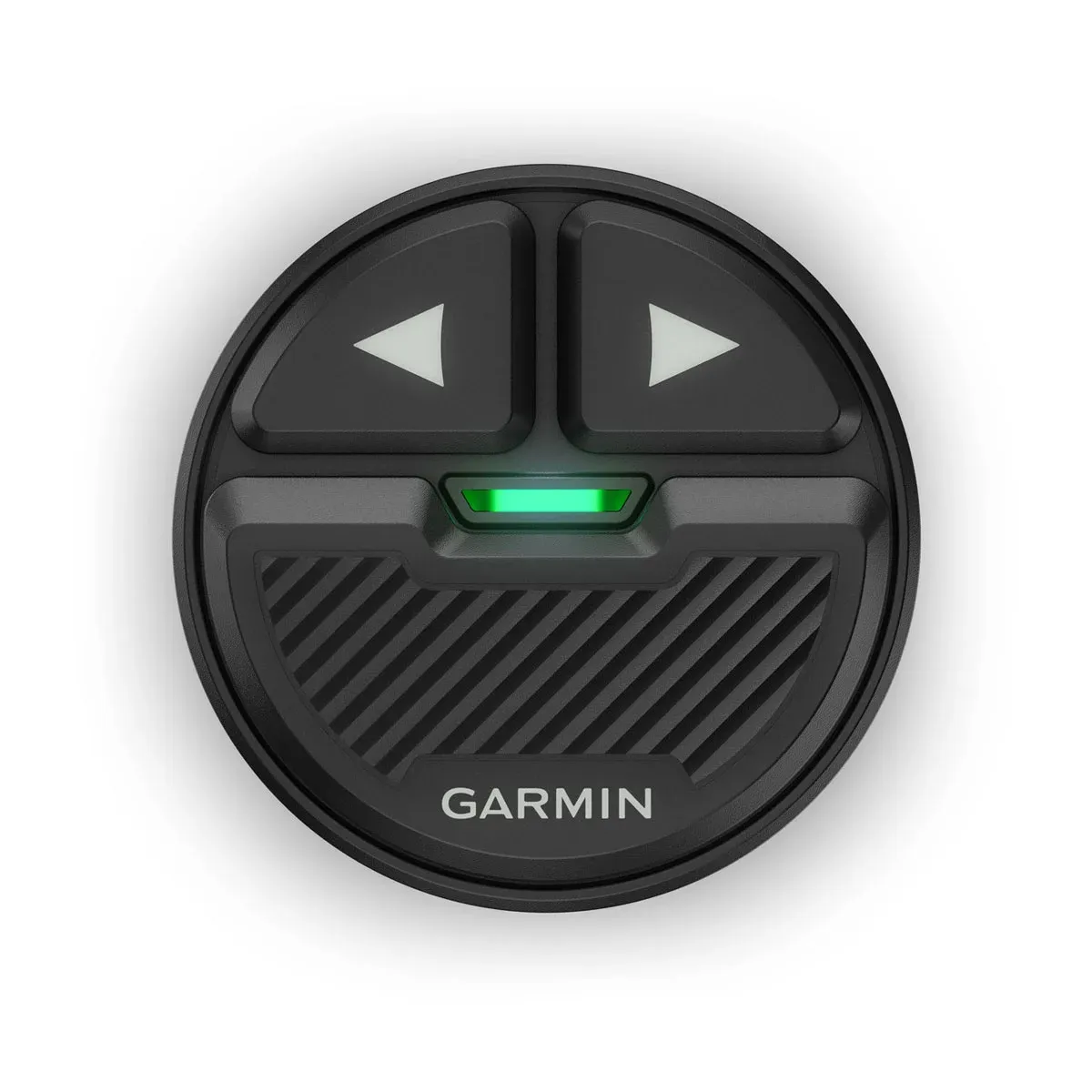

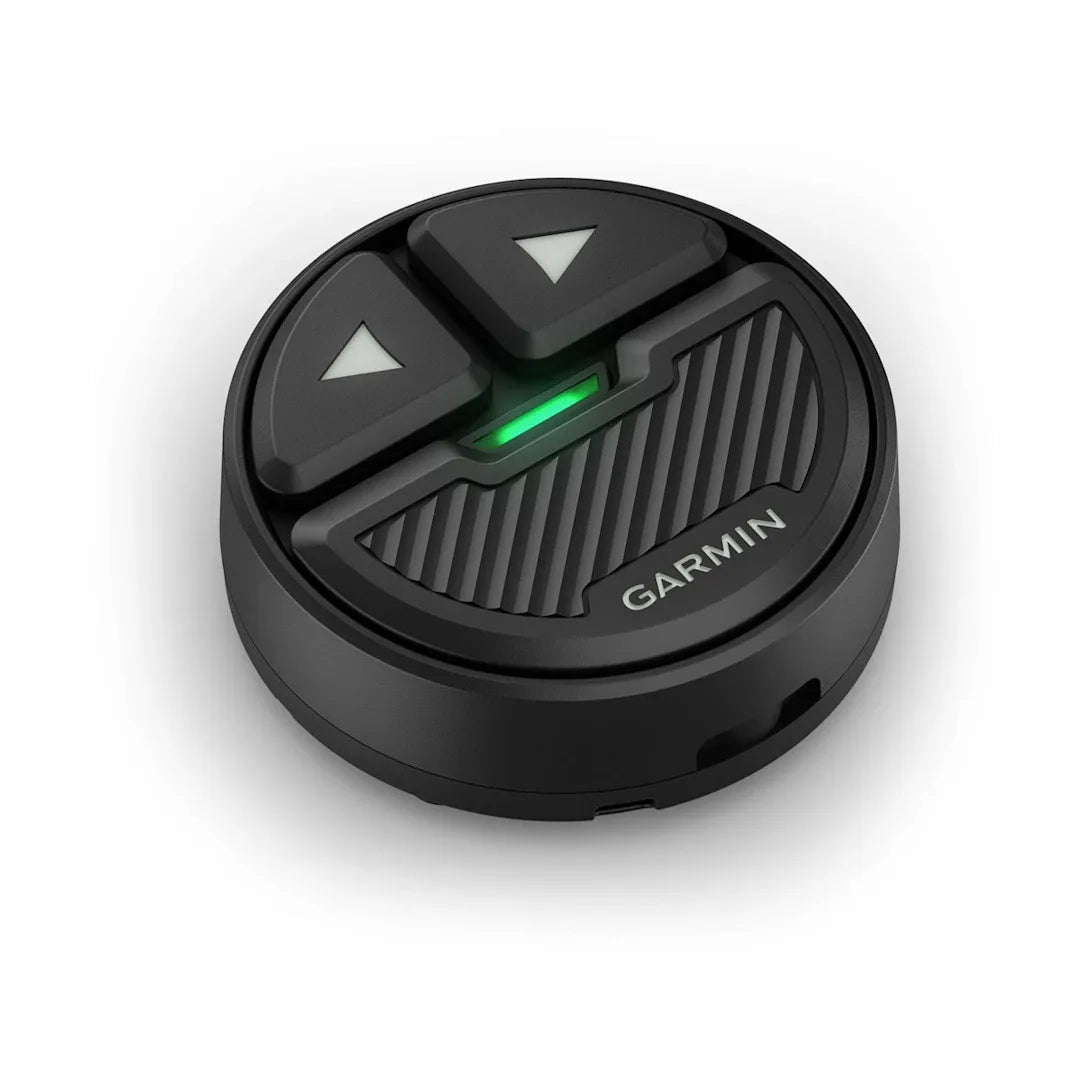

Garmin Gesture Remote, For Spy Pole Mount, IPX7, CR2032

Overview

The Garmin 010-13404-10 is a low-profile handheld gesture remote for Garmin Spy Pole systems, giving anglers direct control of pole movement from a hand, hat, lanyard, or fishing rod setup. It uses gesture steering and programmable buttons, so the Spy Pole can be adjusted while fishing without moving back to the helm or interrupting rod control.

This remote is built for on-deck use around freshwater spray, rain, and washdowns, with an IPX7 water rating and a lightweight body that weighs 14 g with the included battery. Power comes from one CR2032 lithium coin cell battery, with typical battery life rated for a full season of use.

For boats using Spy Pole to aim sonar while casting, tracking structure, or holding attention on a target, this remote keeps control close to the angler. It is especially useful on fishing boats where the operator may shift between the bow, cockpit, and casting position during the same trip.

Key features

• Gesture steering lets the user maneuver the Spy Pole with natural hand movement rather than relying only on fixed controls.
• User-programmable buttons can be assigned to Spy Pole functions for quicker access during active fishing.
• Includes four mounting approaches for flexible on-board use: hat, lanyard, pole or blank, and pole or band mounting.
• Runs on one included CR2032 lithium coin cell battery, so no boat wiring is needed for the remote itself.
• IPX7 water rating supports use in exposed fishing positions where spray and wet hands are part of normal operation.
• Operates from -15 to 55 degrees C, covering common seasonal fishing conditions.
• 2.4 GHz wireless operation connects the remote to the Spy Pole without a physical control cable.
• The Spy Pole system can pair with up to five gesture remotes when more than one control position is needed.

Compatibility and fit

This remote is made for Garmin Spy Pole control. It is not a general-purpose remote for unrelated trolling motors, chartplotters, or marine electronics, so fitment should be checked against the Spy Pole system on the boat before purchase.

The compact handheld format makes sense for anglers who want pole direction control at the rod, near the bow, or from another fishing position away from the primary display. The included mounting options allow the same remote to be carried on the body or secured near the rod setup, depending on how the boat is fished.

Installation and setup

Setup centers on mounting the remote in the preferred location and pairing it with the Spy Pole. The remote can be attached using the supplied hat, lanyard, pole or blank, or pole or band mounting parts, which gives flexibility for different deck layouts and fishing styles.

Because the remote is powered by a CR2032 battery, installation does not require routing power leads, adding a breaker, or tying into the boat’s DC distribution panel. Keep the remote within practical reach of the fishing position, and avoid placing it where it can be stepped on, dropped into tackle, or knocked loose while running.

Use cases on board

This remote is a good match for anglers using Spy Pole to control sonar direction while casting, vertical jigging, scanning structure, or following fish around cover. Rod-mounted or wearable control is useful when small direction changes need to happen quickly and the angler’s focus needs to stay on the water.

On multi-angler boats, the ability to pair more than one gesture remote can help support different control positions. That can be helpful when the person watching the sonar is not always the person standing next to the main controls.

Maintenance and care

After use in wet or dirty conditions, wipe the remote dry and check that the mounting hardware remains secure. For saltwater or brackish use, rinse exposed mounting parts with fresh water and dry the remote before storage.

Replace the CR2032 battery when response becomes inconsistent or at the start of the season as part of normal electronics prep. Store the remote where it will not be crushed by tackle boxes, batteries, anchors, or other heavy gear.

What’s included

• Gesture remote for Spy Pole
• Four mounting options: 1 hat mount, 1 lanyard mount, 2 pole or blank mounts, and 2 pole or band mounts
• CR2032 lithium coin cell battery
• Hardware
