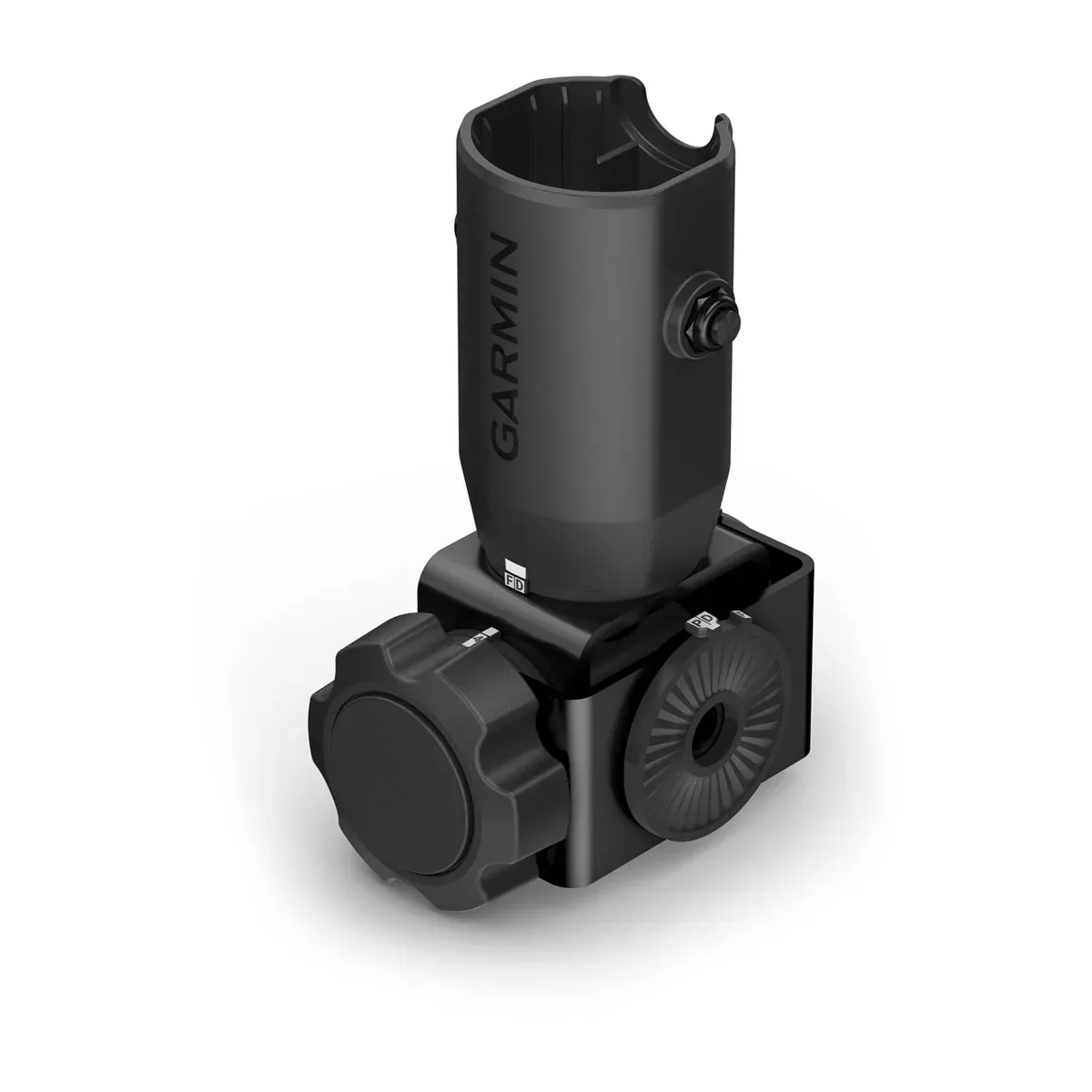

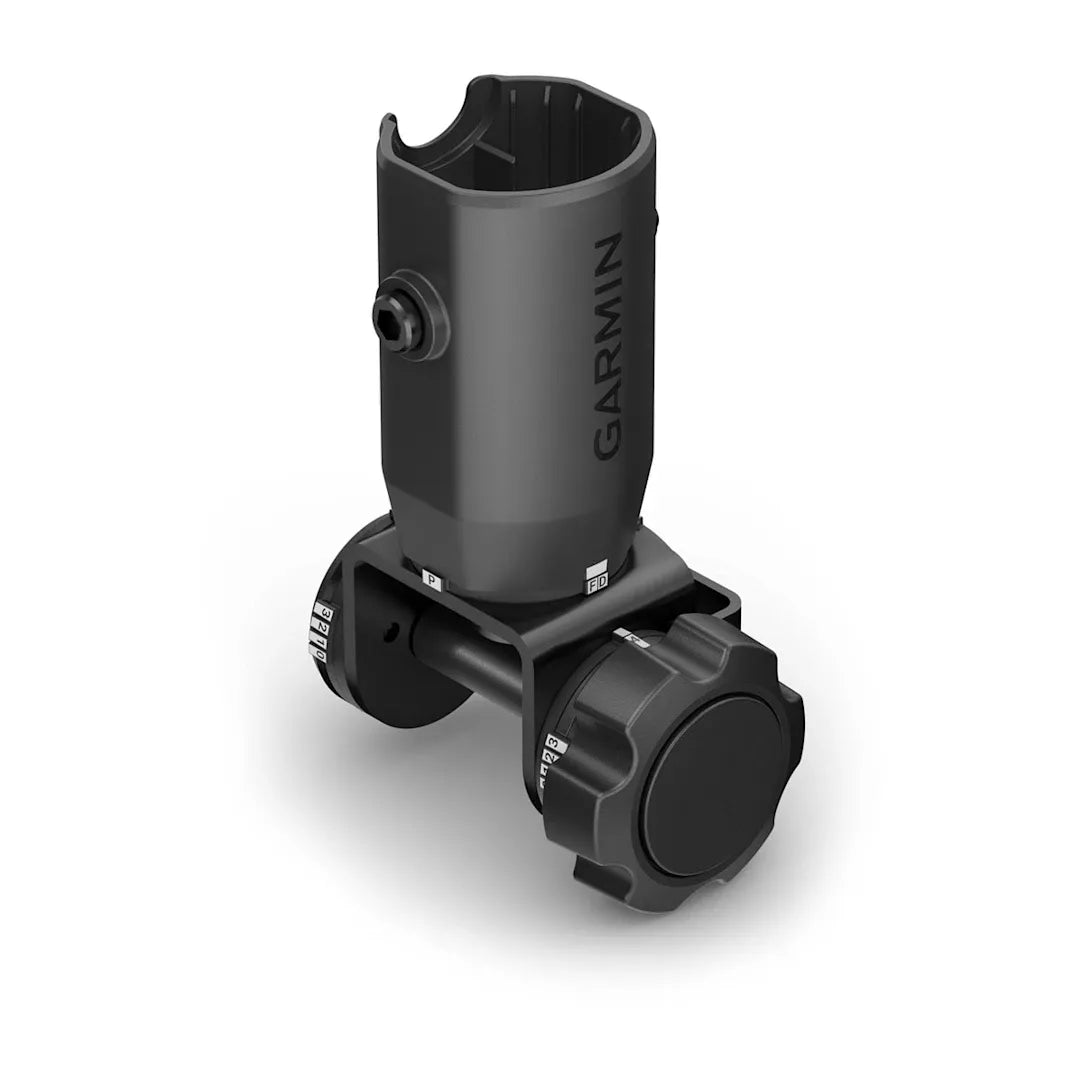

Garmin Adjustable Perspective Bottom Mount, For LiveScope Transducers, For Spy Pole, Forward Down Perspective Modes

Overview

The Garmin 010-13404-70 is an adjustable perspective bottom mount for Garmin LiveScope transducers, made for attaching the transducer to the bottom of a Garmin Spy Pole. It gives anglers access to forward, down, and perspective viewing positions from a pole-mounted LiveScope setup.

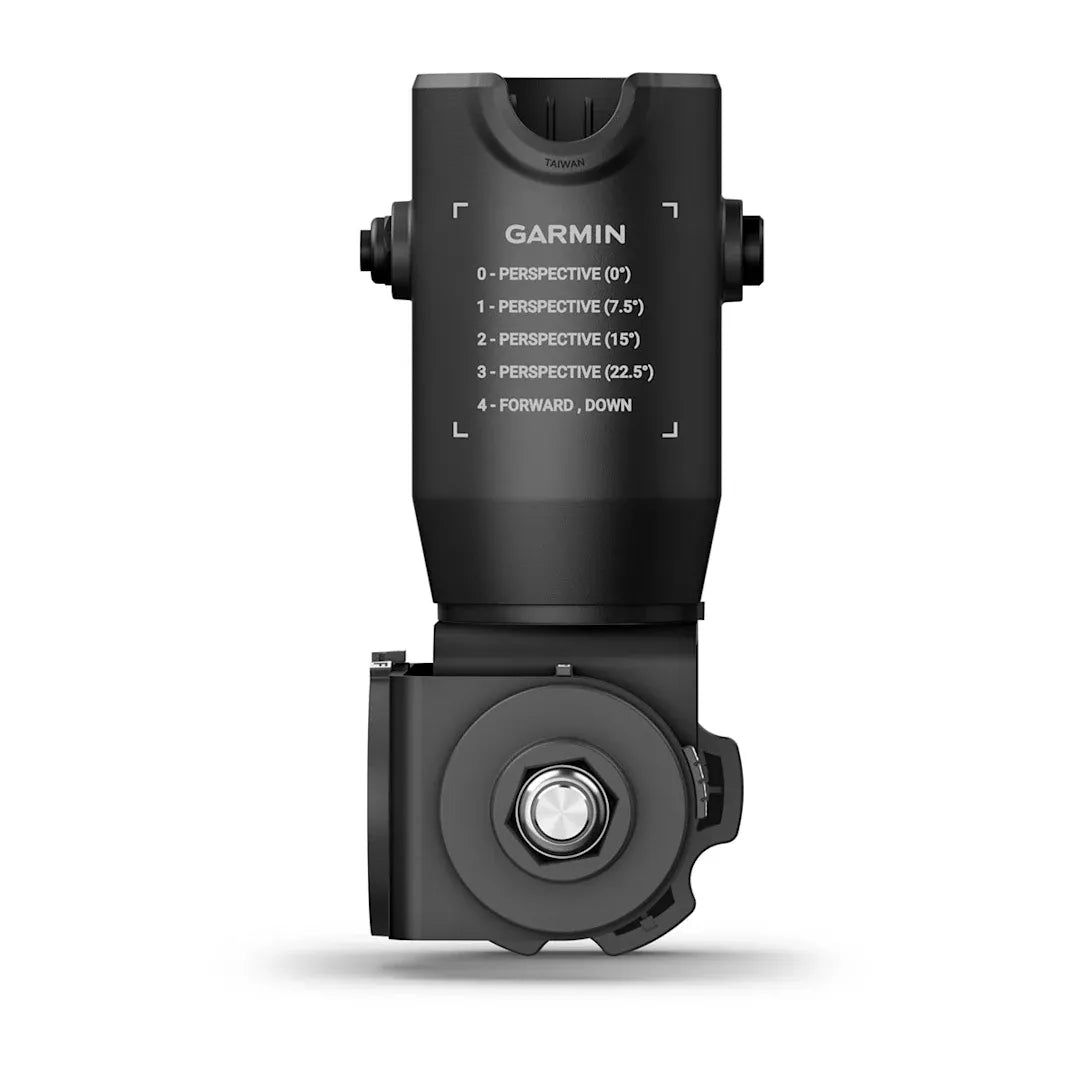

The mount supports forward at 0 degrees, down at 0 degrees, and perspective positions at 0, 7.5, 15, and 22.5 degrees. Those angle options are useful when switching between scanning ahead of the boat, looking directly below, and covering a wider shallow-water area from the same transducer position.

This is a mechanical mounting accessory rather than an electronic component, so it does not change the transducer wiring, chartplotter connection, or sonar module requirements of the LiveScope system already on board.

Key features

• Bottom-mount setup for attaching a compatible LiveScope transducer to the bottom of a Garmin Spy Pole.
• Supports forward and down viewing positions at 0 degrees for straightforward directional scanning.
• Adjustable perspective positions at 0, 7.5, 15, and 22.5 degrees help fine-tune the sonar view for different fishing situations.
• Works as a clean mounting solution for anglers who use a pole-mounted LiveScope setup rather than relying only on a trolling motor shaft position.
• No electrical integration is added by the mount, which keeps the existing LiveScope power, sonar, and display connections unchanged.

Installation and setup

This mount is intended for the bottom of a Spy Pole, where the LiveScope transducer can be positioned and adjusted for the viewing angle needed on the water. The angle changes are especially helpful when moving between dock shooting, shallow flats, weed edges, brush piles, or vertical presentations where the sonar view needs to match the way the boat is being fished.

During installation, the transducer should be secured according to the LiveScope and Spy Pole mounting instructions, with the cable routed so it is not pinched, twisted, or pulled tight as the pole is rotated or adjusted. A clean cable path also helps reduce strain around the transducer body during repeated use.

Compatibility and fit

This mount is for Garmin LiveScope transducers used with a Garmin Spy Pole bottom-mount arrangement. It is most relevant for anglers who already have a LiveScope system and need a way to position the transducer from the pole rather than mounting it directly to another location on the boat.

Before installation, check that the transducer model, Spy Pole setup, and available clearance around the bottom of the pole match the planned mounting position. This helps avoid interference with the trolling motor, hull, trailer bunks, deck hardware, or other gear when the pole is deployed, stowed, or turned.

Use cases on board

This mount suits fishing boats that use real-time sonar for precise casting, vertical jigging, and target tracking. It is a practical fit for anglers who want repeatable viewing angles from a dedicated pole setup while keeping the sonar direction separate from trolling motor steering.
