Overview

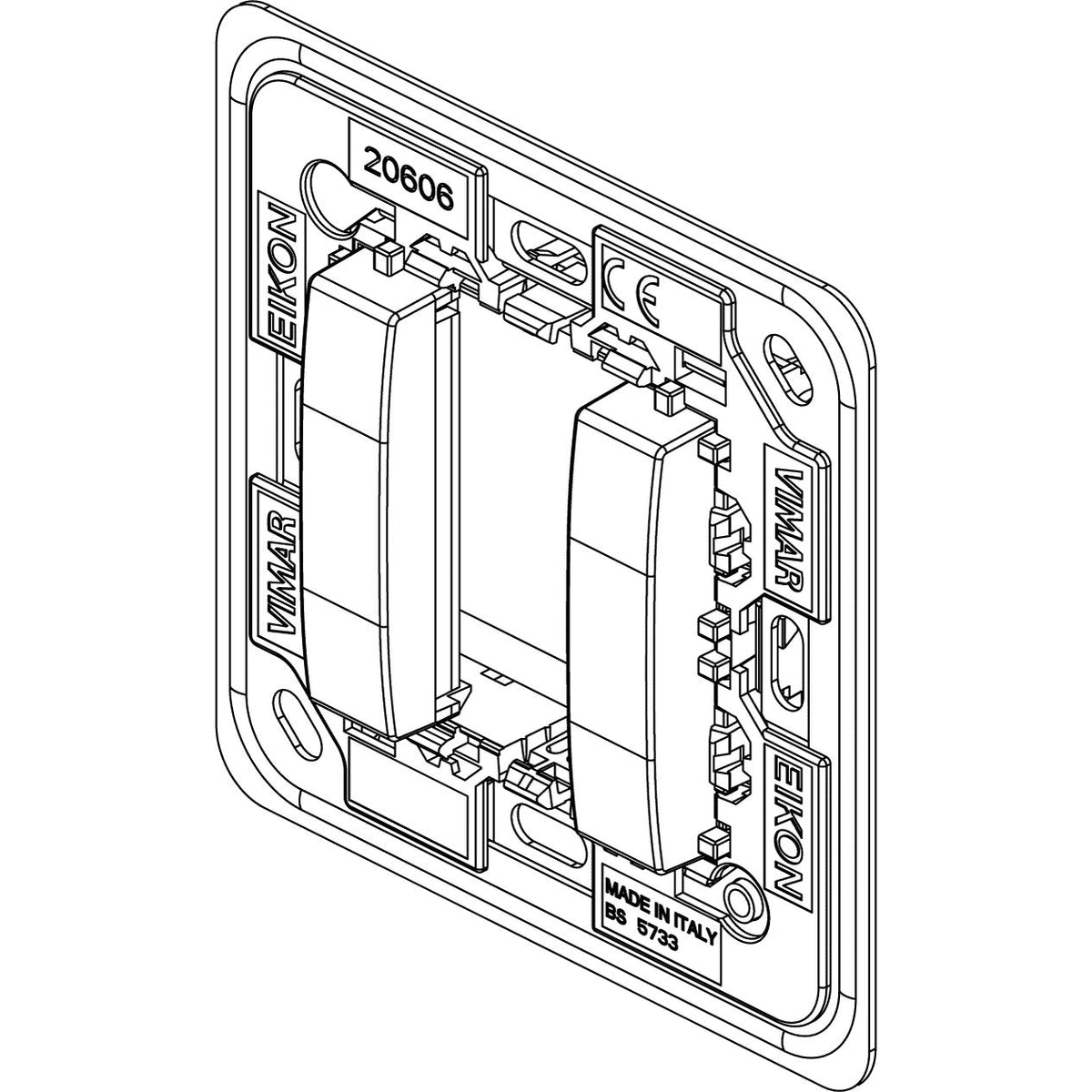

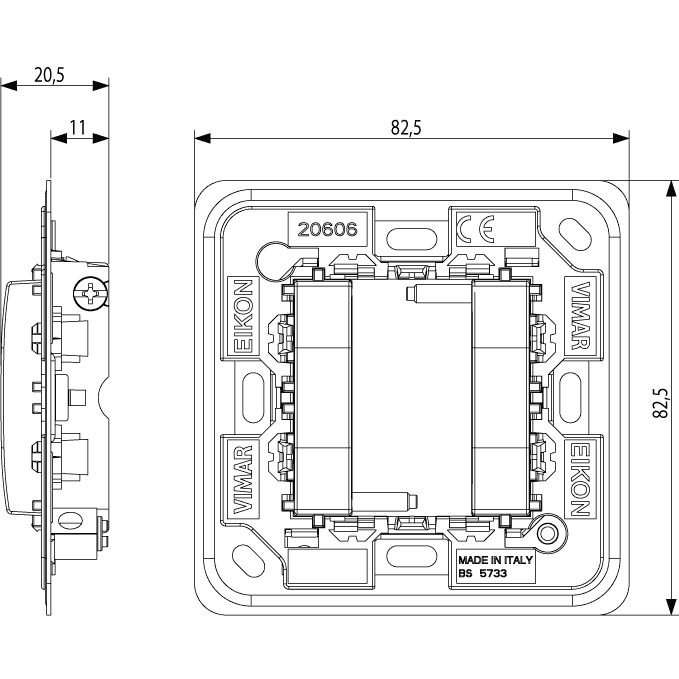

The Vimar Eikon 20606 is a 1-module mounting frame for square British Standard mounting boxes. It is a flush-mounted support, it accepts front-side module insertion, and it can be installed horizontally or vertically.

In this range, the grey, white, and Next finish variants use thermoplastic frames, while the no blank module version uses a metal frame. All four versions are supplied with screws and are built around the same single-module British Standard box format.

For marine refits and new interior installations, this is the support frame that helps a single compatible Eikon device sit correctly in a cabin panel, galley switch position, berth area, or helm console that uses square BS boxes. It is not intended for round 60 mm junction boxes, wall ducts, subfloor installation duct boxes, or 35 mm DIN rail mounting.

Key features

• 1-module frame sized for square British Standard mounting boxes.
• Can be mounted horizontally or vertically with one module in either direction.
• Flush-mounted support with front-side module insertion.
• Supplied with screws for installation.
• Central slots support positioning at wall or panel level.
• Grey, white, and Next finish variants use thermoplastic, while the no blank module version uses metal.
• Not suitable for round 60 mm boxes, wall ducts, subfloor installation duct boxes, or 35 mm DIN rail mounting.

Variants

This product is offered in four configurations.

Across the range, the shared format is a 1-module frame for square British Standard mounting boxes with screws and support for horizontal or vertical installation. The visible finish changes on three variants, while one version is supplied with no blank module.

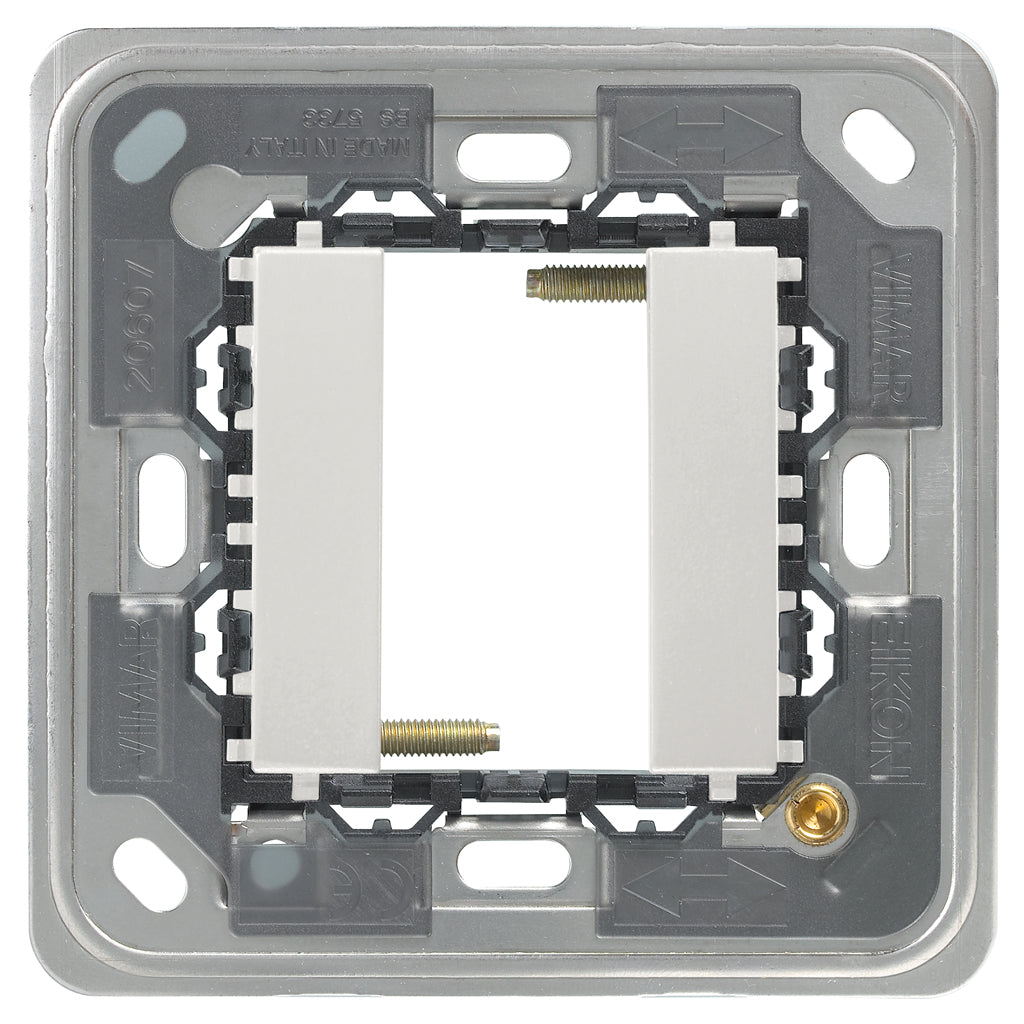

• VM20606.N: Color Silver / Next finish. This version keeps the same 1-module British Standard box format and changes the visible frame finish around the installed device.

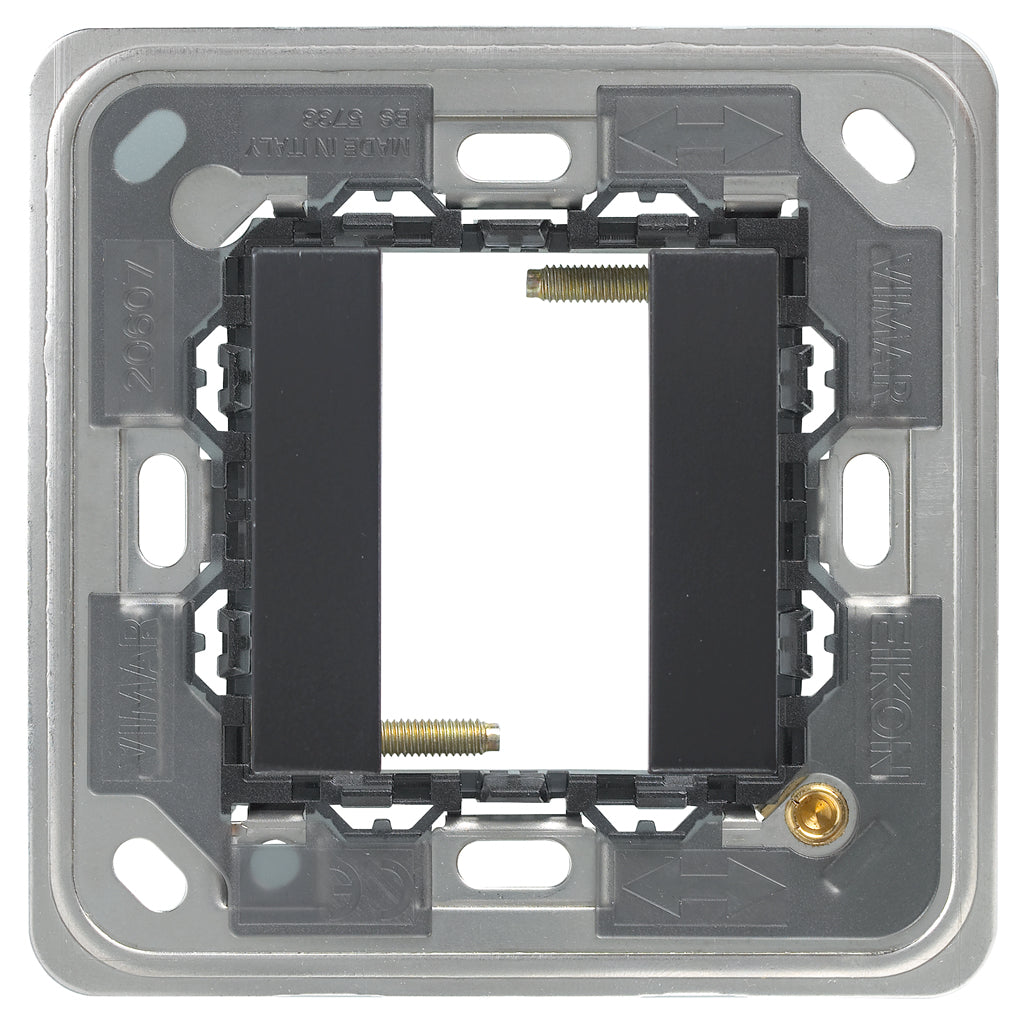

• VM20606: Color Grey. This is the grey frame option in the same 1-module layout for square British Standard boxes.

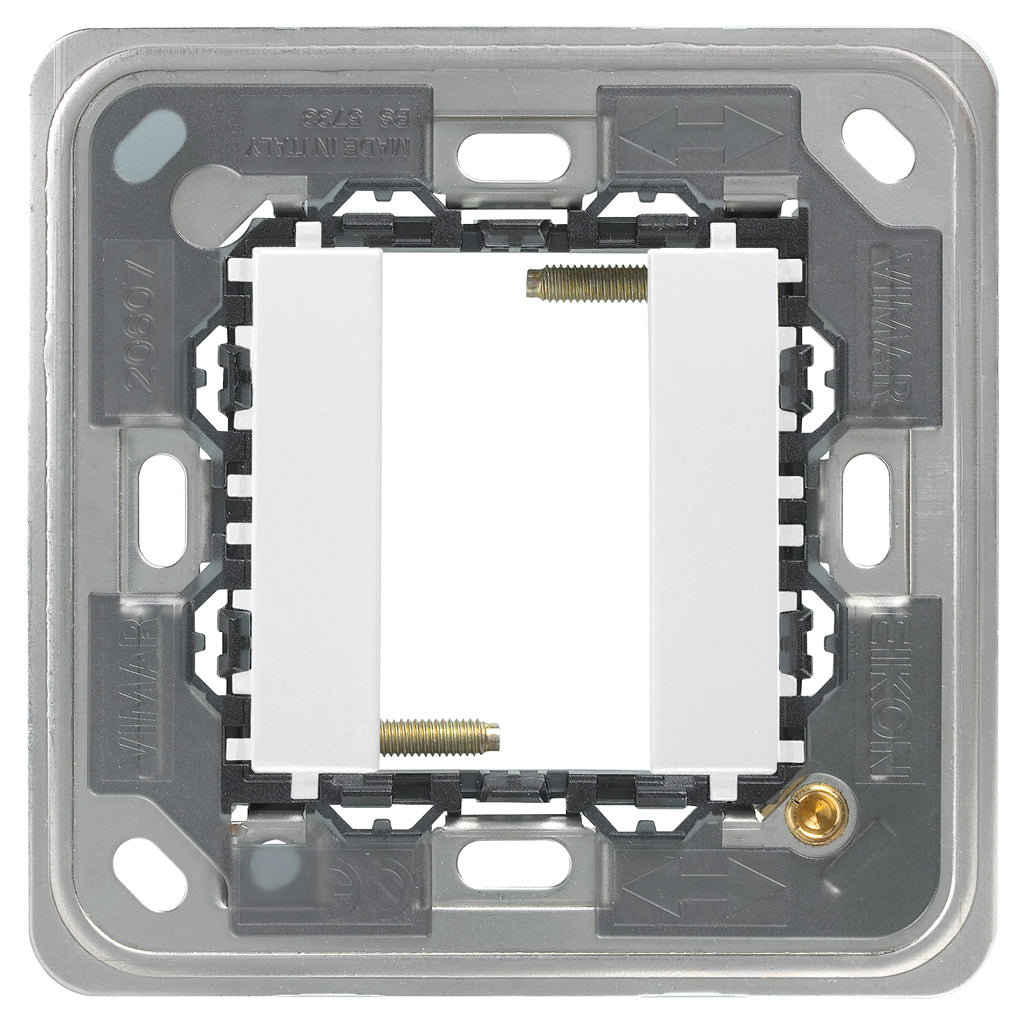

• VM20606.B: Color White. This keeps the same fit and gives a lighter frame finish around the installed module.

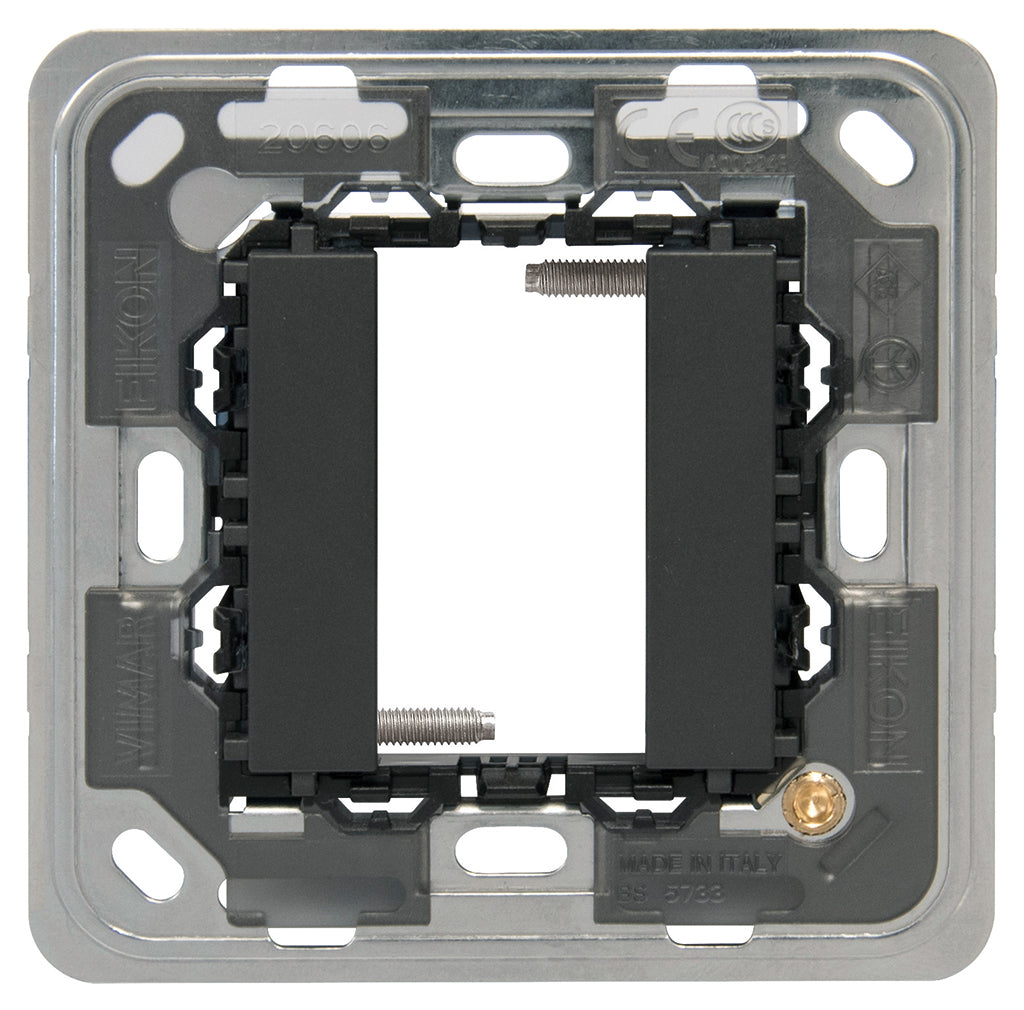

• VM20606.0: No blank module configuration. This version does not include a blank module in the opening and uses a metal frame.

Compatibility and fit

This frame belongs to the Eikon range and is a fit-driven part before anything else. Check that your installation uses a square British Standard mounting box, that you need a single module position, and that the device you are fitting is part of the same modular system.

On boats, that usually means protected interior electrical points rather than mixed-format enclosures or box systems built around round back boxes. It is a good match where the panel cutout, box style, and device family have already been chosen and you need the correct support frame to finish the assembly properly.

Installation and use on board

The horizontal and vertical mounting option makes it easier to keep a consistent switch and outlet layout across cabins, galleys, and interior control panels. The screw-mounted format and central slots help when you need to align the frame cleanly before the front components are fitted.

This range suits marine electricians, refit yards, and owners replacing or standardizing interior Vimar Eikon points one module at a time. It is especially useful when the goal is to keep the box format consistent while matching the visible finish to the rest of the panel.
