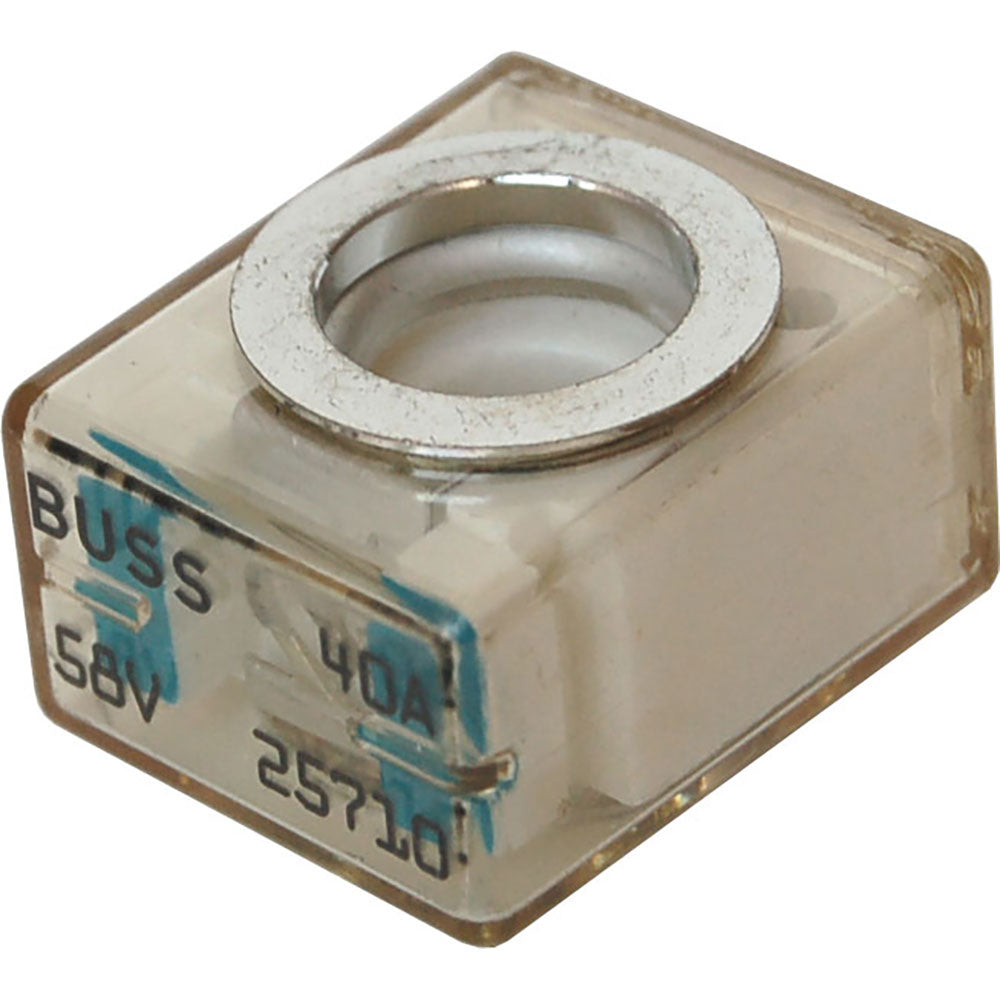

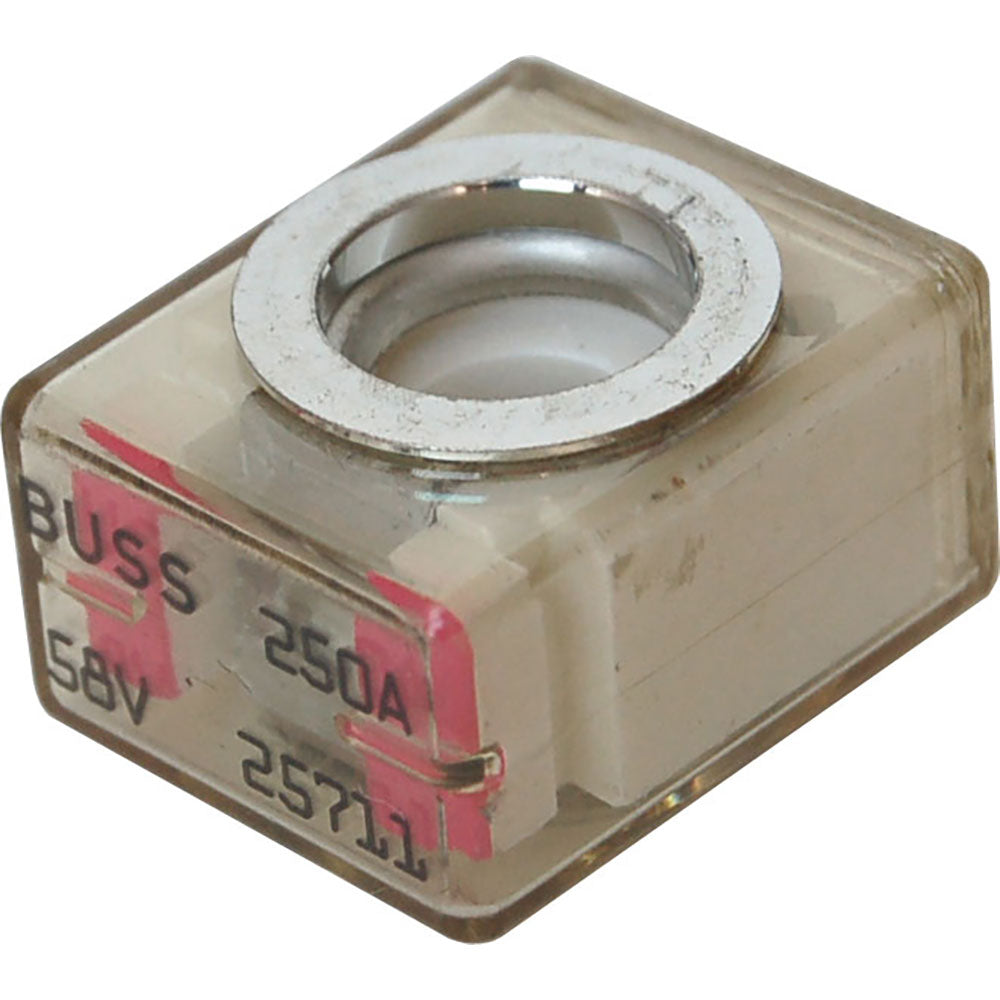

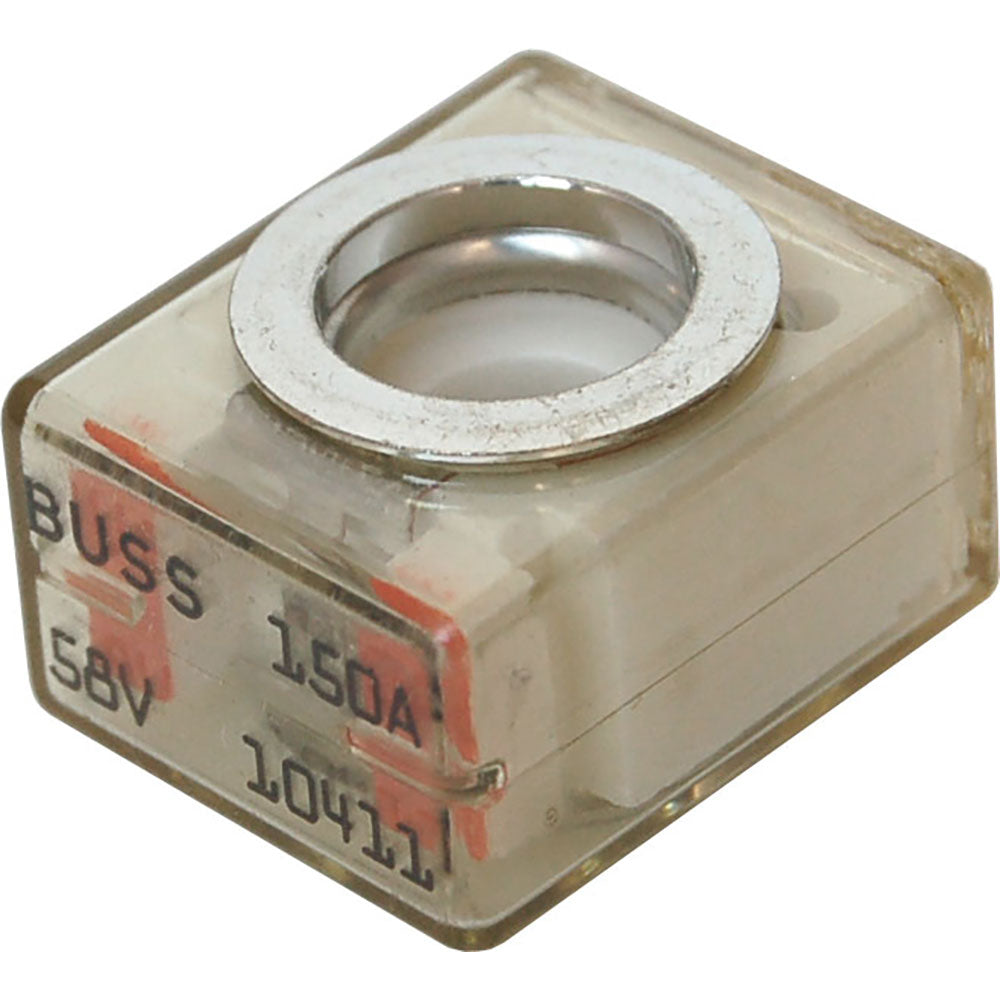

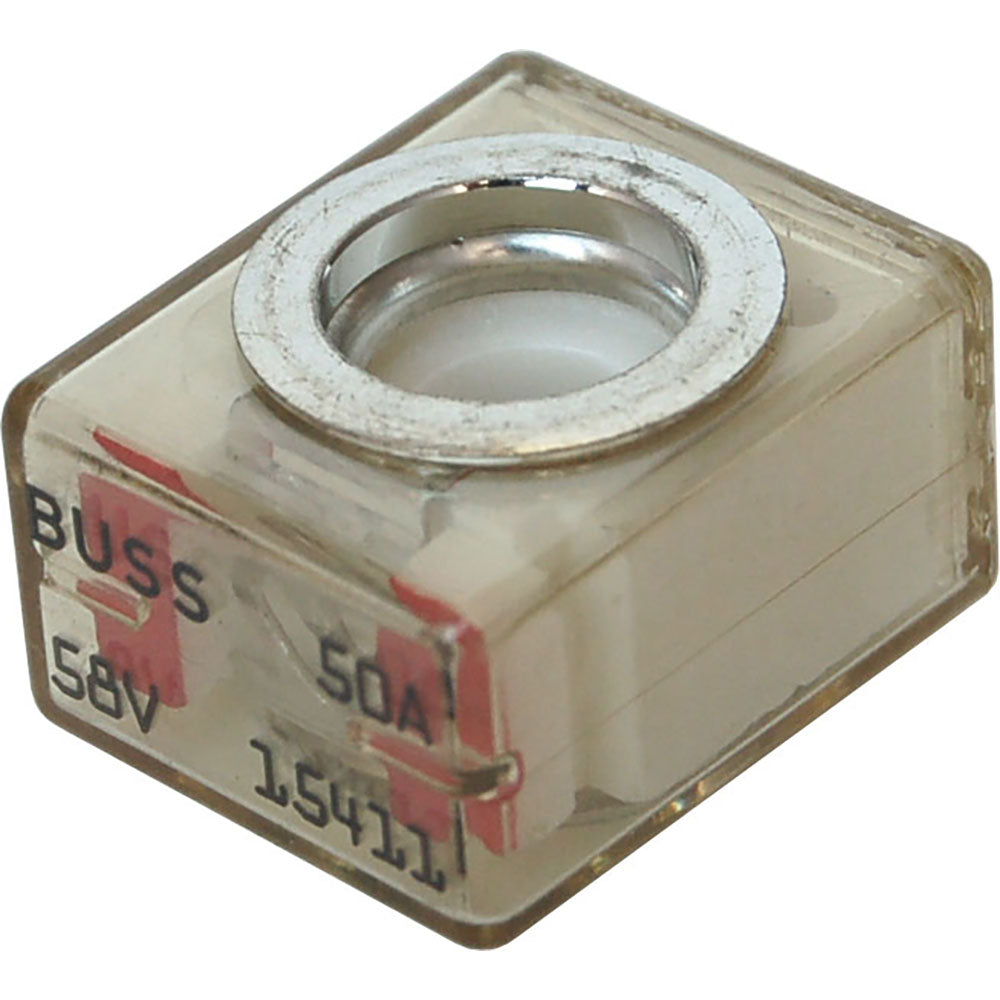

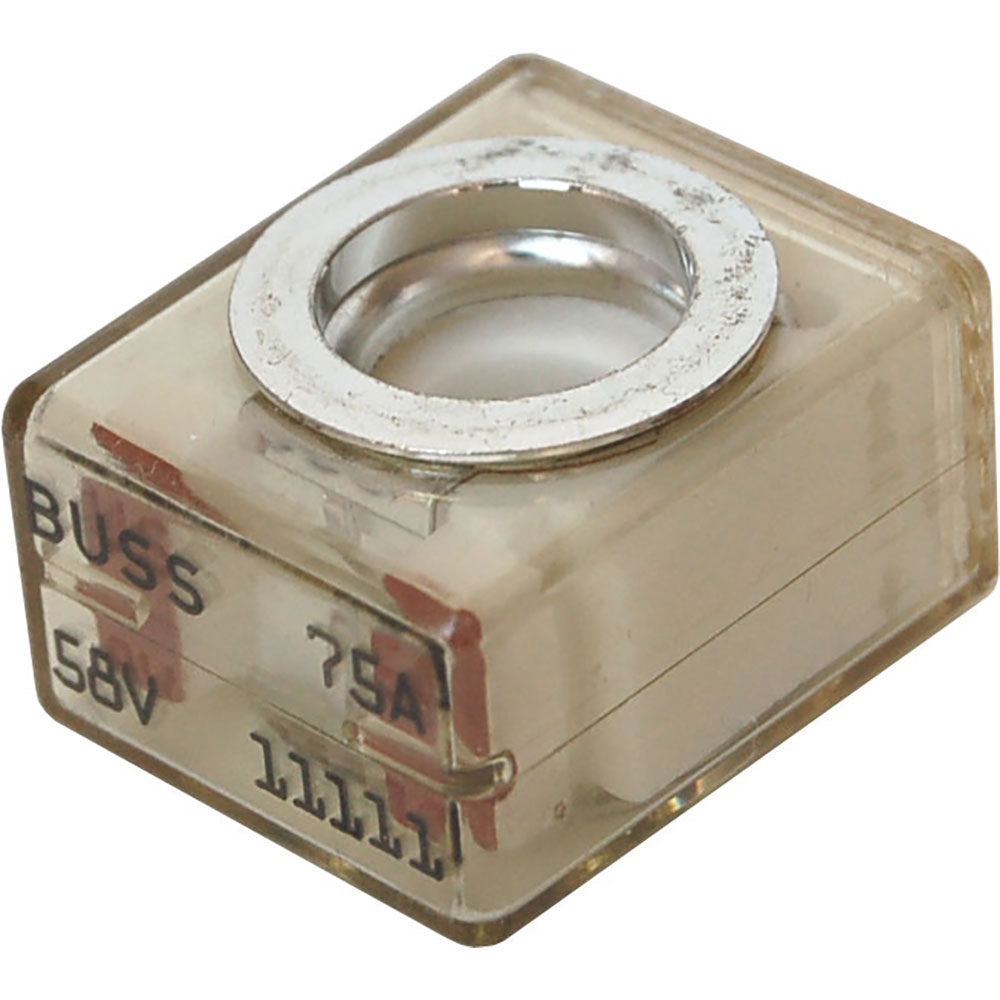

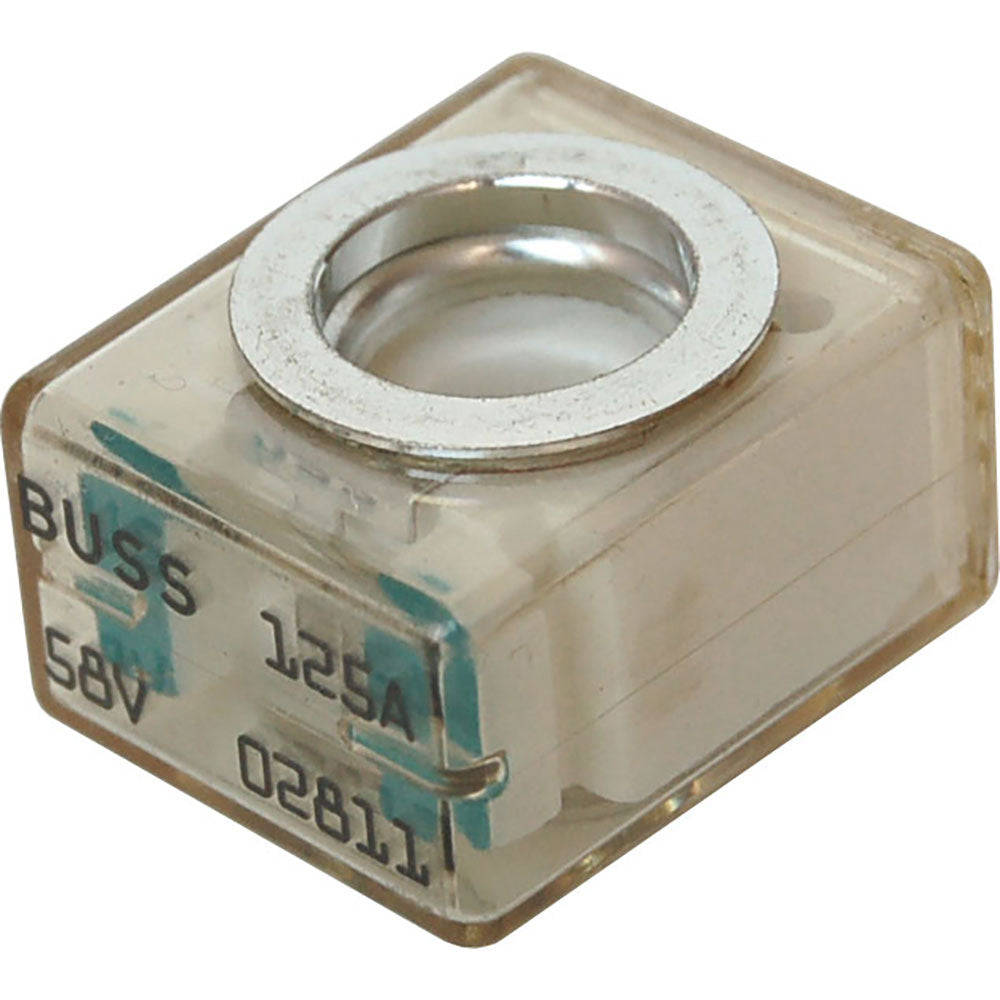

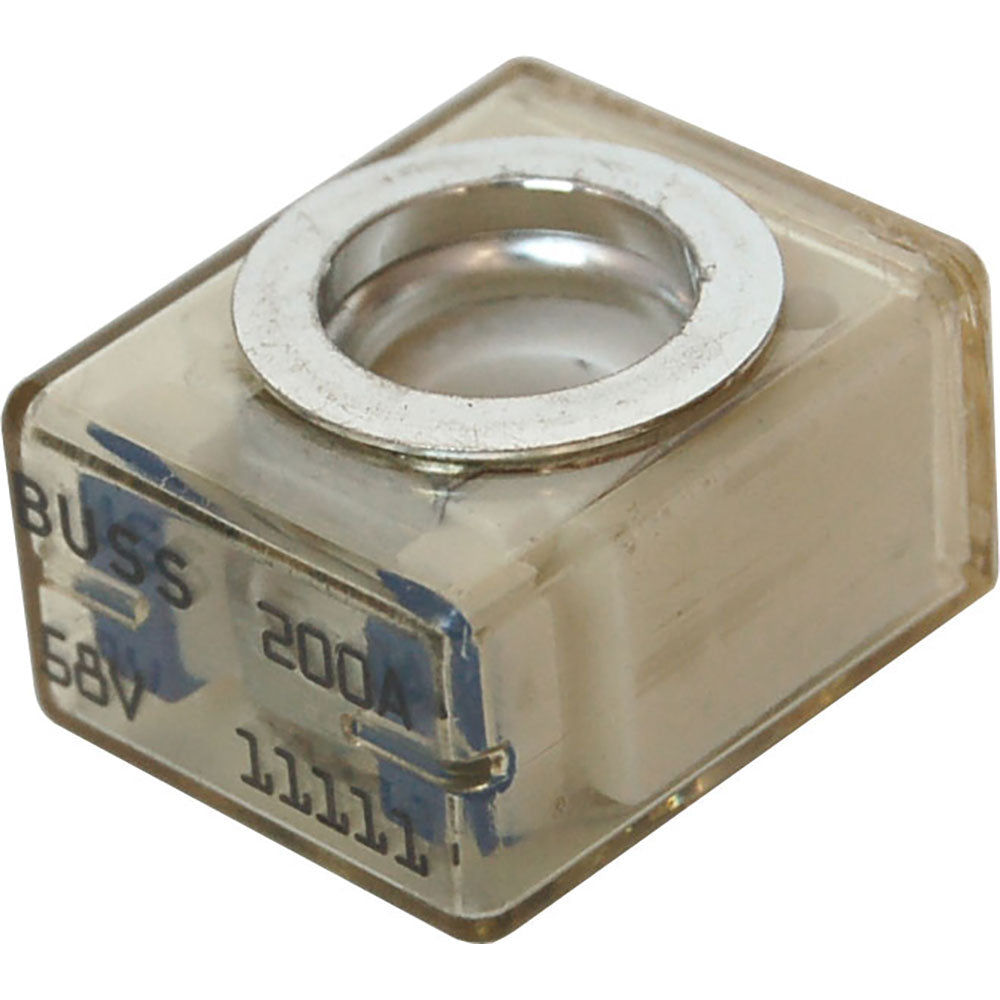

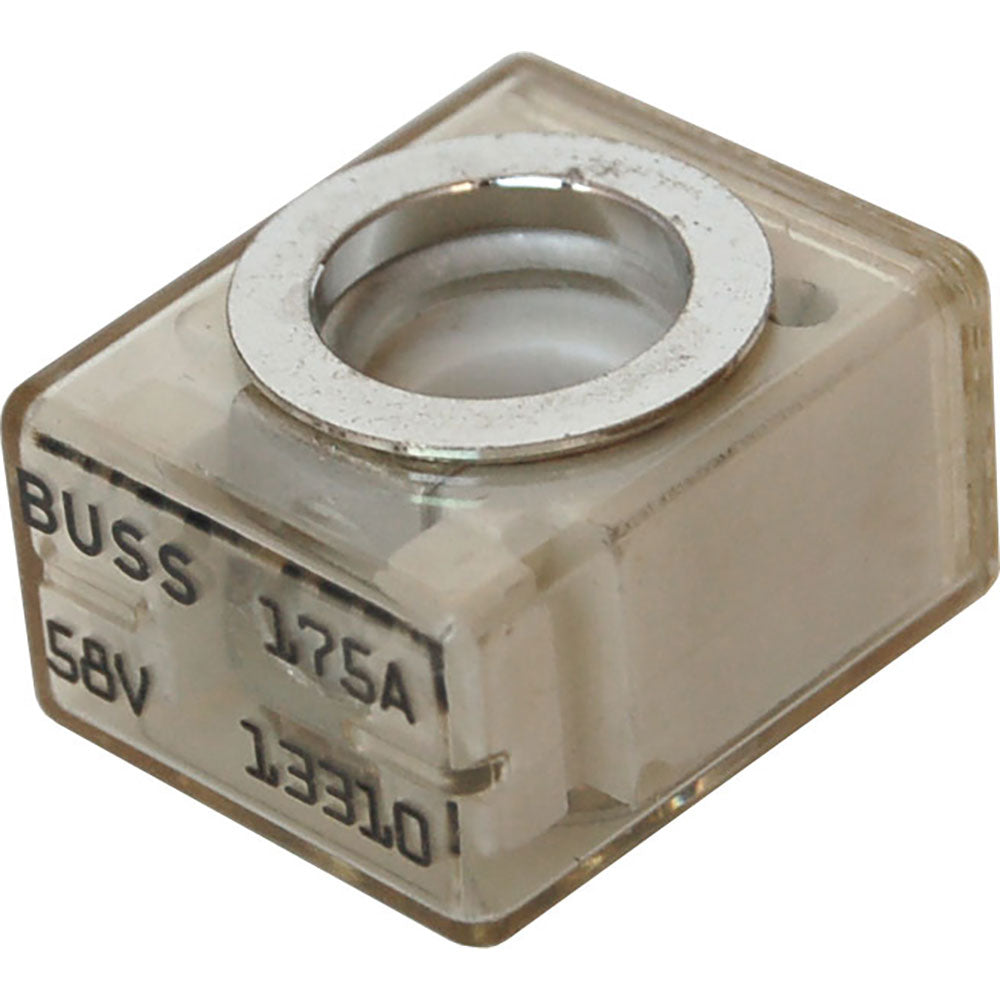

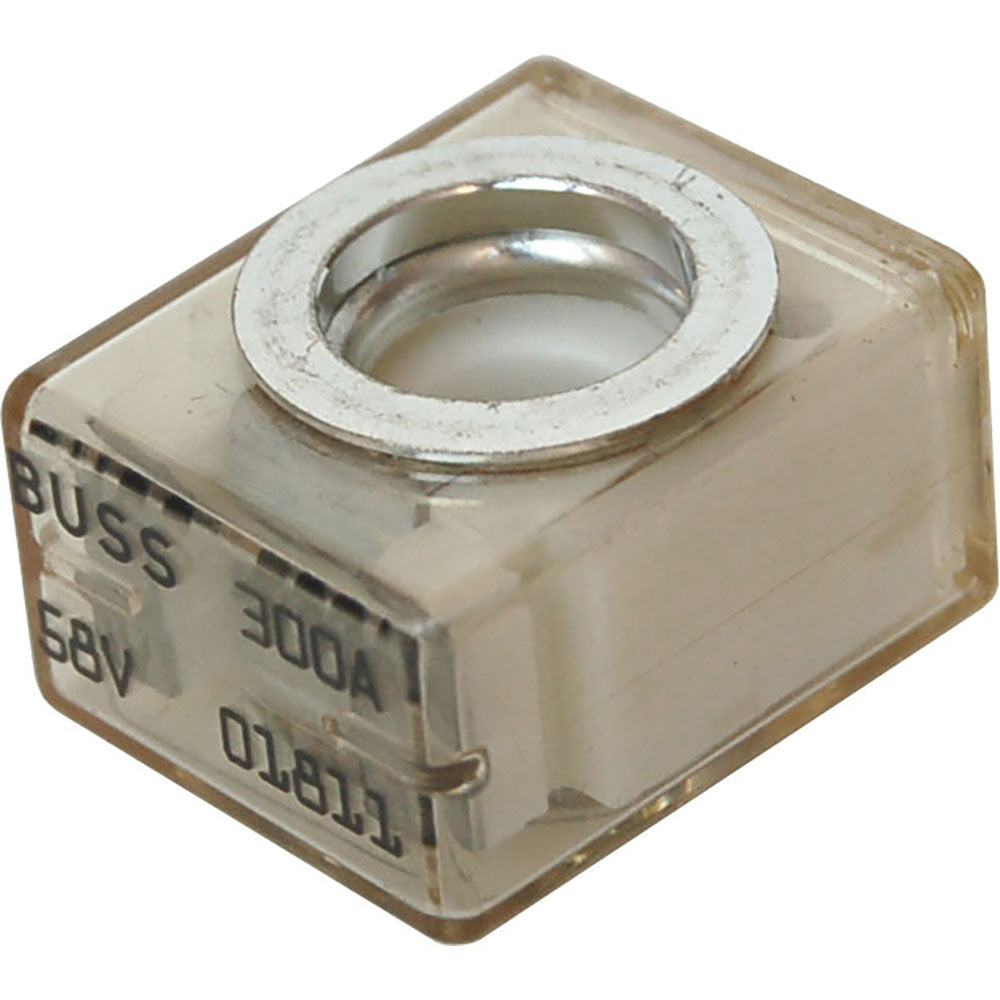

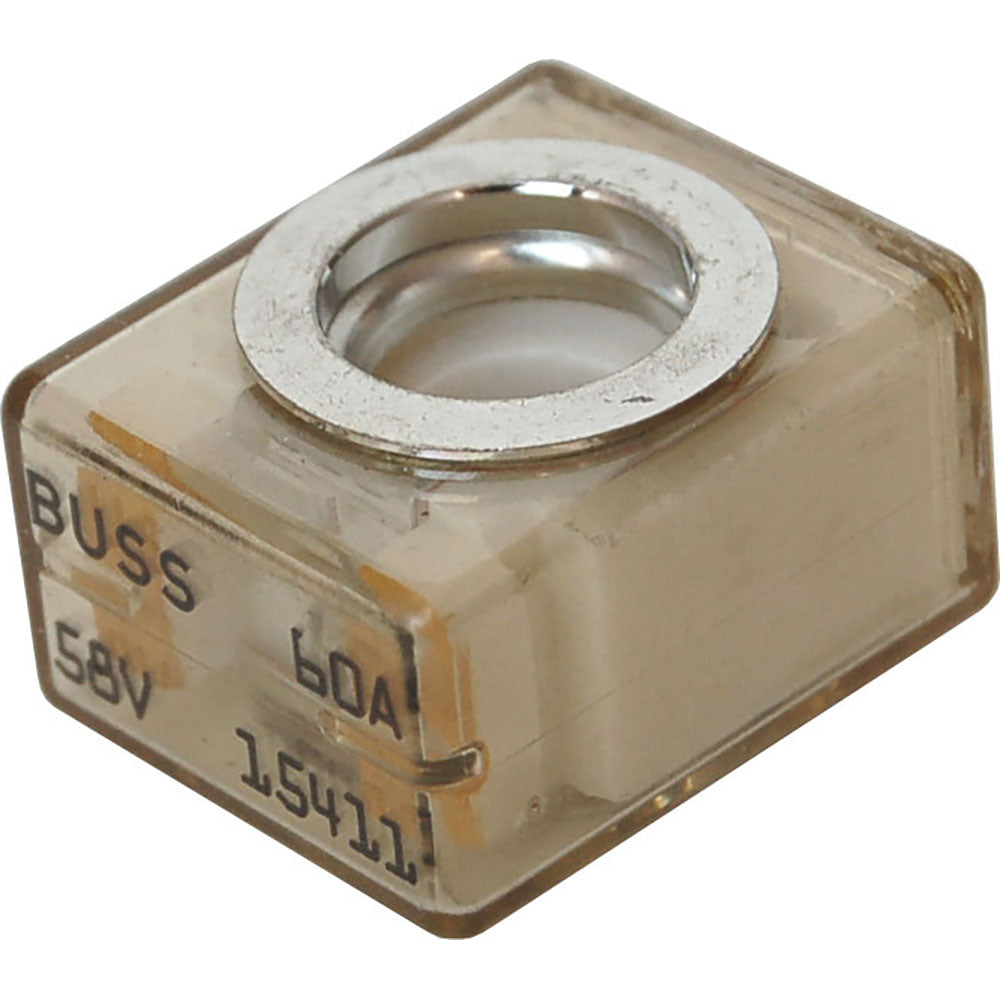

Blue Sea Systems MRBF Terminal Fuse, 58V DC, Ignition Protected, Clear Window

Overview

The Blue Sea Systems MRBF Terminal Fuse is a Marine Rated Battery Fuse for high-current DC circuit protection close to the battery, with amperage options from 30A to 300A and a maximum voltage rating of 58V DC. It is used with a compatible Blue Sea Systems Terminal Fuse Block and is not intended to be mounted directly to a battery terminal.

This fuse format is useful where battery cable protection needs to stay compact, such as DC main feeds, inverter circuits, windlass circuits, bow thruster circuits, and other high-load battery-based systems. Its interrupt capacity is 10,000A at 14V DC, 5,000A at 32V DC, and 2,000A at 58V DC, which supports proper protection on large battery banks when the fuse rating is selected to match the conductor and system design.

Each fuse has a clear window for checking blown condition and color coding by amperage, so service checks are faster in a battery compartment, engine space, or electrical locker. The fuse is ignition protected, making it suitable for installation aboard gasoline-powered boats when installed with the required fuse block and correct marine wiring practices.

Key features

• Marine Rated Battery Fuse format for compact protection near battery banks and high-current DC distribution points.
• Available amperage range from 30A to 300A for matching the fuse to the protected cable and connected load.
• 58V DC maximum voltage rating for use across common 12V, 24V, and 48V DC marine electrical systems within the rated limit.
• Interrupt capacity of 10,000A at 14V DC, 5,000A at 32V DC, and 2,000A at 58V DC.
• Ignition protected for use on gasoline-powered boats when installed correctly with the required terminal fuse block.
• Clear inspection window shows blown condition without removing the fuse from the installation.
• Color-coded amperage identification helps reduce confusion during maintenance or replacement.
• Requires Blue Sea Systems Terminal Fuse Block 5191 or 2151 for proper mounting and use.

Variants

This range varies by amperage rating, with options from 30A through 300A. The lower amperage versions are commonly selected for smaller DC branch or feed circuits, while the higher amperage versions are suited to larger battery cables and equipment loads when the conductor size and circuit design call for that rating.

The fuse format, maximum voltage rating, ignition protection, blown-fuse window, color-coded identification, and requirement for a compatible terminal fuse block remain consistent across the range. Final fuse selection should be based on the protected cable size, expected load, and the vessel electrical plan rather than the equipment name alone.

Installation and fit

This fuse must be installed on a compatible terminal fuse block, not directly on a battery post. That keeps the connection mechanically supported and gives the fuse the correct mounting arrangement for high-current service.

Because it is often installed close to batteries, clean cable routing and protected terminals matter. Check that the ring terminals, fuse block, torque values, cable size, and overcurrent protection plan match the vessel’s DC system before energizing the circuit.

Use cases on board

This fuse family is a practical match for boats with battery banks feeding heavy DC loads or main distribution points, especially where space around the battery switch, bus bar, or battery compartment is limited. It is commonly used in powerboats, sailboats, fishing boats, and cruising vessels that need high-current protection in a compact footprint.

What’s included

• One MRBF Terminal Fuse
