Vimar Eikon Brazilian SICURY Socket Outlet, 2P+E, 10A, 250V, IP20

Overview

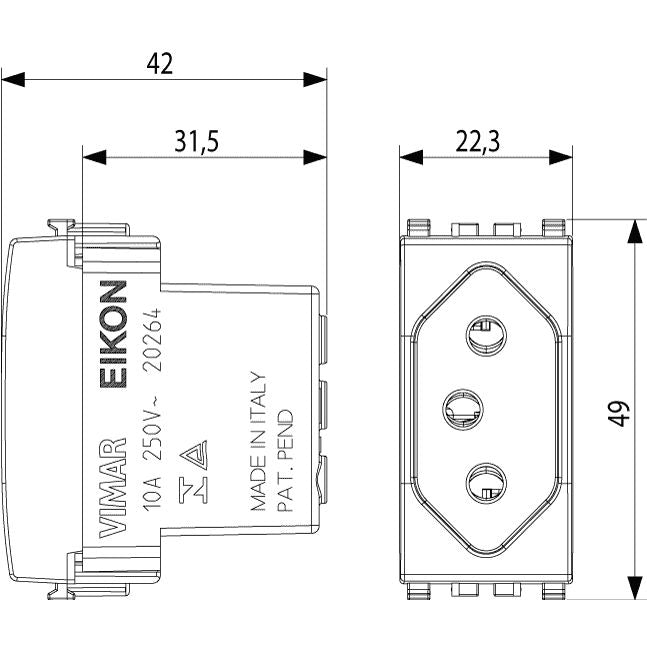

The Vimar Eikon 20264 SICURY Brazilian socket outlet is a flush-mounted 2P+E outlet for Brazilian-standard 10 A plugs, rated 250 V~ at 50 to 60 Hz. The device occupies 1 module and measures 22.3 mm wide, 49 mm high, and 42 mm deep, which helps when panel space is limited.

It uses screw terminals, includes SICURY contact protection, and has a halogen-free thermoplastic body with a matt finish. This is an IP20 outlet for interior use, so it belongs in dry spaces rather than exposed areas.

Key features

• Brazilian-standard 2P+E outlet rated 10 A and 250 V~ for 50 to 60 Hz circuits
• 1-module, flush-mounted format for Eikon installations

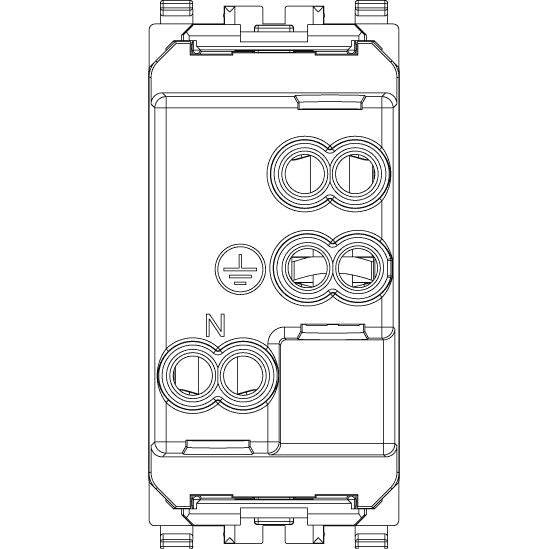

• Screw terminal connection for fixed wiring
• SICURY contact protection and label space on the front
• Halogen-free thermoplastic body with IP20 protection for dry interior locations

Variants

This outlet is offered in three finish options so the visible device can match the surrounding Eikon trim and interior panel color.

Across the range, the electrical and mounting format stays the same: each version is a 1-module, flush-mounted 2P+E 10 A 250 V Brazilian-standard outlet with screw terminals, IP20 protection, and the same 22.3 x 49 x 42 mm body.

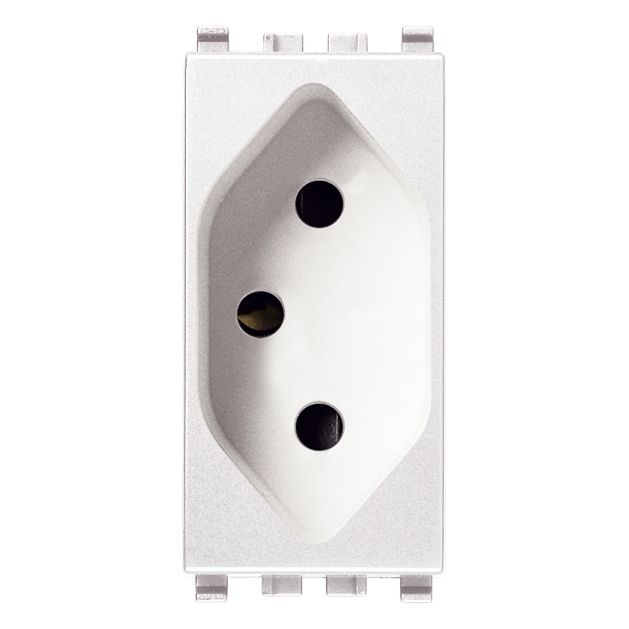

• VM20264.B: White. This finish sits quietly against white liners, cabin joinery, and other light interior surfaces.

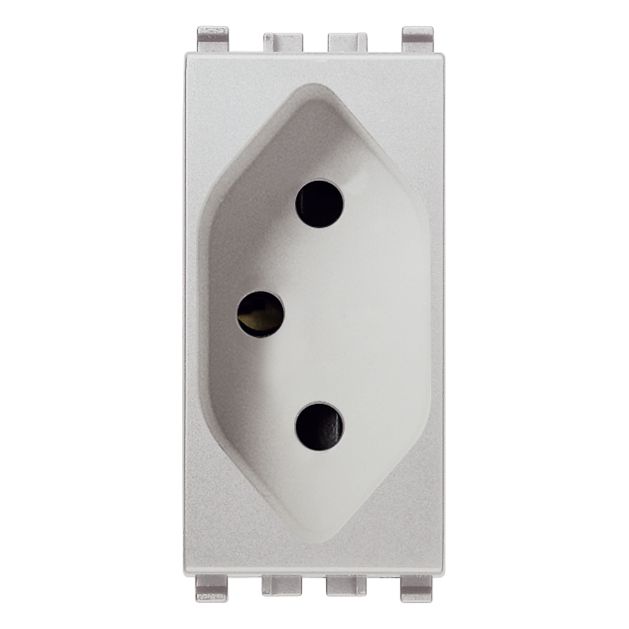

• VM20264.N: Silver. This finish works well where the rest of the installation has a cooler metallic look.

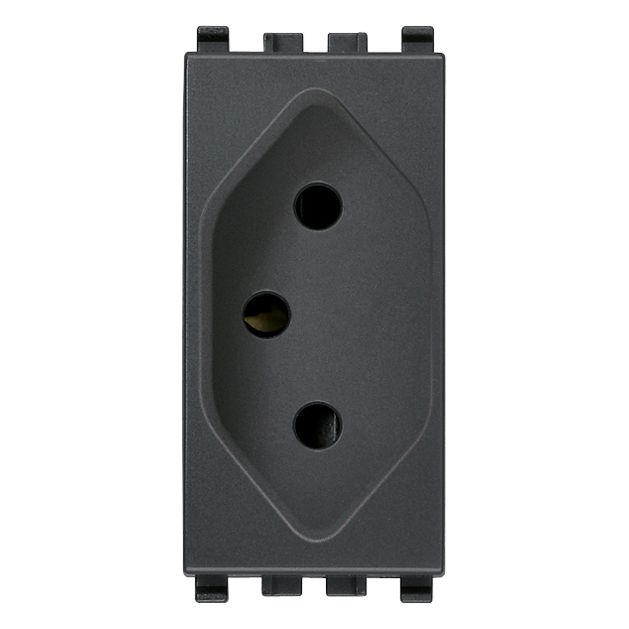

• VM20264: Grey. This finish blends more easily into darker panels and technical-looking interior spaces.

Installation and fit

This device is intended for flush mounting in a fixed AC installation and does not include an on/off switch or loop-through function. It fits projects where a single Brazilian-standard receptacle is needed within an existing Eikon device layout.

On board, it makes sense in cabins, galleys, and navigation areas that stay dry and protected from spray. It is a good match for boats using Brazilian-standard plugs for interior appliances, chargers, and other AC loads within the 10 A rating.
