Vimar Eikon 3 RCA Socket Outlet, IP20, Screw Terminals, Flush Mount

Overview

The Vimar Eikon 3 RCA socket outlet is a 1-module flush-mounted insert with three RCA connections, screw terminals, and IP20 protection for protected interior spaces. It is intended for SELV/PELV signal circuits, so it belongs in low-voltage audio and video installations rather than mains wiring.

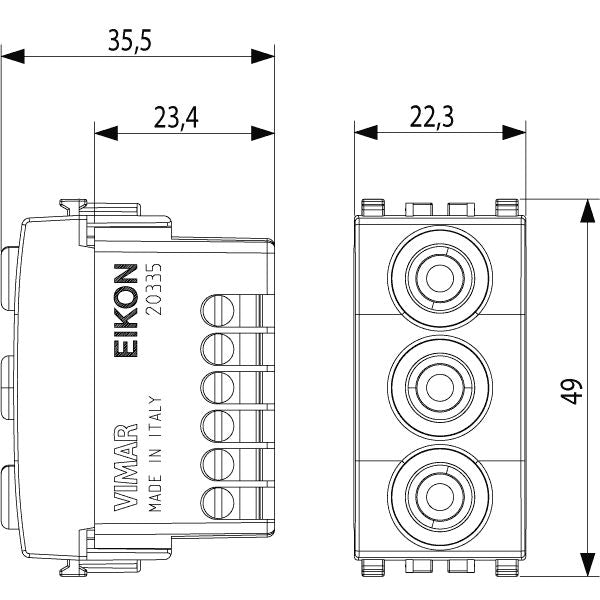

On board, this kind of outlet makes sense where analogue AV cabling needs a clean wall or panel connection inside the cabin, saloon, or another dry interior area. The body is plastic with thermoplastic construction, it is halogen-free, and the insert measures 22.30 mm wide, 49.00 mm high, and 35.50 mm deep.

Key features

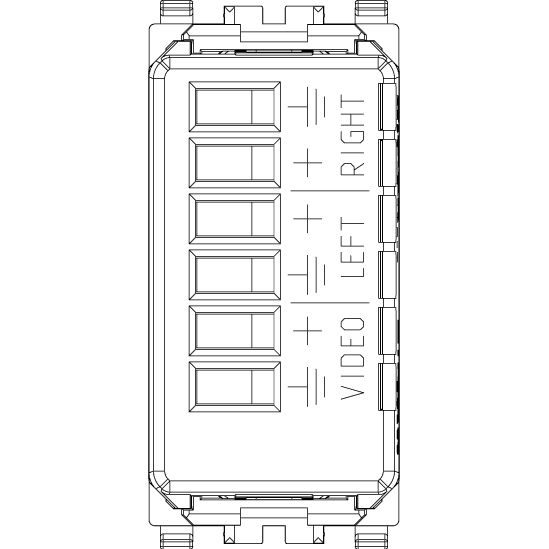

• Three RCA connections with screw terminals for fixed low-voltage signal wiring

• 1-module Eikon format for flush-mounted installations

• IP20 rating for interior locations kept away from spray and washdowns

• Thermoplastic plastic body that is halogen-free

• Compact dimensions of 22.30 x 49.00 x 35.50 mm

• Available in grey, white, and silver finishes to match surrounding Eikon trim

Variants

This product is offered in multiple finish options within the same Eikon 3 RCA outlet format.

Across the range, the connection layout, screw-terminal wiring, 1-module size, flush-mounted installation, IP20 protection, and overall dimensions stay the same. What changes between variants is the visible finish and color, including the RAL reference and surface treatment.

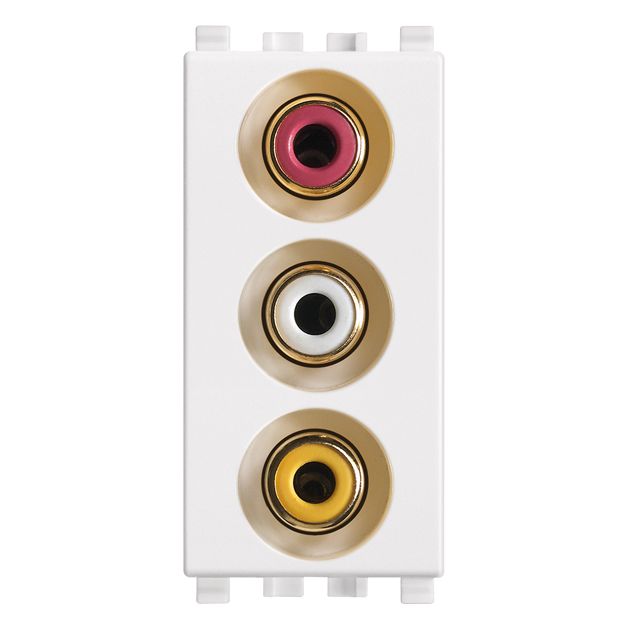

• VM20335.B: Color White. This version has a matt white finish with a RAL 9016 reference and suits light interior panels and switch surrounds.

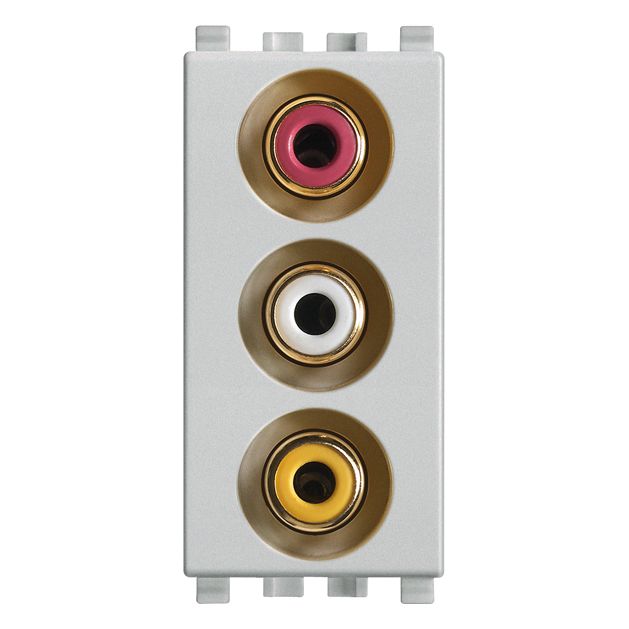

• VM20335.N: Color Silver. This version is the Eikon Next finish in silver, with a matt face, a RAL 9022 reference, and a lacquered surface.

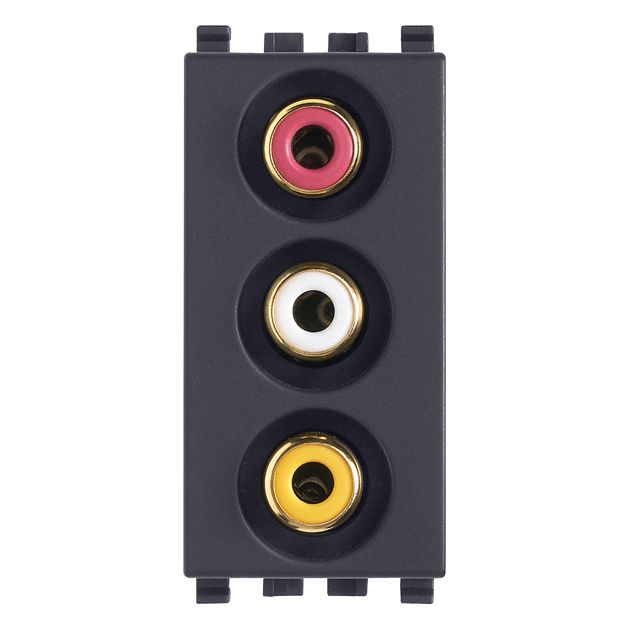

• VM20335: Color Grey. This version has a matt grey finish with a RAL 7024 reference and works well with darker interior trim and console panels.

Installation and fit

This is a flush-mounted insert for a compatible Eikon modular assembly. It does not include a support ring, dust cover, hinged lid, or strain relief, so it is better suited to protected interior joinery and control panels than exposed deck or cockpit locations. For refit work, it is worth checking the existing frame, cover plate, and module layout before ordering so the insert matches the rest of the switchgear on board.

Use on board

This outlet is a good match for boats that still route composite video or analogue audio through a cabin entertainment point, media locker, or interior helm panel. It also fits clean custom installations where the boat already uses Vimar Eikon hardware and the goal is to keep RCA terminations accessible without leaving loose patch leads hanging out of the panel.
