Imtra Sigma Recessed LED Downlight, 10-40V AC/DC, IP65, Warm White

Overview

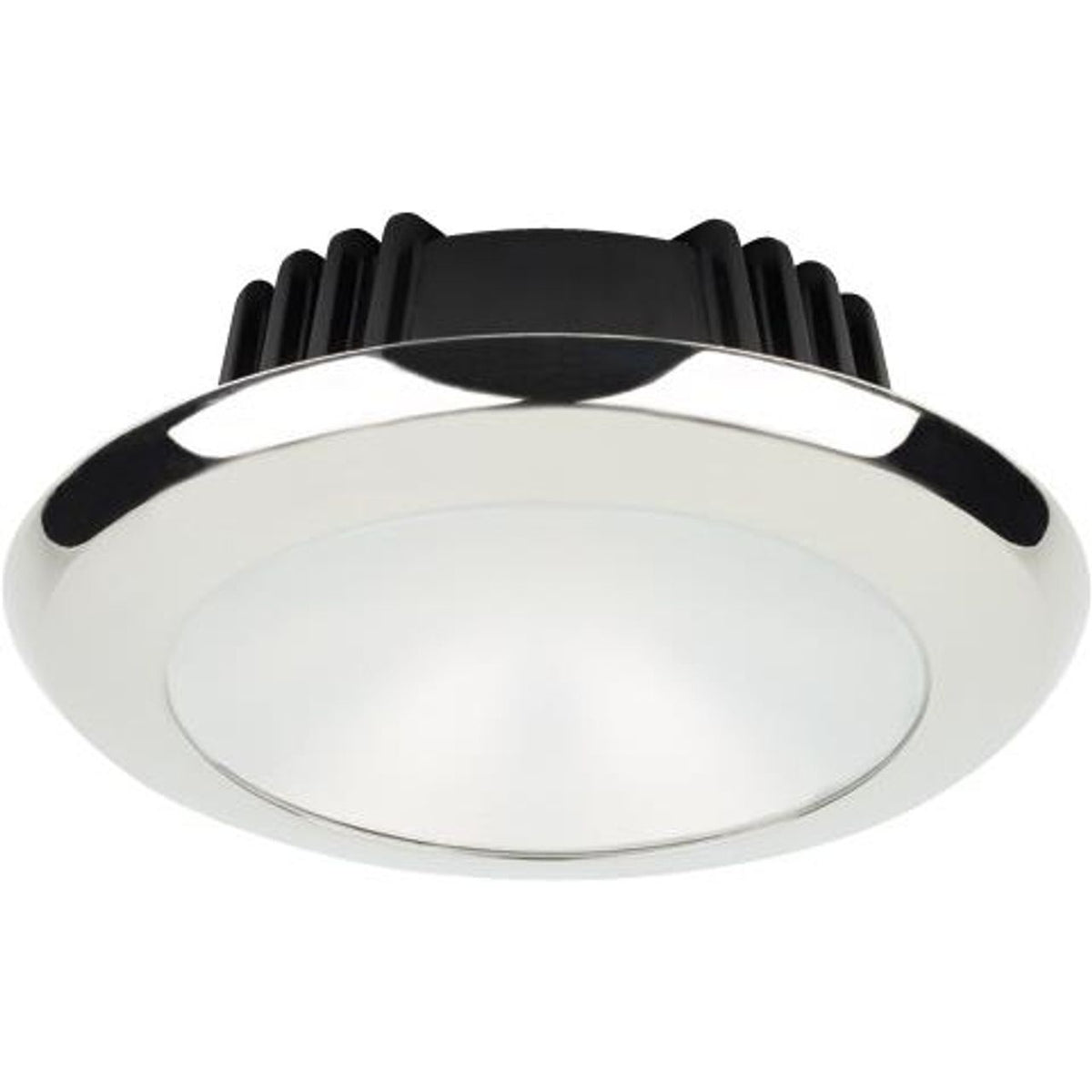

The Imtra ILIM32100 is a Sigma recessed PowerLED downlight for marine ceiling installations, featuring a stainless steel trim ring and warm white illumination. Operating on 10-40V AC/DC power, it produces 197 lumens at a 2900K color temperature with 5W power consumption. Its IP65 rating supports installation in areas exposed to moisture.

The fixture combines an acrylic polymer lens with an E-coated aluminum housing and an integrated LED driver. Its 83-degree beam provides broad illumination, while the recessed design accommodates both spring mounting in interior ceiling panels and screw mounting in harder surfaces. Two-wire dimming capability also supports integration with compatible DC lighting controls.

Key features

• 10-40V AC/DC input supports 12V, 24V, and 32V electrical systems.

• Warm white LED output of 197 lumens at 2900K.

• 5W power consumption with an 83-degree beam angle.

• IP65 ingress protection for moisture-exposed installations.

• Stainless steel trim ring with an acrylic polymer lens.

• 2.56-inch ceiling cutout and 0.90-inch recessed depth.

• Spring or screw mounting accommodates different ceiling constructions.

• Two-wire dimming with compatible DC dimmer controls.

Installation and mounting

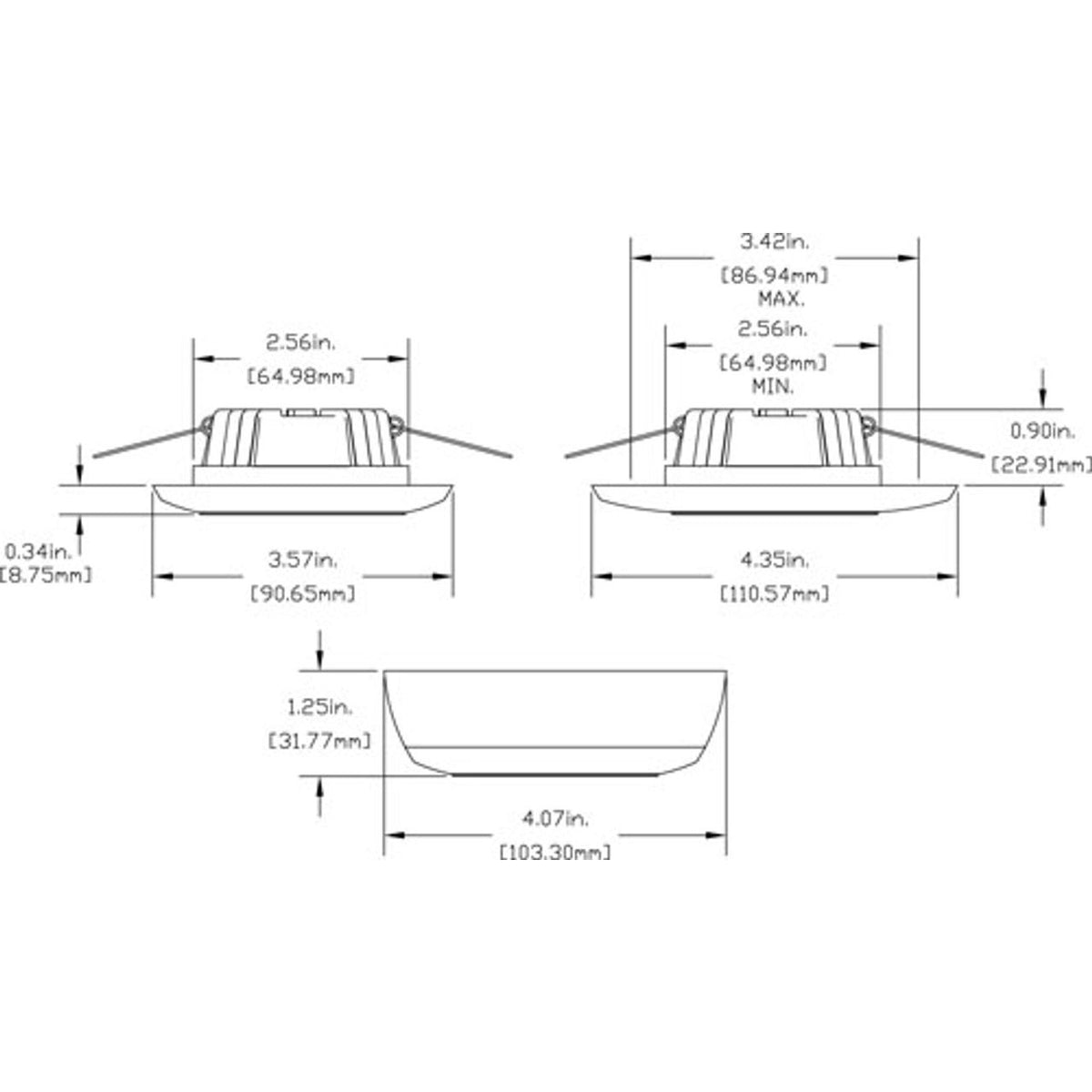

The Sigma downlight uses a 2.56-inch diameter cutout and has a 3.57-inch diameter trim ring. Spring mounting accommodates headliner-wrapped or paneled interior ceilings, while screw mounting provides a more secure attachment to rigid surfaces such as fiberglass or wood. The mounting method should match the ceiling construction and installation environment.

Electrical and dimming compatibility

The universal input accepts AC or DC power within its specified voltage range, including power supplied through a compatible magnetic AC transformer. Dimming operates through the existing two-wire DC circuit with a compatible dimmer, including supported Intervolt DC controls. AC-powered operation does not support dimming, so the intended power source and control method should be confirmed before installation.
