Vimar Eikon Mounting Frame, 1M, Claws, 60 mm Round Box, Flush-Mount

Overview

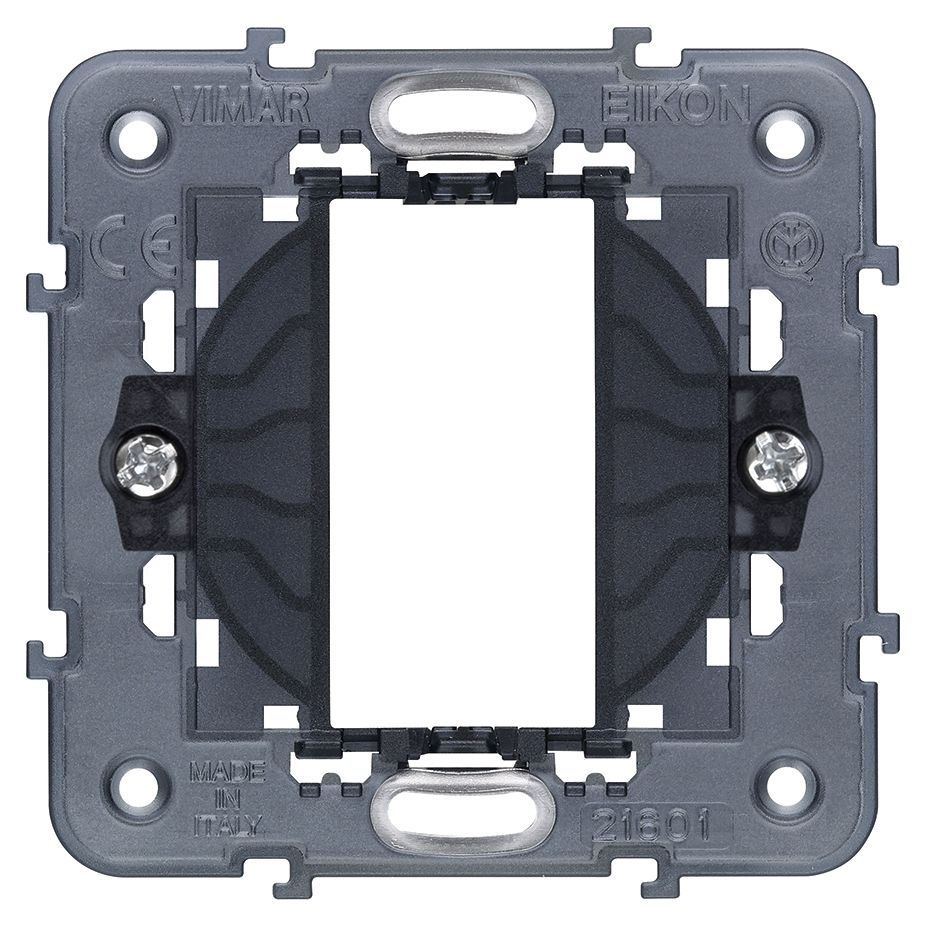

The Vimar VM21601.0 is a 1-module mounting frame with claws for Ø 60 mm round flush-mount boxes, used to fit Vimar Eikon inserts cleanly into a wall or panel cutout.

It supports the same single module position in both horizontal and vertical orientations, with the module insert mounted from the front for straightforward wiring and service access. This version is supplied without side blank covers, keeping the layout focused on one 1M device position.

On boats, this type of frame is most commonly used behind interior switch and outlet locations where you want a neat, flush look and a secure mechanical hold that stands up to vibration when the junction box is properly anchored.

Key features

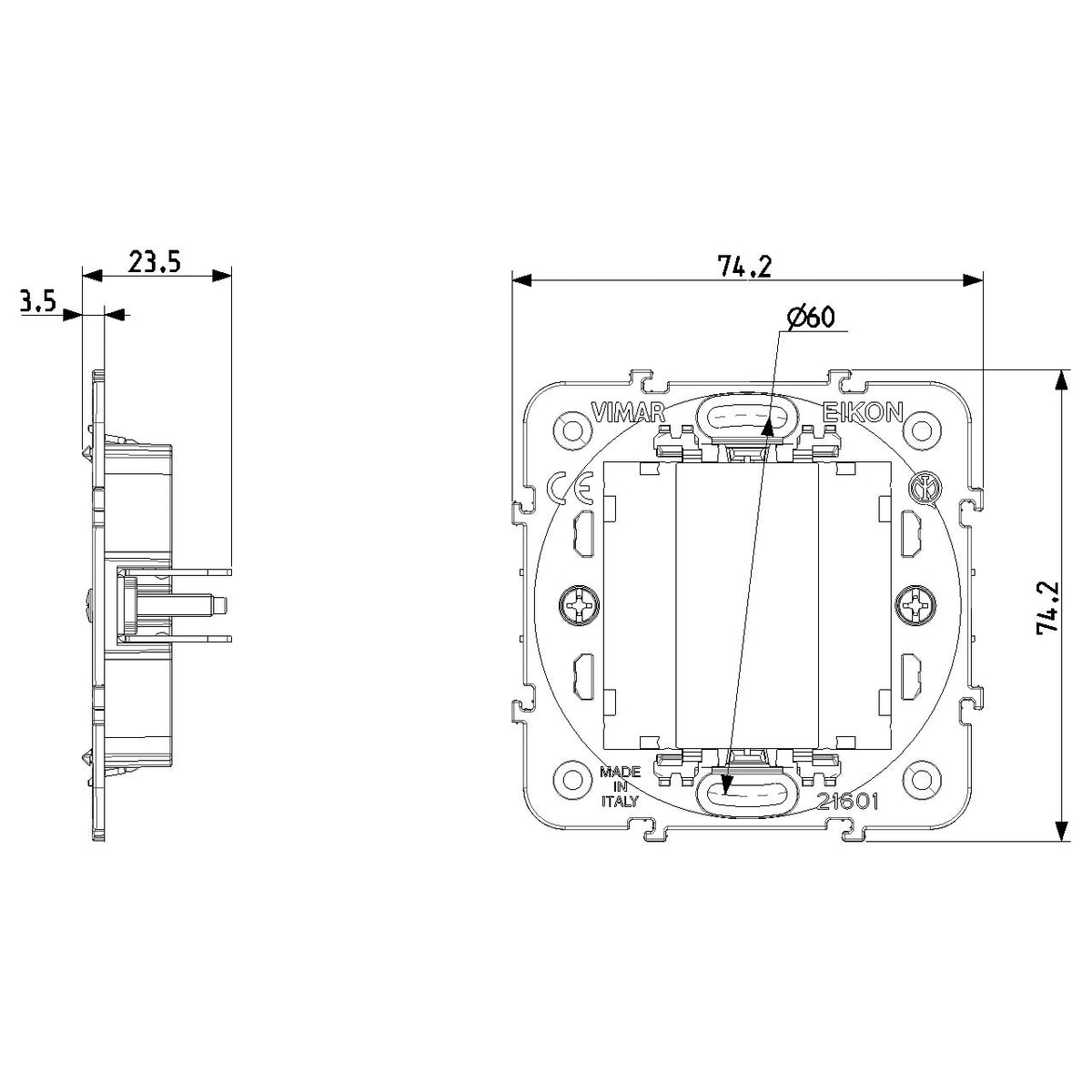

• 1-module frame with claws for Ø 60 mm round flush-mount boxes
• Accepts horizontal or vertical installation while keeping a single 1M device position
• Front-side module mounting for easier access during wiring and future servicing
• Screw-fixing style installation; mounting screws are not supplied
• Thermoplastic construction with an untreated surface finish
• Not intended for floor boxes, wall ducts, or DIN rail mounting

Compatibility and fit

This frame is for Vimar Eikon installations that use a round Ø 60 mm flush-mount box. It is meant to hold one modular insert position and does not include side blanking pieces, so it suits layouts where you are finishing a single device location rather than filling a wider opening.

The mounting box is not included. For marine refits, it is worth confirming the box type and depth behind the panel before ordering, especially in tight bulkheads or cabinetry where wiring bend radius can be the limiting factor.

Installation and setup

Mount the frame to the flush box using the appropriate fixing points for the box style, then align the frame for the desired horizontal or vertical orientation before tightening. Once the frame is secure, the module insert mounts from the front, which keeps the workflow simple when you are working in confined spaces.

On board, clean cable routing and strain relief matter as much as the fasteners. Leave enough slack to service the device later, and make sure the box is firmly fixed to the panel so vibration does not work the installation loose over time.

Use on board

This is a good match for boats already fitted with Vimar Eikon devices, or new builds using Ø 60 mm round flush boxes where you want a consistent finish across cabins, saloons, and navigation areas. Because it is a mounting frame rather than a sealed enclosure, it is typically used in interior locations or protected panels rather than exposed washdown areas.
