Attwood Marine LightArmor LED Deck Mount Navigation Lights, 2NM, 12V, IP67, Black Composite

Overview

The Attwood Marine LightArmor is a round deck-mounted LED navigation light range for 12V boat electrical systems. These black composite lights are made for port, starboard, or bi-color bow navigation layouts, with 2 nautical mile visibility for boats up to 65.6 ft or 20 m.

The LightArmor layout keeps the footprint low on the deck while giving clear red and green navigation output where it matters during low-light running, harbor approaches, and night operation. The LED light engine is rated for 50,000+ hours, runs cool to the touch, and uses color-indicated cores to make port and starboard placement easier during installation.

With IP67 water resistance, corrosion-resistant construction, and USCG 2 NM certification, this range suits exposed deck locations where the light may see spray, rain, washdowns, UV, and vibration.

Key features

• 2 nautical mile navigation visibility for vessels up to 65.6 ft or 20 m.
• 12V LED light engine with long service life rated at 50,000+ hours.
• Black composite housing for a clean deck appearance and corrosion resistance in marine environments.
• IP67 water resistance for exposed deck mounting, spray, rain, and washdown conditions.
• USCG 2 NM certified and built to meet current navigation light requirements, including EN/ISO 19009:2015.
• Color-indicated cores help reduce confusion when matching red port and green starboard positions.
• Round deck-mount format works well on bow decks and side locations where a low-profile navigation light is needed.

Variants

This LightArmor range is offered in three navigation light configurations for common bow, port, and starboard layouts.

The main differences are the light configuration and navigation color. The black composite round deck-mount housing, LED light engine, 12V input, and 2 NM visibility remain consistent across the range.

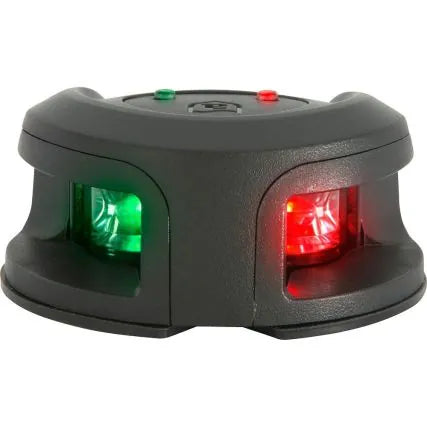

• NV2002PB-7: Bi-color configuration with red/green light output. This version combines port and starboard colors in one deck-mounted unit for a bow navigation light position.

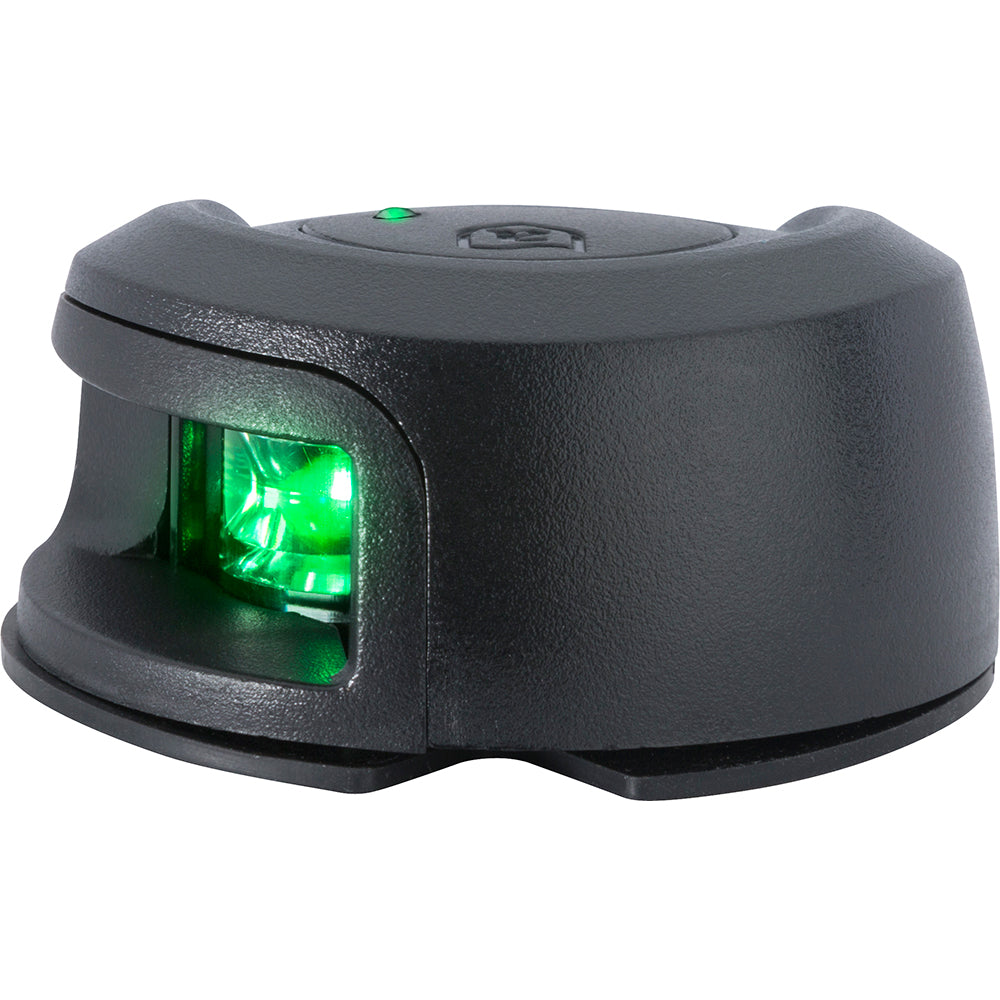

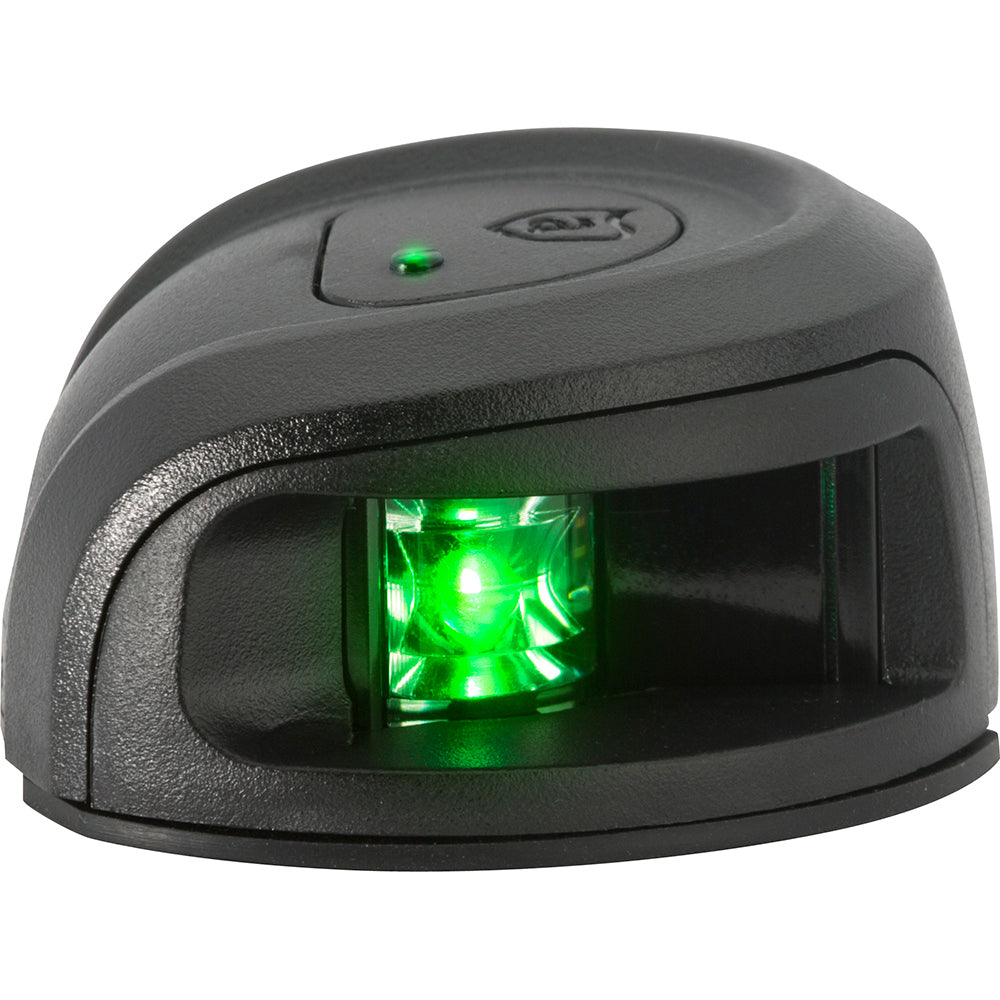

• NV2012PBG-7: Sidelight configuration with green light output for starboard use. The green core helps identify the correct side during installation and service checks.

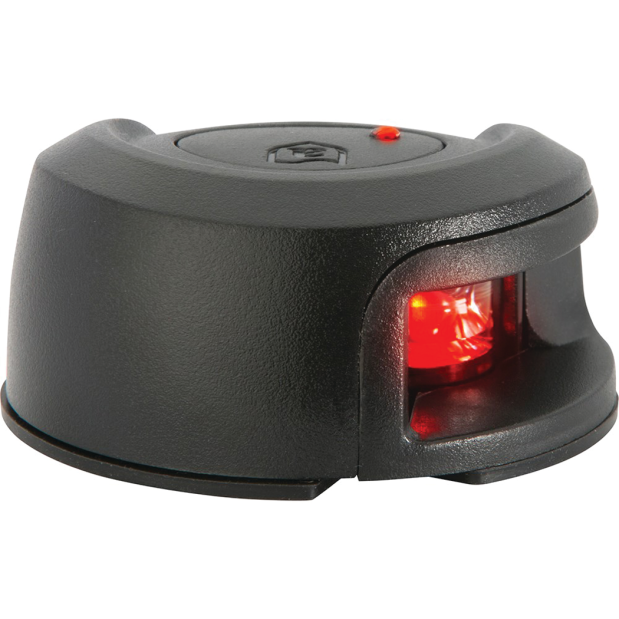

• NV2012PBR-7: Sidelight configuration with red light output for port use. This version matches the port-side navigation color while keeping the same black deck-mounted look as the starboard unit.

Installation and setup

These lights are intended for horizontal deck mounting where the lens has a clear, unobstructed view. Before drilling, confirm that the mounting position gives the required visibility arc and does not place the lens behind rails, anchors, cleats, canvas, trolling motor brackets, or other deck hardware.

Wire the light into a 12V navigation light circuit using marine-grade connections and proper circuit protection for the vessel. In exposed bow and side locations, sealed heat-shrink terminals and clean cable routing help protect the electrical connection from spray and vibration.

Compatibility and fit

This range is a good match for boat owners replacing or building a 12V LED navigation light setup where a black composite deck light is preferred over a stainless look. The bi-color version suits a combined bow light layout, while the individual red and green sidelights suit installations where port and starboard lights are mounted separately.

These are navigation lights, not anchor lights or all-round white lights. They should be used as part of a complete navigation lighting plan that matches the boat length, mounting position, and applicable running-light requirements.
