Lopolight LED Starboard Navigation Light, 2NM, 10-32VDC, IP68

Overview

This Lopolight LED Starboard Navigation Light is a green sidelight with a 112.5° horizontal illumination arc and a 2 nautical mile visibility range. It operates on 10-32VDC, draws 1.4W, and features an IP68-rated enclosure for marine installations.

The fixture uses a horizontal mounting configuration with an FB (flat base) POM mounting system. Its anodized aluminum housing, PMMA lens, and A4 stainless steel fasteners are suited to exposed navigation light installations. Silver and black housing finishes are available, while both versions maintain the same green light output and navigation function.

Key features

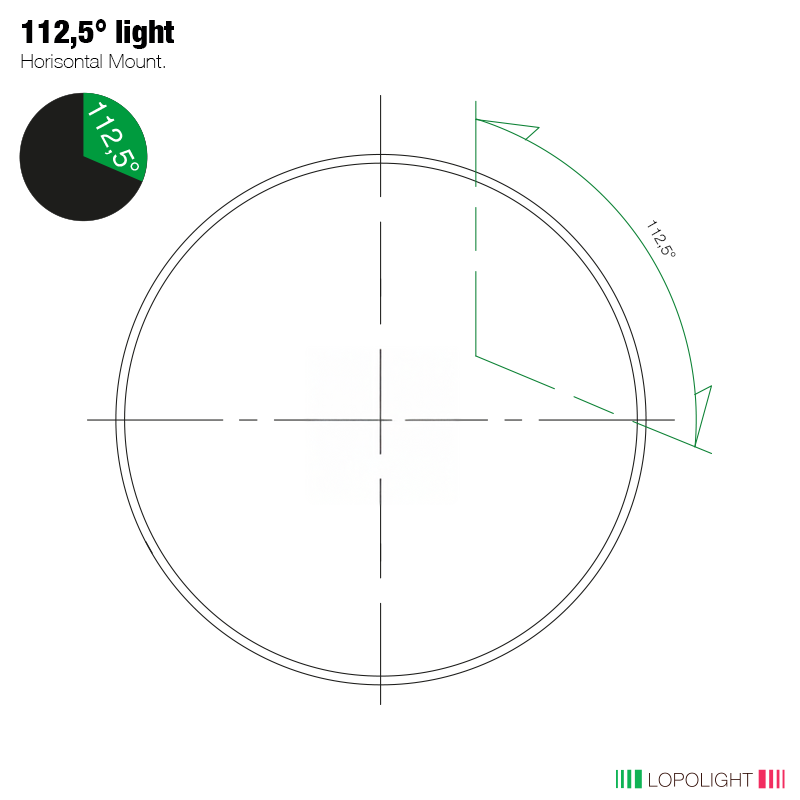

• Green LED starboard sidelight with a 112.5° horizontal illumination arc and 2 nautical mile visibility.

• 10-32VDC operating range with 1.4W power consumption.

• IP68 protection against dust and water ingress.

• FB flat-base POM mounting system for horizontal installation.

• Anodized aluminum housing with a PMMA lens and A4 stainless steel fasteners.

• Operating temperature range of -25°C to +55°C.

• Compliance and approvals include COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR.

Variants

This navigation light is available in two housing finishes, allowing the exterior appearance to match the vessel's existing hardware and fittings.

The finish is the primary configuration difference. Both versions retain the green 112.5° starboard light, 2NM visibility, 10-32VDC operating range, IP68 rating, and horizontal flat-base mounting system.

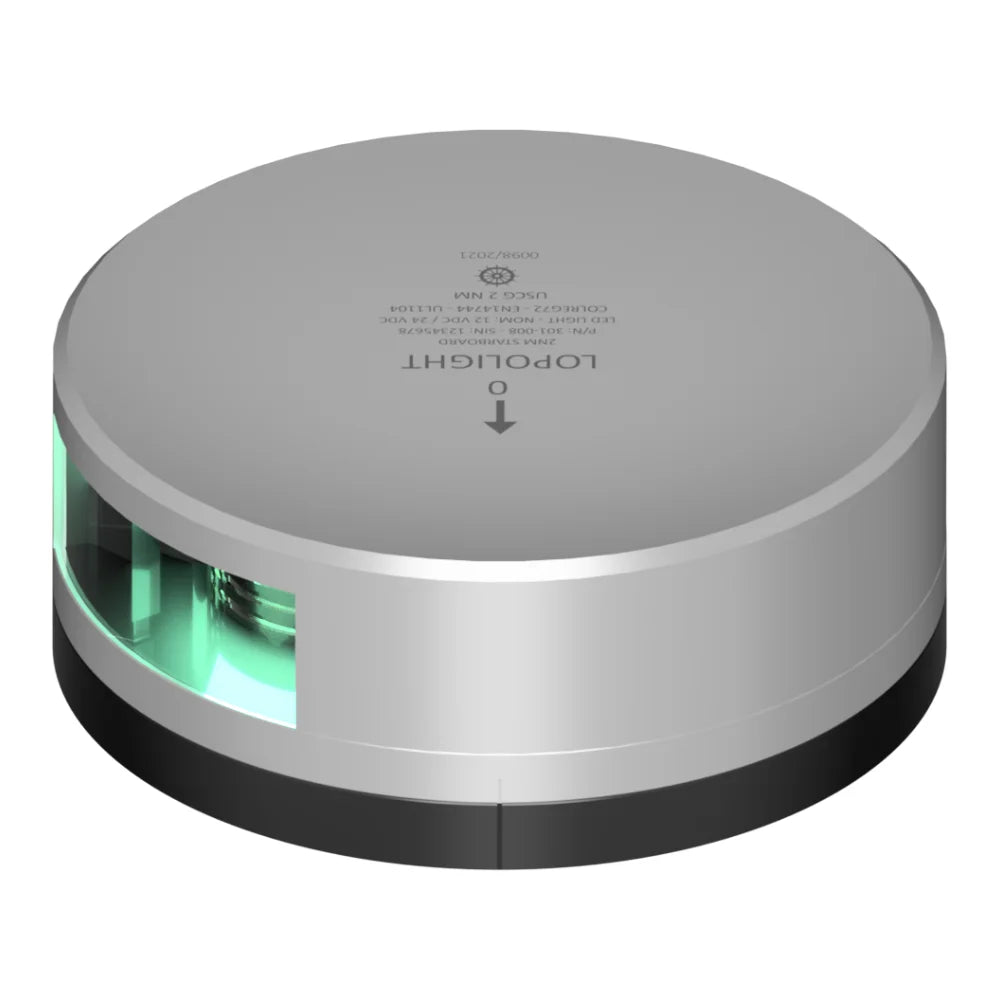

• 301-008-FB 6M - Silver Finish: Silver anodized aluminum housing with a 6 m cable connection and FB flat-base mounting system.

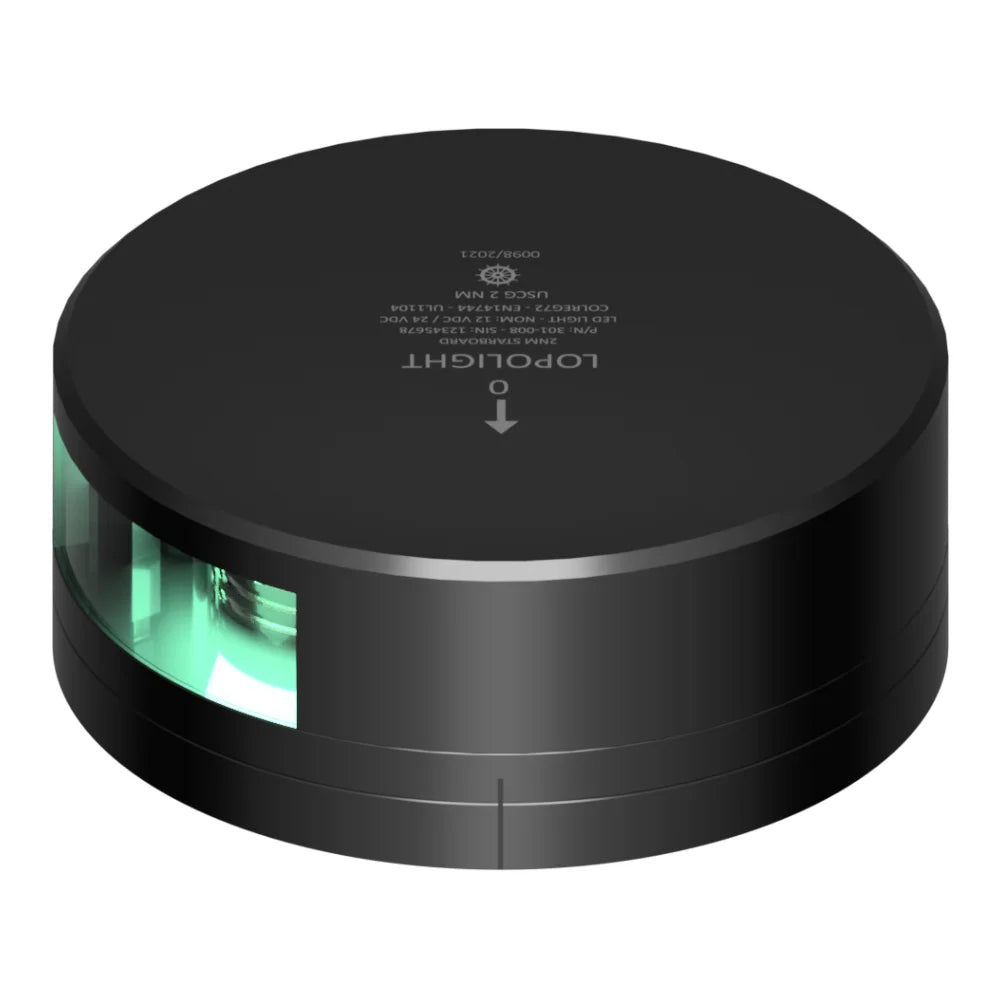

• 301-008-FB-B 6M - Black Finish: Black housing finish with FB flat-base mounting. Cable connection details should be confirmed for this configuration.

Installation and electrical integration

The FB mounting system positions the navigation light horizontally on a suitable flat mounting surface. The green light must be oriented to provide the required starboard visibility sector without obstruction.

The 10-32VDC input supports integration with compatible 12V and 24V DC electrical systems. The fixture's low power draw makes it suitable for installations where electrical consumption is an important consideration.

What's included

• 1 LED starboard navigation light with prewired cable.

• Installation guide.
