Imtra Blade PowerLED Downlight, 10-40VDC, IP65, Polished SS, Neutral White

Overview

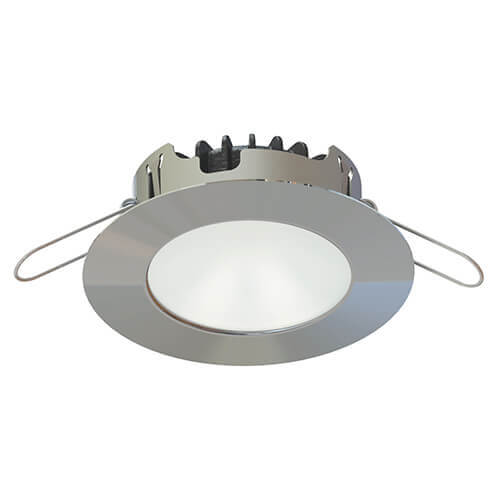

The Imtra ILIM59201 is a Blade PowerLED recessed marine LED downlight with neutral white illumination and an ultra-flat, polished stainless steel bezel. Operating on 10-40VDC with 4.7W power consumption, it delivers a 90-degree beam for overhead lighting in marine interiors. Its IP65 rating protects the exposed front of the fixture against dust and water jets.

The downlight features integrated drive electronics, eliminating the need for a separate remote driver. Its two-wire power connection supports dimming through compatible Imtra PowerLED PWM controllers, making it suitable for new installations or replacing existing recessed halogen fixtures where the mounting dimensions are compatible.

Key features

• 10-40VDC input with 4.7W power consumption.

• Neutral white LED illumination with a 90-degree beam angle.

• Ultra-flat polished stainless steel bezel measuring 3.63 in (92mm) in diameter.

• IP65 protection against frontal dust and water exposure.

• Integrated current-controlled LED driver with two-wire power and dimming capability.

• Spring-clip mounting without exposed installation screws.

• Compatible with Imtra PowerLED PWM dimming controllers.

• Rated LED operating life of 50,000 hours.

Installation and setup

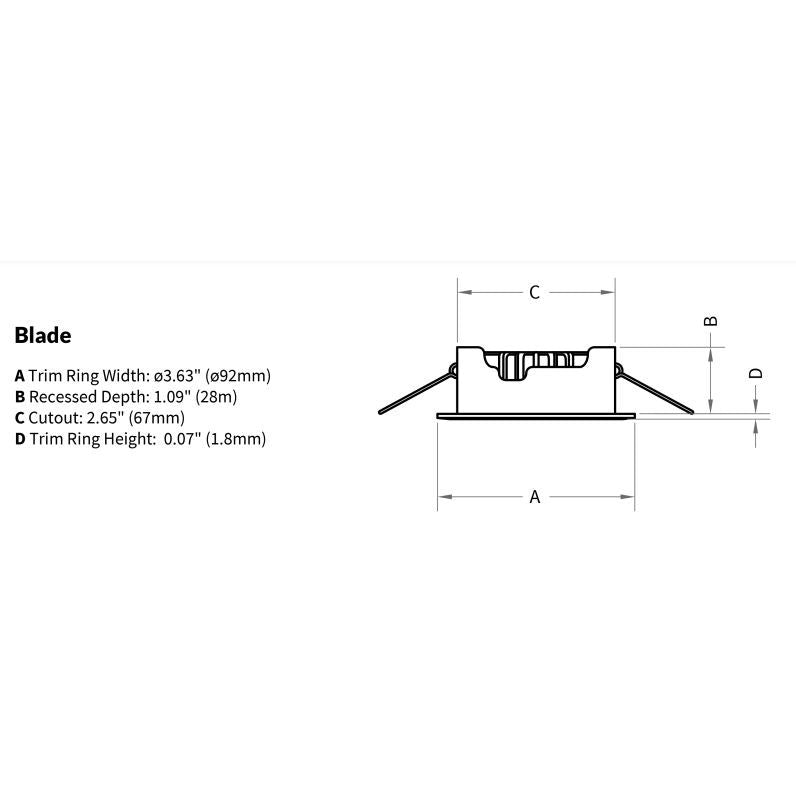

The Blade PowerLED installs into a 2.65-inch (67mm) diameter ceiling cutout using self-adjusting stainless steel mounting springs. The fixture has a recessed depth of 1.09 inches (28mm), with a recommended minimum installation depth of 1.59 inches (40mm) to allow cooling clearance.

The rear of the fixture must remain protected from water exposure, as the IP65 rating applies only to the exposed front surface. For adjustable brightness, connect the downlight to a compatible Imtra PWM dimming controller using the specified two-wire electrical arrangement.
