Lopolight 180° White LED Navigation Light, 2nm, 10-32VDC, IP68

Overview

This Lopolight 180° white LED navigation light is a single-light fixture with a 2 nautical mile visibility range, intended for horizontal mounting on marine vessels. Operating on 10-32V DC, it features an IP68-rated aluminum housing, a plug connector, and a white light output with an intensity greater than 5.4 candela.

The fixture measures 92.5 mm in diameter and 74.5 mm in height, with a PMMA lens and A4 stainless steel screws. Its aluminum base is available in silver or black anodized finishes, allowing the exterior appearance to match different vessel installations without changing the light's electrical or optical specifications.

Key features

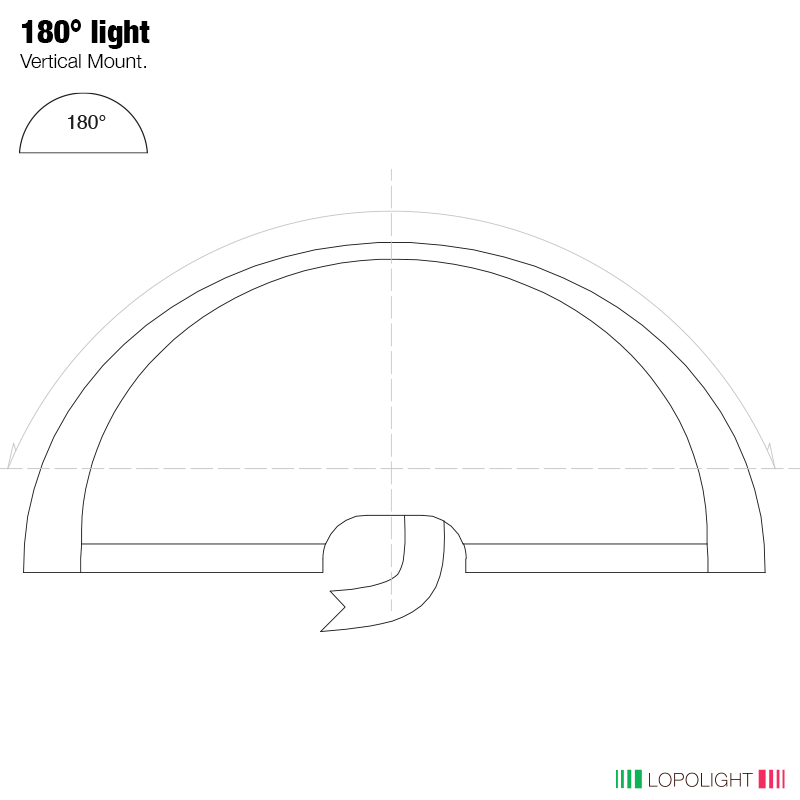

• White LED navigation light with 180° visibility coverage and a 2 nautical mile range.

• 10-32V DC operating range, compatible with 12V and 24V marine electrical systems.

• IP68-rated construction with an aluminum housing and PMMA lens.

• Light intensity greater than 5.4 candela.

• Current consumption of 167 mA at 12V DC and 110 mA at 24V DC.

• Overall dimensions of 92.5 mm diameter x 74.5 mm height (approximately 3.6 x 2.9 inches).

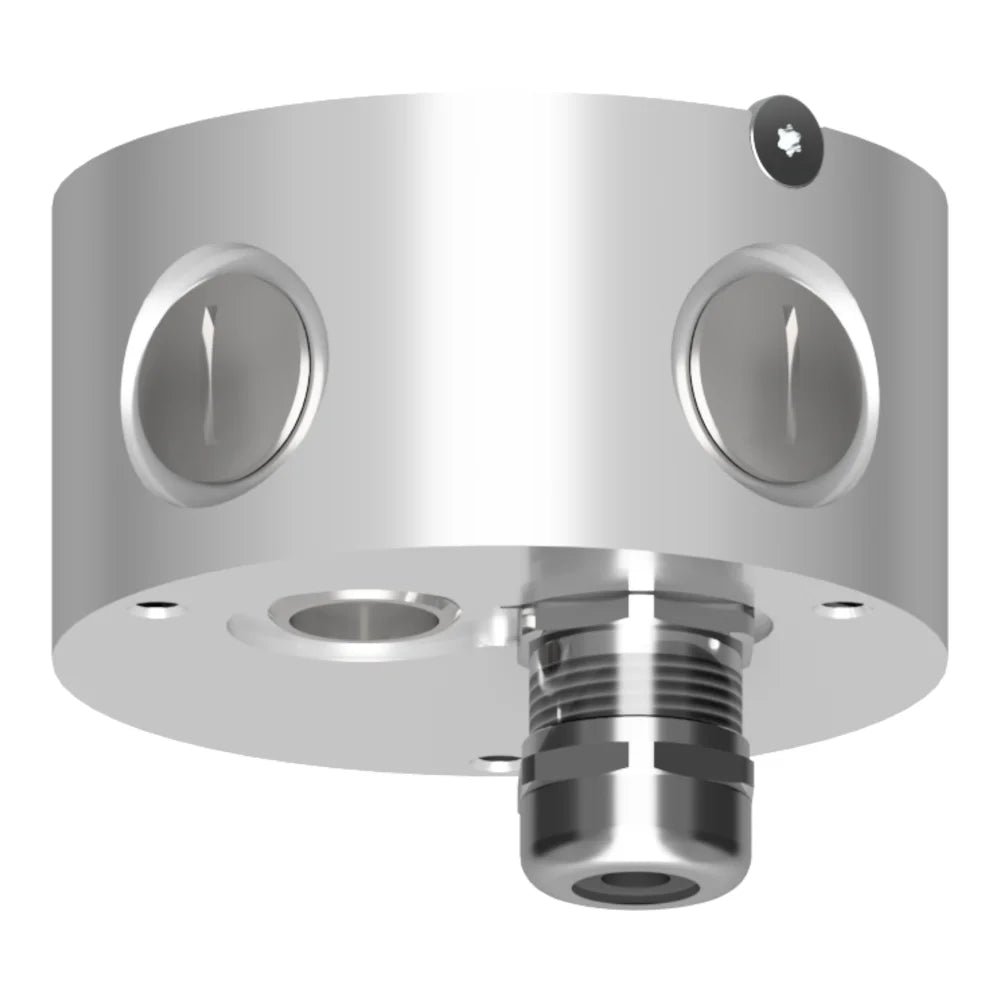

• Horizontal mounting configuration with a plug connector.

• Operating temperature range of -25°C to 55°C.

• DNV certified, with approvals and standards including COLREG 72, EN 14744, IEC 60945, USCG, ABS, and MED.

Variants

This navigation light is available in two exterior finish configurations, each retaining the same white LED output, 180° light coverage, 2nm visibility, operating voltage, and mounting arrangement.

The variants differ in the anodized finish of the aluminum housing and base. Both configurations include a plug connector and maintain the same IP68 protection rating.

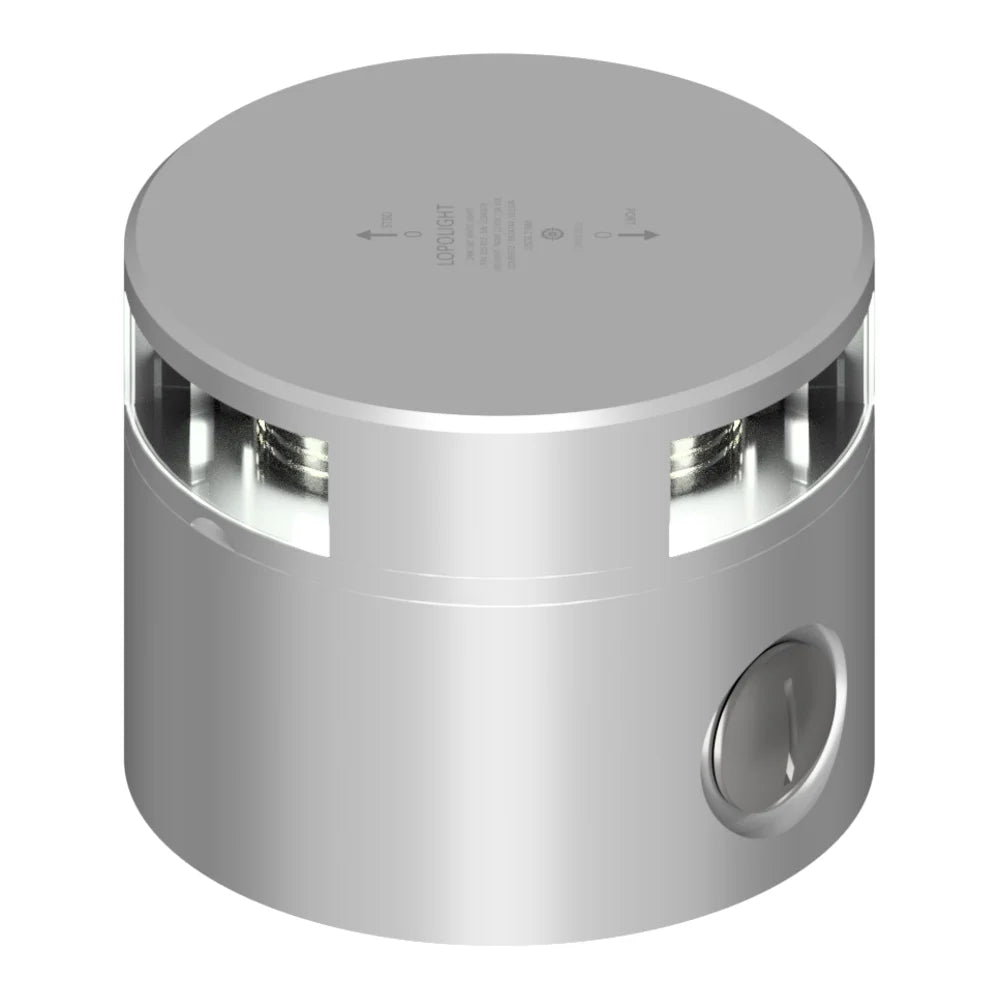

• 201-012-180-CSCD: Silver finish. Silver anodized aluminum housing and base for installations requiring a metallic exterior appearance.

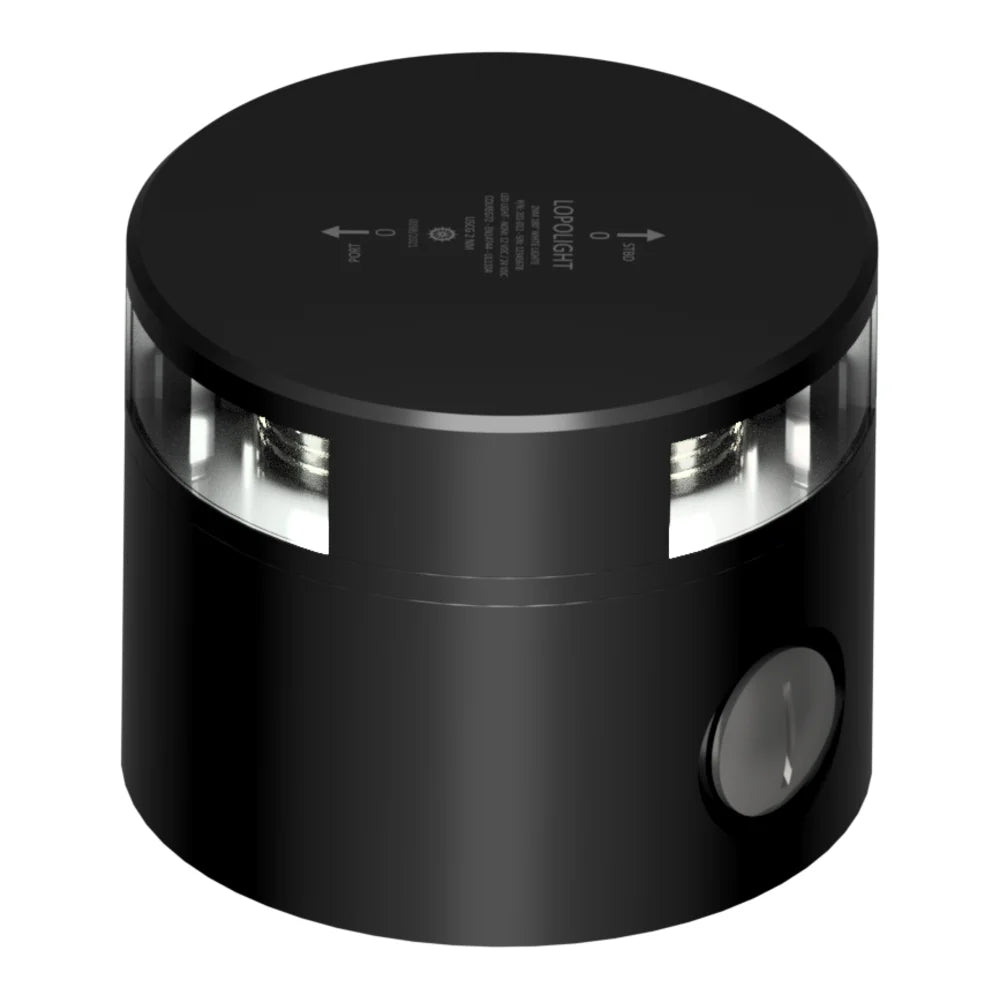

• 201-012-B-180-CSCD: Black finish. Black anodized aluminum housing and base for installations requiring a dark exterior appearance.

Installation and electrical integration

The fixture is configured for horizontal mounting and uses a plug connector for electrical connection. Its 10-32V DC operating range supports common onboard 12V and 24V electrical systems. The installation location must accommodate the fixture's 92.5 mm diameter and 74.5 mm height while maintaining the specified 180° light coverage.

What's included

• 1 LED navigation light with aluminum base and plug connector.

• Installation guide.
